Products Description
Nitrogen atmosphere furnace also known as oxygen-free annealing furnace, vacuum atmosphere sintering furnace, etc., is a method of sintering objects in a furnace chamber into which a certain gas is introduced.
Choosing the right atmosphere for sintering different materials will help the sintering process, improve the degree of product densification, and obtain products with good performance. Nitrogen atmosphere furnace commonly use various atmospheres such as vacuum, hydrogen, oxygen, nitrogen, and inert gases (such as argon). For example, transparent alumina ceramics can be sintered in a hydrogen atmosphere, transparent ferroelectric ceramics are suitable for sintering in an oxygen atmosphere, and nitride ceramics such as aluminum nitride are suitable for sintering in a nitrogen atmosphere. Sometimes, in order to protect the sintering coordination, it is also necessary to operate in a protective atmosphere.
Technical parameters
Nitrogen atmosphere furnace
| Model | SA2-2-14TP | SA2-4-14TP | SA2-9-14TP | SA2-16-14TP |
|
Max.design(℃) |
1400 | 1400 | 1400 | 1400 |
|
Internal dimensions: D x W x H (mm) |
100*100*100 | 200*150*150 | 300*200*200 | 400*300*300 |
| Power(KW) | 2KW | 4KW | 9KW | 16KW |
| Voltage(V) | 220V 1P | 220V 1P | 220V 1P | 380V 2P |
| Volume (litres) | 1 | 4.5 | 12 | 16 |
|
External dimensions: Dx W x H (mm) |
490*547*769 | 630*605*900 | 740*645*980 | 875*805*1110 |
| Thermocouple type | S | |||
| Max.vacuum | -0.1Mpa | |||
| Heating rate | 0-10C/min | |||
| Heating element | High quality Sic heater | |||
| Temp.Precision | ±1℃ | |||
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
| Temperature controller | Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling | |||
| Atmosphere | Various inert gases such as oxygen, carbon monoxide, nitrogen, argon, etc. | |||
| Gas Control | The air inlet can be equipped with one or more air inlets, each of which is equipped with a ball valve and connected to a vacuum gauge. The air outlet is connected to an outlet hole, and all holes are equipped with ball valves. The maximum positive pressure in the furnace does not exceed 0.02Mpa | |||
| Vacuum system | Single-stage rotary vane pump Maximum limit 5Pa Optional double-stage rotary vane pump |
|||
| Sealing method | The furnace door adopts the overall surface grinding and milling, and the silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | |||
|
Standard Accessories vacuum pump|Spare heating element|Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
| Optional:
Different chamber size for your choose; 50 segment program for choose LCD touch screen control for choose RS485/USB port to connect computer for choose. Working temeprature,Max.vacuum for choose |
||||
Product details

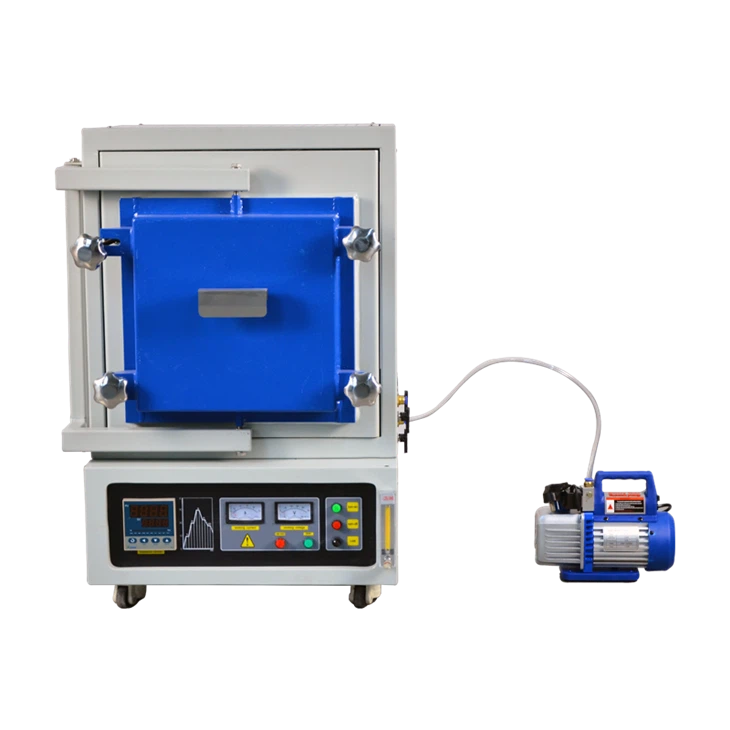

Nitrogen atmosphere furnace
The hand wheel nut rotates, the furnace door seals more firmly
High quality heating element with polycrystalline insulation chamber furnace
Equipped with vacuum port, air inlet, pressure regulating valve, pressure gauge and other configurations to achieve multi-function
LCD highly intelligent instrument,30-segment program with PID control
Product Application
Be used in a wide range of Nitrogen atmosphere furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
