Products Description
Programmable muffle furnace is a high-performance heat treatment electric furnace. Programmable muffle furnace uses a human-machine color touch screen interface, which can better and more intuitively observe the process curve, and can export and transfer data to the computer,the furnace shell adopts a double-layer air-cooled structure with a low surface temperature. Multiple process curves can be set to meet the customer's various processes. It is the best choice for university laboratories and scientific research institutions.
Technical parameters
Programmable muffle furnace
| Model | SX2-2-17TP | SX2-4-17TP | SX2-9-17TP | SX2-16-17TP |
|
Max.design(℃) |
1700 | 1700 | 1700 | 1700 |
|
Internal dimensions: D x W x H (mm) |
100*100*100 | 200*150*150 | 300*200*200 | 400*300*300 |
| Power(KW) | 2KW | 4KW | 9KW | 16KW |
| Voltage(V) | 220V 1P | 220V 1P | 380V 2P | 380V 2P |
| Volume (litres) | 1 | 4.5 | 12 | 16 |
|
External dimensions: Dx W x H (mm) |
425*320*568 | 570*470*815 | 670*530*906.2 | 770*620*1055 |
| Thermocouple type | B | |||
| Heating rate | 0-10C/min | |||
| Temp.Precision | ±1℃ | |||
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
| Temperature controller | Intelligent touch screen temperature controller,Multiple process programs can be set,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling | |||
|
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
| Optional:
Different chamber size for your choose; 50 segment program for choose Chimney, door opening method, air intake hole, observation window, etc. are optional. |
||||
Product details

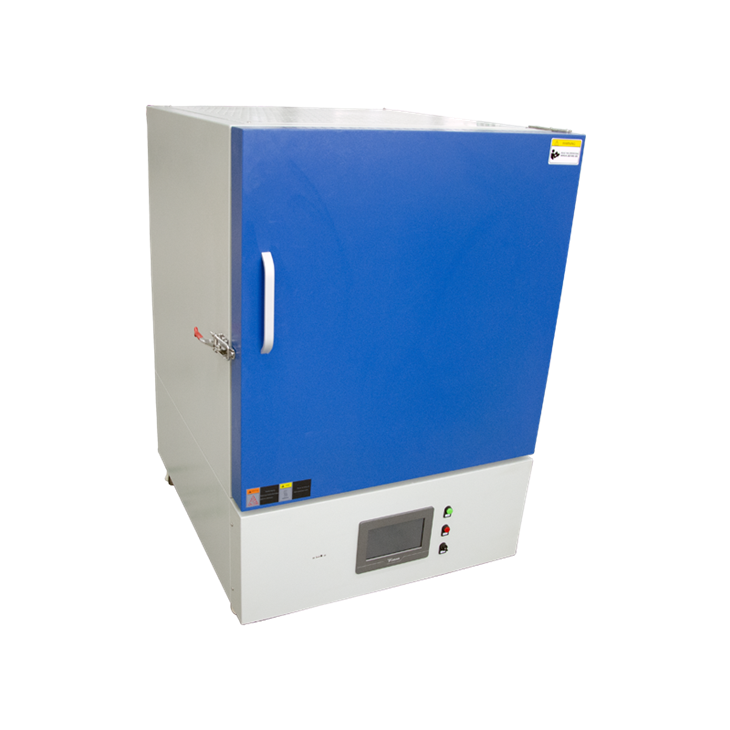

Programmable muffle furnace
Spring-type door handle lock, easy to open and close
High quality heating element with polycrystalline insulation chamber furnace
High quality heat resistant fire blocking bricks
touch screen highly intelligent instrument,10 curves 30 segment program with PID control
Product Application
Be used in a wide range of Programmable muffle furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
