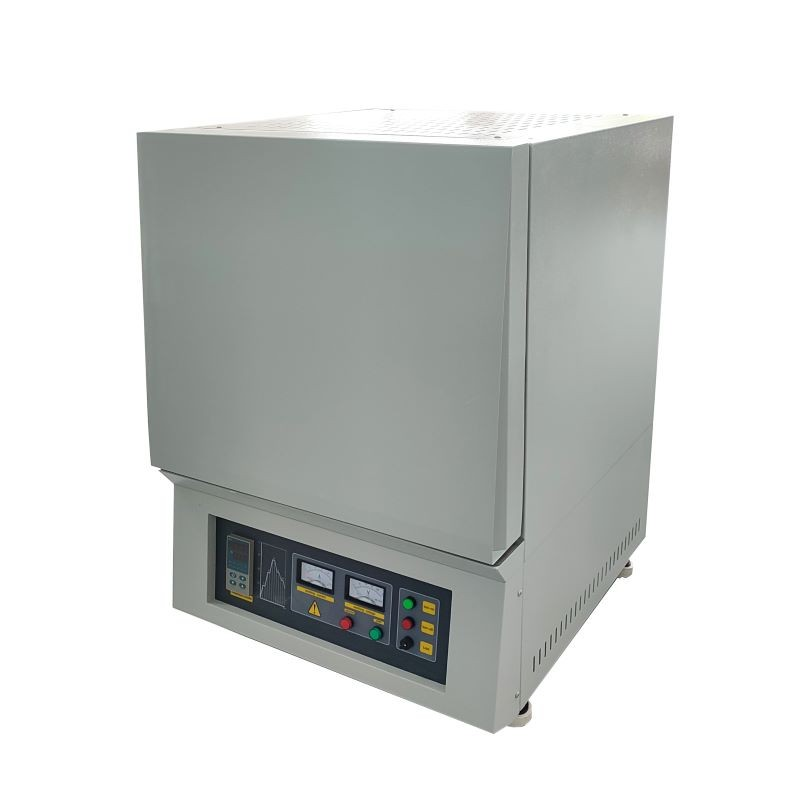

Benchtop furnace is high temperature laboratory furnace,it uses double carbon steel layer shell. The electric furnace consists of high purity alumina polycrystalline fiber brick and high quality heating element. This furnace equips with air cooling system, which makes temperature cool and rise quickly. 1200℃lab furnace is an ideal tool for materials annealing and sintering , composition analysis, quality testing, ashing in colleage lab, research institutes, etc.
Benchtop Furnace Feature
● Continuous temperature RT～1100℃
● The Upper door opening is more convenient to operate and saves space.
● 1200℃ High quality performance alumina ceramic fiber insulation materials.
●Temperature control accuracy ±1℃
|
Model |
SX2-1-12TPU |
SX2-2-12TPU |
SX2-3-12TPU |
SX2-6-12TPU |
SX2-9-12TPU |
|
Dimensions: Internal D x W x H (mm) |
100*100*100 |
200*150*150 |
300*200*120 |
300*200*200 |
400*300*300 |
|
Dimensions: External D x W x H (mm) |
425*320*568 |
570*470*715 |
670*530*731 |
670*530*811 |
770*620*940 |
|
Max.temperature(℃) |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Volume (litres) |
1 |
4.5 |
7.2 |
12 |
36 |
|
Power(KW) |
1 |
2 |
3 |
6 |
9 |
|
Voltage(V) |
220 1P |
220 1P |
220 1P |
220 1P |
380 3P |
|
Thermocouple type |
K |
||||
|
Temp.Precision |
±1℃ |
||||
|
Heating rate |
0-30℃/min free adjustment |
||||
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
||||
|
Temperature controller |
Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
||||
|
Support OEM/ODM Standard Accessories of Benchtop furnace
 High temperature gloves We will put one pair of high temperature gloves to each benchtop furnace.  Crucible tong Used to remove the crucible after opening the door.  Furnace Door Block Before close the furnace door,we need put the door block firstly,and then close the furnace door.  Furnace tools Special tools can be used when dismantling equipment. Detail picture for Benchtop furnace
Spring-type door handle lock, easy to open and close   High quality heating element with polycrystalline insulation chamber furnace High quality heat resistant fire blocking bricks   LCD highly intelligent instrument,30-segment program with PID control Multifunctional and complete control panel, easy to use and operate   High-quality wear-resistant Fuma wheels, good load-bearing |
|||||
Optional
Different chamber size for your choose;
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
Chimney, door opening method, observation window, etc. are optional.
Warranty of Benchtop furnace:
1.One year warranty and lifelong technical support.
2.Special note: consumables such as heating elements and sample crucibles are not covered by the warranty.
3.Damage caused by the use of corrosive gases is not covered by the warranty.
