Feature
● Max temperature RT～1200℃, Continuous working temperature 1100℃.
● High quality 1200 model alumina ceramic fiber insulation materials.
● 30 segments programmable and PID auto control, Temperature control accuracy ±1℃
● SS 304 flange.
● Two fan cooling at bottom of furnace.
|
Model |
SK2-5-12TPHV |
|
Dimensions: Standard Heating zone length (mm) |
350mm |
|
Dimensions: Standard Tube diameter (mm) |
∮100mm |
|
Max.temperature |
1200℃, Continuous working temperature 1100℃. |
|
Voltage(V) |
220V, single phase |
|
Thermocouple type |
K |
|
Heating rate |
0-30℃/min free adjustment |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases, Inert gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
10Pa Adopting a double rotary vane mechanical pump.
Use Stainless steel vacuum flange with vacuum gauge, valve; Easy to unload, double seal |
|
WELCOME OEM/ODM |
|
Standard Accessories
Thermal gloves | Crucible hook | Thermocouple | Tube Block | User Manual |Tools | Vacuum pump| Quartz tube |Flange |Sealing ring |10mm gas hose |Flange support.
Optional
Different heating zone for your choose;
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
High vacuum with 10-3Pa Diffusion pump unit.

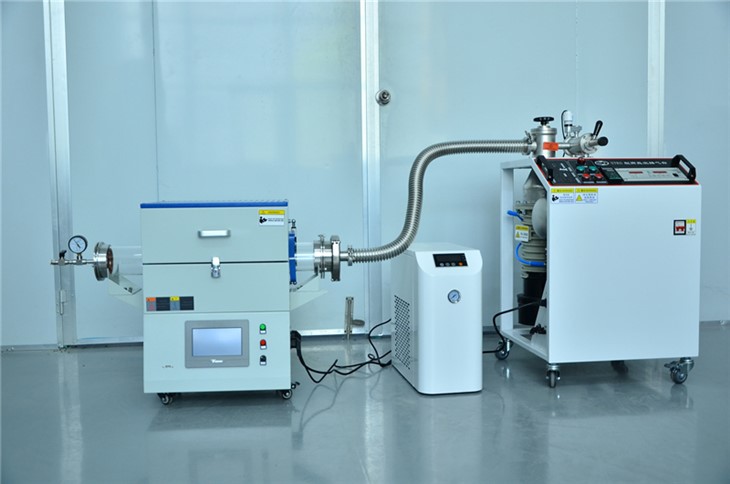

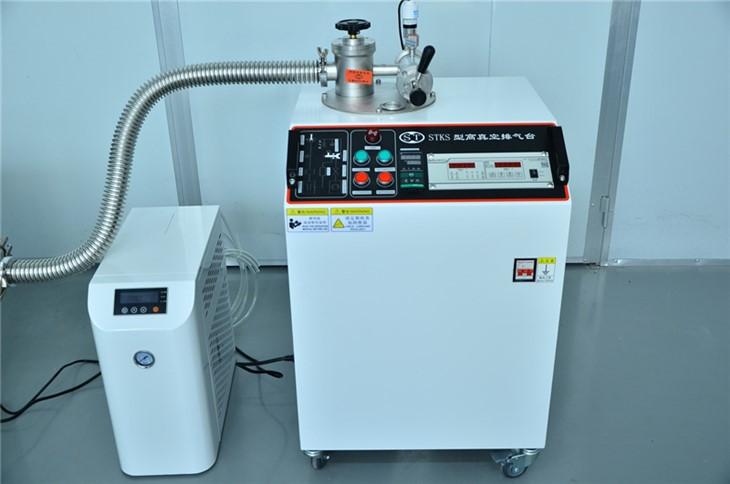

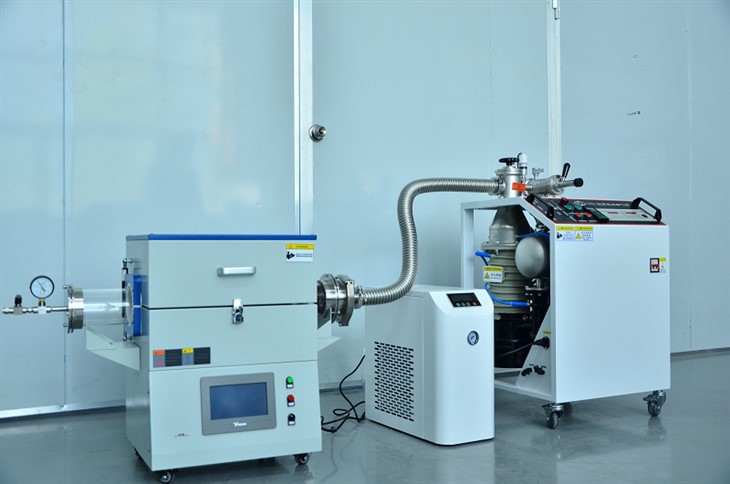

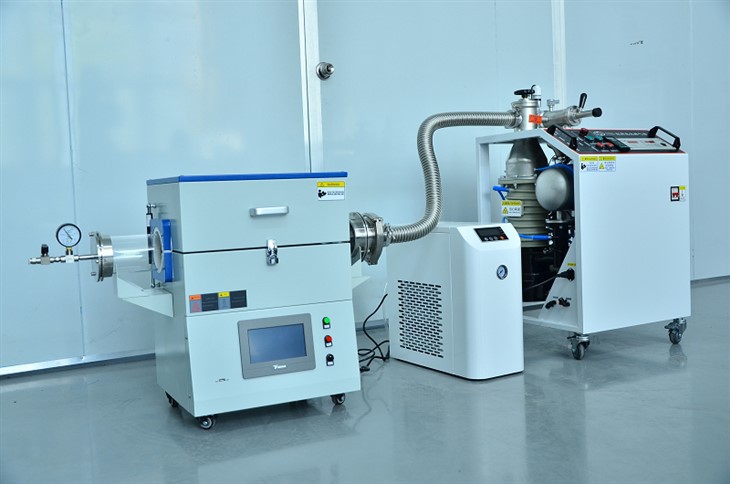

Detail picture for 10-2Torr (10Pa) High Vacuum Tube furnace
Water Chiller to connect water flange.
Application
SK2-5-12TPHV High vacuum tube furnace are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges, such as sintering , annealing, tempering, quenching and other processes
