Products Description

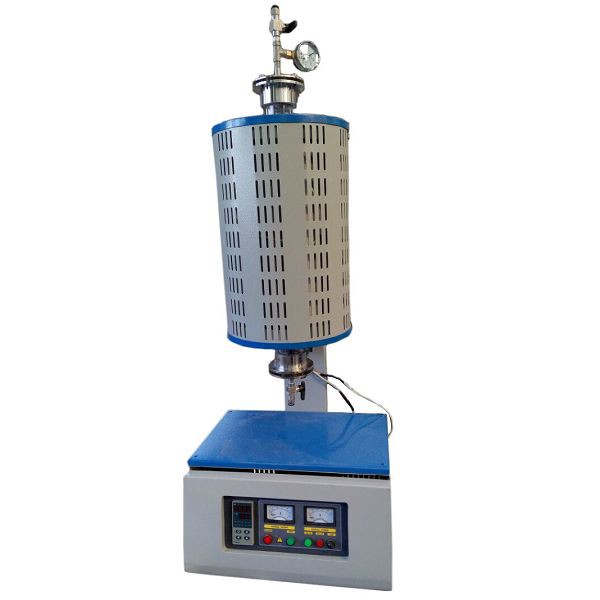

The SK2-2-12TP360V multi station tube furnace is designed specifically for preparing small samples. The furnace body can be placed vertically and horizontally to meet different applications, and can also be tilted to facilitate the pouring of materials after heating is completed.
The standard configuration includes stainless steel sealing flanges and quartz tubes, which can be used immediately by customers when they connect to the power.
Feature
● Max continuous working temperature RT～1100℃
● The furnace can 360 degree rotation.
● High quality Fe-Cr-Al-Mo resistance wire, Heating on two sides, good furnace temperature uniformity
● 50 segments programmable and PID auto control, LED display.
● Cooling fan can reduce the temperature of the casing
|
Model |
SK2-2-12TP360V |
|
Dimensions: Standard Heating zone length (mm) |
205mm |
|
Dimensions: Standard Tube diameter (mm) |
∮40mm |
|
Max.temperature |
1200℃, Continuous working temperature 1100℃. |
|
Voltage(V) |
220V, single phase |
|
Thermocouple type |
K |
|
Heating element |
HRE Alloy resistance wire |
|
Temp.Precision |
±1℃ |
|
Heating rate |
0-30℃/min free adjustment |
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases, Inert gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
-0.1Mpa Use Stainless steel vacuum flange with vacuum gauge, valve;Easy to unload, double seal
|
|
WELCOME OEM/ODM |
|
Standard Accessories

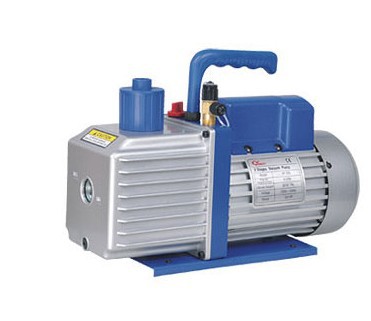

Thermal gloves | Crucible hook | Thermocouple | Tube Block | User Manual |Tools | Vacuum pump| Quartz tube |Flange |Sealing ring |10mm gas hose |Flange support.
Optional
Different heating zone for your choose;
LCD touch screen control for choose
RS485 port to connect computer for choose.
Detail picture
Aapplication
1200℃ multi station tube furnace is mainly used for experimental small workpiece materials, and is used when the temperature is 1100 degrees or below. The sintering is more uniform, and 360 degrees can be rotated freely. After sintering, it is more convenient to pour out, especially suitable for sintering in vacuum or atmosphere environments.
