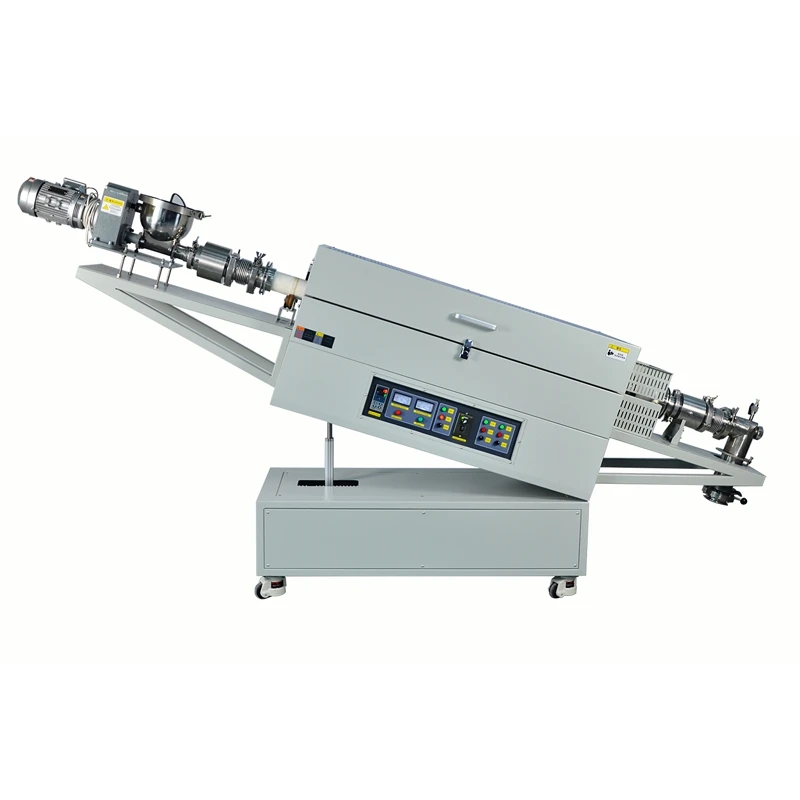

Products Description
Rotary tube furnace is designed upon firing inorganic compound to obtain better consistency and design, especially suitable for the preparation of lithium-ion battery negative material conductive coating. Furnace can be tilted 0-40℃ adjustable, furnace tube can 360℃ rotation, speed adjustable, you can customize the size of the furnace according your needs, can also do dual-zone furnace.

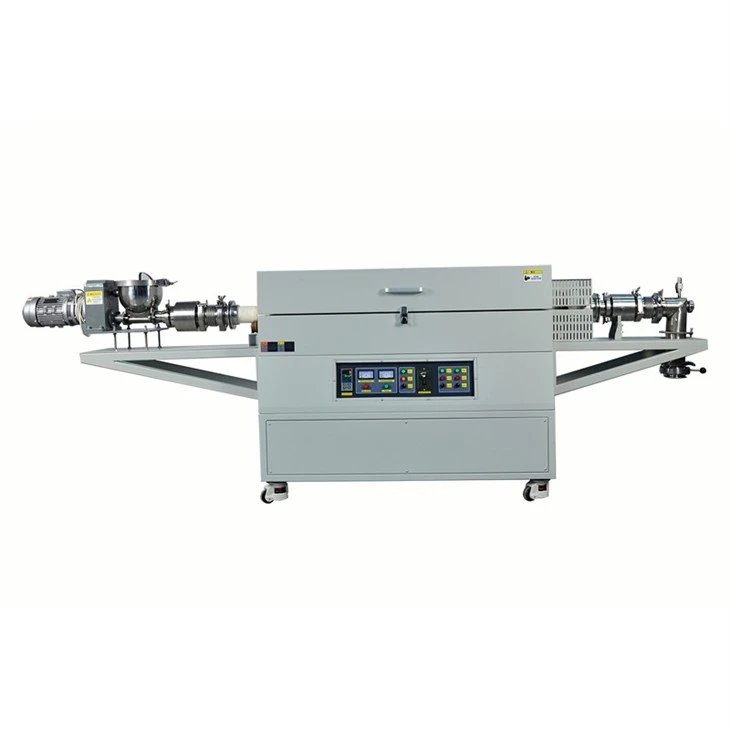

Rotary tilting tube furnace is a special equipment developed specifically for sintering various of powder materials, with automatic feeding and discharging system, can make more homogeneous heat treatment of powder materials.
Rotary tube furnace Feature
1. Temperature range: RT~1000.C; RT ~ 1400.C;
2. Heating elements have electric resistance wire or Sic rod optional.
3. PID automatic control via SCR power control with phase angle fired, current limiting resistor.
4. High quality performance alumina ceramic fiber insulation materials
5. 30 or 50 segments "time-temperature curve" can be set arbitrarily.
6. Heating zone and tube diameter can be customization.
7. Furnace tube: stainless steel tube, quartz tube, alumina tube optional.
|
Furnace Shell Structure: |
Double-layer carbon steel plate shell, surface sprayed with heat resistant plastic powder coating to ensure that the outer surface temperature of the furnace is ≤40.C. |
|

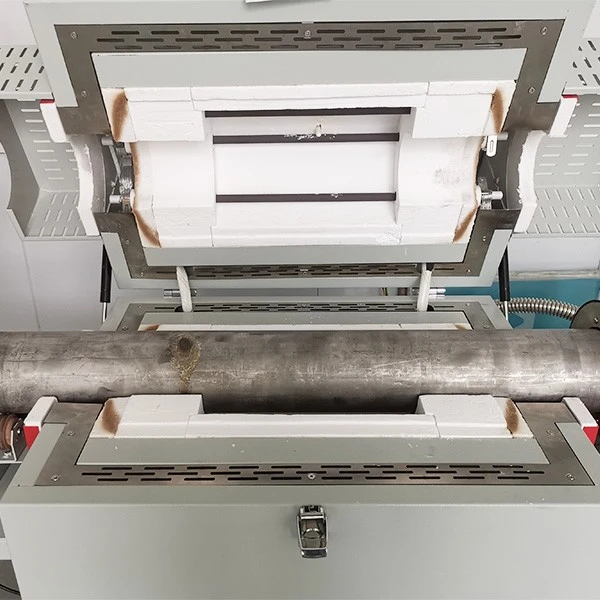

Furnace body: |
Split type chamber |
|
Max. Temperature: |
1200.C / 1400.C |
|
Continuous Working temperature: |
1000~1100.C/ 1300.C |
|
Rated voltage & Power: |
AC 220V/110V 380V/415V/480V 50/60Hz; Power: depends on tube heating zone size. |
|
Tube Materials and size: |
High temperature Stainless steel tube/ Quartz tube/alumina tube optional; Tube OD 40 /60 /80 /100 /120 or bigger optional; |
|
Heating zone: |
1/2/3/5 or more heating zone available; Heating zone:200 / 300 /400 /600mm or longer optional. |
|
Tube sealing: |
With stainless steel flanges at both ends to sealing, with inlet/outlet gas port and valves. |
|
Feeder system: |
S/S feeder box 5-10L with vibrator to get continuous feeding; |
|

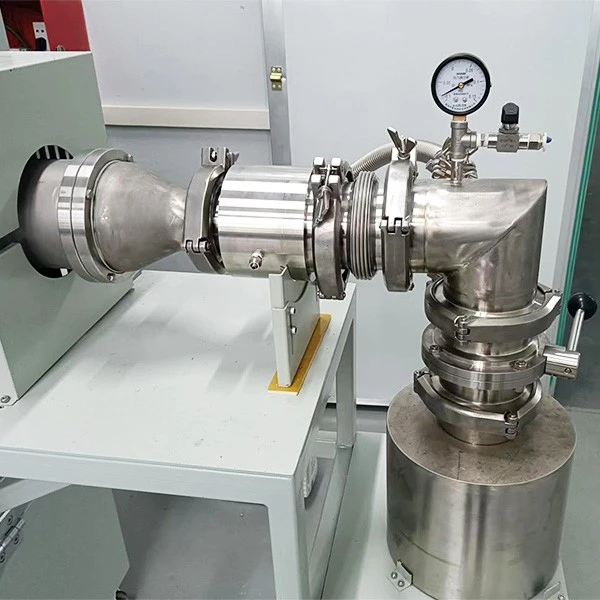

Discharge system: |
S/S collection box with bottom manual unloading valve to unloading materials more easy; |
|
Tube rotating / tilting: |
360.C rotating 1-20RMP variable; 1-10.C tilting angle; |
|
Temperature Controller: |
LCD Temperature Controller with 1 program storage capacity and 30 segments ramp & dwell; PID automatic control and auto-tune function. Built in protection for over-heating and broken thermocouple. |
|
Temperature Precision: |
±1℃ ; |
|
Heating Rate: |
0-30.C/min, suggest to use 10-15.C/min |
|
Chamber Materials: |
High-grade alumina fiber ceramic board and thermal insulation cotton |
|
Heating Element: |
Fe-Cr-Al alloy resistance wire embedded into chamber / Sic rod; |
|
Temp. Measuring Type: |
K /S type thermocouple ; |
|
Inert gas atmosphere |
Nitrogen, Argon and other Inert gas. Max. pressure: <0.02Mpa; |
|
Vacuum level: |
-0.1Mpa; Higher vacuum level 10Pa, 1.33x10-1 ~1.33x10-2Pa optional; |
|
Standard Accessories |
Tube block 2pc, Vacuum pump 1 unit, Stainless steel hook 1pc, Thermal gloves 1 pair, Operation manual 1pc. |
|
Optional parts: |
Touch screen controller, paperless recorder, Remote communication control system, 2-4 gas mixing system, higher vacuum optional, H2 safety device; |
Warranty: One year limited warranty with lifetime support, excluding heating element, cooling fans, thermocouple and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

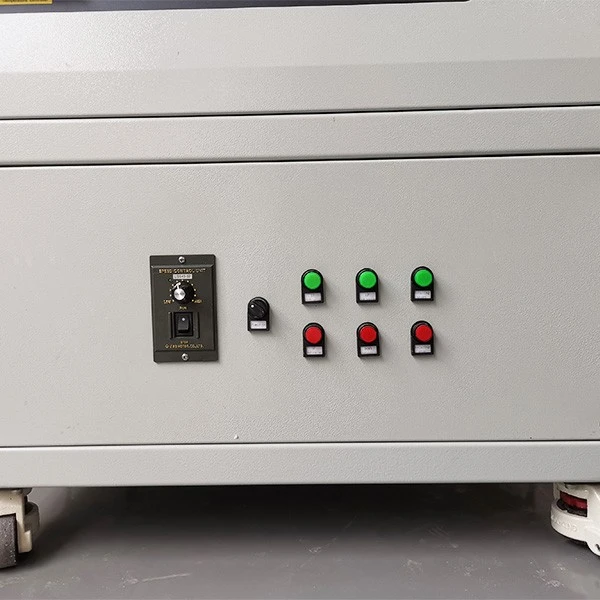

Detail picture
Application
Rotary tube furnaces are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges, such as sintering, annealing, tempering, quenching and other processes.
Rotary tube furnace Notes
1. The air pressure inside the furnace tube should not exceed 0.02Mpa;
2. Do not use graphite crucibles in corundum tubes;
3. Due to the high internal pressure of the gas cylinder, when introducing gas into the furnace tube, a pressure reducing valve must be installed on the gas cylinder. The range of the pressure reducing valve is 0.01Mpa -0.1Mpa, which will be more precise and safe to use.
4. When the temperature of the furnace body exceeds 1000 ° C, the furnace tube cannot be in a vacuum state, and the air pressure inside the furnace tube must be equivalent to atmospheric pressure and maintained at atmospheric pressure.
5. The gas flow rate entering the furnace tube is less than 200sccm to avoid the impact of cold air flow on the furnace tube,
The recommended temperature for long-term use of corundum tubes should not exceed 1650 ° C;
6. When heating the sample, it is recommended to open the exhaust valve and intake valve at the flange end of the furnace tube for use; If it is necessary to close the gas valve to heat the sample, it is necessary to always pay attention to the pressure gauge;
When the pressure index is greater than 0.02Mpa, the exhaust valve/extraction valve (or vacuum pump extraction) must be immediately opened to prevent furnace tube rupture, flange flying out, etc.
7. We do not recommend customers to use flammable, explosive or toxic gases. If the customer needs to use them due to process reasons, please take protective and explosion-proof measures yourself.
Our company is not responsible for any issues caused by the use of flammable, explosive, or toxic gases.
8. Due to manufacturing process reasons, there is a risk of fracture during heating and sintering of aluminum oxide/corundum tubes, which cannot be completely avoided.
