Bottom Loading Furnace
Why Choose Us?
Reliable Product Quality
Xinkyo Company was founded in 2005 by professional materials researchers. Its founder studied at Peking University and is a leading manufacturer of high-temperature experimental equipment and new materials research laboratory equipment. This enables us to provide high-quality, low-cost high-temperature equipment for materials research and development laboratories.
Advanced Equipment
Main production equipment: CNC punching machines, CNC bending machines, CNC engraving machines, high-temperature oven CNC lathes, lying machines, gantry milling, machining centers, sheet metal, laser cutting machines, CNC punching machines, bending machines, self capacitive welding machines, argon arc welding machines, laser welding, sandblasting machines, automatic paint baking rooms.
Wide Range of Applications
The products are mainly used in ceramics, powder metallurgy, 3D printing, new material research and development, crystal materials, metal heat treatment, glass, negative electrode materials for new energy lithium batteries, magnetic materials, etc.
Wide Market
XinKyo Furnace's annual export sales revenue is more than 50 million, with North American markets (such as the United States, Canada, Mexico, etc.) accounting for 30% and European markets (such as France, Spain, Germany,etc) accounting for about 20%; 15% in Southeast Asia (Japan, Korea, Thailand, Malaysia, Singapore, India, etc) and 10% in the Russian market; 10% in the Middle East (Saudi Arabia, UAE, ect ), 5% in the Australian market, and the remaining 10%.
What is Bottom Loading Furnace?
Bottom loading furnaces are designed for uniform thermal distribution inside the chamber, easy loading and unloading of sample with help of lifting arrangement. They are high temperature uniform batch furnaces with electrical heating element uniformly assemble around the heating chamber with insulation.
-
![High Temperature Bottom Loading Furnace]()
High Temperature Bottom Loading Furnace1800℃ High temperature Bottom loading furnace is very convenient to load and unload, It uses high-quality 1800 silicon-molybdenum rods, advanced lightweight alumina ceramic insulation materials,...read more -
![Elevator Atmosphere Furnace]()
Elevator Atmosphere FurnaceProgrammable Bottom loading furnaceread more
Lifting up and down plarform
PID controlled lab furnace
Atmosphere or rough vacuum is available -

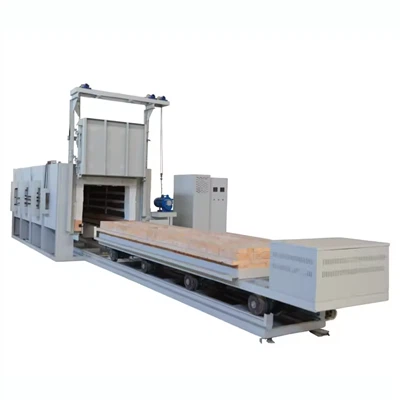

![1000C 4m Trolley Furnace]()
1000C 4m Trolley Furnace1.4.2m*0.9*0.7m inner sizeread more
2. Maximum operating temperature 1000C
3. PID control, temperature control accuracy ±1℃
4. 30~50 sections of temperature-time program
5. Over-temperature... -
![Elevator Furnace]()
Elevator FurnaceProgrammable Elevator furnaceread more
Lifting up and down plarform
PID controlled lab furnace -
![Box Type Atmosphere Furnace]()
Box Type Atmosphere FurnaceThe bottom-loading inert atmosphere furnace with electronically controlled lifting and four-sided heating provides users with the convenience of easy operation and rapid heating. Inert atmosphere...read more -
![Lifting Sintering Furnace]()
Lifting Sintering Furnace1200℃ Lifting sintering furnace is very convenient to load and unload,the temperature is uniform,It is convenient to take materials and is suitable for high-temperature material retrieval and...read more -
![Bottom Lifting Furnace]()
Bottom Lifting Furnace1700℃ Bottom Lifting furnace is a bottom-loading and lifting electric furnace with four-sided heating elements, good furnace temperature uniformity, double-layer air-cooling structure, large...read more -
![Hot Air Circulation Lifting Furnace]()
Hot Air Circulation Lifting FurnaceHot air circulation lifting furnace adopts a double-layer furnace door to realize material circulation, lifting and heat treatment, Hot air circulation lifting furnace can perform high-temperature...read more
Advantages of Bottom Loading Furnace
Improved Efficiency and Productivity
The efficient material handling capabilities of the bottom loading furnace significantly contribute to improved efficiency and productivity. The quick loading and unloading process minimizes idle time, allowing for continuous production or processing. This efficiency boost leads to higher throughput and reduced overall production time, ultimately enhancing the bottom line.
Enhanced Temperature Control and Uniformity
Temperature control is crucial for many heat treatment processes, and bottom loading furnaces excel in this aspect. The vertical movement ensures uniform heating throughout the material, eliminating temperature variations that can affect the final product’s quality. The precise temperature control systems in bottom loading furnaces allow for accurate heating profiles, meeting the strict requirements of many industrial applications.
Reduced Labor and Material Handling
By automating the material handling process, bottom loading furnaces reduce the need for manual labor and minimize material handling efforts. This not only saves time but also lowers labor costs and can decrease the risk of injuries associated with manual handling. With fewer manual interventions, the overall production process becomes more streamlined and efficient. Always follow safety rules and manufacturer instructions. Safety first, always.
Space-Saving Design and Flexibility
Bottom loading furnaces are designed with a compact footprint, making them suitable for installations with limited space. Their vertical movement mechanism allows for flexibility in accommodating various material sizes and shapes, offering versatility in heat treatment applications. The space-saving design makes bottom loading furnaces a viable option for facilities with spatial constraints.
Application of Bottom Loading Furnace
Heat Treatment Processes
Bottom loading furnaces are widely used in heat treatment processes such as annealing, tempering, quenching, and hardening. Their precise temperature control and uniform heating capabilities make them ideal for achieving consistent and repeatable heat treatment results. Industries that rely on heat treatment, such as metalworking, aerospace, and automotive, can benefit greatly from the use of bottom loading furnaces.
Industrial Manufacturing and Production
In industrial manufacturing and production settings, bottom loading furnaces play a crucial role. They are used for processes like brazing, soldering, bonding, and curing. The ability to control temperature, atmosphere, and cycle times makes bottom loading furnaces indispensable in industries such as electronics, ceramics, glass, and advanced material manufacturing.
Research and Development
The bottom loading furnace is extensively utilized in research and development laboratories and institutions. These furnaces allow scientists and researchers to conduct experiments, explore new materials, and analyze the behavior of various substances under controlled heating conditions. The precise control and programmability of bottom loading furnaces make them indispensable tools for advancing scientific knowledge and innovation.
Aerospace and Automotive Industries
The aerospace and automotive industries have unique requirements when it comes to heat treatment and manufacturing processes. bottom loading furnaces are well-suited for these industries due to their ability to handle large and heavy components. Whether it’s heat treating aircraft engine parts or manufacturing automotive components, the bottom loading furnace offers the necessary temperature control and uniformity to ensure high-quality results.
The working of a bottom loading furnace is fairly straightforward. First, the material to be processed is placed on the loading platform, which is typically a large, flat surface located at the bottom of the furnace chamber. The platform is then raised or lowered using a motorized gear assembly, allowing the material to be easily loaded into the furnace.
Once the material is loaded, the furnace is closed and sealed, and the heating process begins. The furnace is typically equipped with heating elements, which may be located on the walls, ceiling, or floor of the furnace chamber. These elements generate heat, which is then transferred to the material being processed.
The temperature of the furnace is typically monitored and controlled using a temperature control system, which may include sensors, thermostats, and other monitoring and control devices. This helps to ensure that the material is heated to the desired temperature and maintained at a consistent temperature throughout the heating process.
Once the heating process is complete, the furnace is cooled down and the material is unloaded. The loading platform is again lowered, allowing the material to be easily removed from the furnace. The furnace is then cleaned and prepared for the next batch of material to be processed.
Temperature Range and Heating Capabilities
Evaluate the temperature range and heating capabilities of the furnace to ensure it can meet the specific temperature requirements of your applications. Consider the maximum temperature, ramp rates, and temperature uniformity throughout the chamber.
Size and Capacity Requirements
Determine the size and capacity requirements based on the dimensions and volume of the components or materials you will be working with. Ensure that the furnace can accommodate your workload efficiently and effectively.
Energy Efficiency and Operating Costs
Consider the energy efficiency of the furnace and its impact on operating costs. Look for features such as insulation, heat recovery systems, and programmable controls that can optimize energy usage and reduce long-term expenses.
Control Systems and Automation Features
Evaluate the control systems and automation features of the furnace. Advanced control systems allow precise temperature programming, data logging, and remote monitoring, enhancing process control and efficiency.
Maintenance and Serviceability
Assess the maintenance requirements and ease of serviceability of the furnace. Look for features such as easy access to components, user-friendly interfaces, and availability of technical support to ensure smooth operation and minimize downtime.
Operation Steps of Bottom Loading Furnace
Loading
The workpieces or materials to be processed are loaded onto the elevator platform or conveyor system outside the furnace chamber.
Heating
The furnace is heated to the desired temperature using burners or electric heating elements. The heat is transferred to the furnace chamber, raising the temperature to the required level for the specific heat treatment process.
Vertical Movement
The elevator platform with the loaded workpieces is raised or lowered within the furnace chamber, moving the load through different temperature zones or treatment stages. This movement ensures that the workpieces are exposed to the appropriate temperature profiles and dwell times.
Heat Treatment
The workpieces remain at each temperature zone or treatment stage for the required time to achieve the desired heat treatment results. This can include heating, soaking, and cooling as per the specific process requirements.
Unloading
Once the heat treatment process is completed, the elevator platform lowers to the desired position, allowing the heat-treated workpieces to be unloaded from the furnace chamber for further processing or handling.
Latest Advancements in Bottom Loading Furnaces Technology
Smart Furnaces: Revolutionizing Operations
• Integrating Artificial Intelligence (AI) for Precision: Smart Furnaces have emerged as game changers in the industrial domain. By leveraging the power of Artificial Intelligence, these furnaces optimize operations with unprecedented precision. AI algorithms analyze real-time data, adjusting temperature, pressure, and airflow parameters, resulting in enhanced efficiency and reduced energy consumption.
• IoT Connectivity for Seamless Monitoring: Integrating Internet of Things (IoT) technology takes smart furnaces to the next level. Manufacturers can remotely monitor and control furnace operations, ensuring proactive maintenance and minimizing downtime. This connectivity fosters a more agile and responsive industrial environment.
Energy-Efficient Innovations
• Advanced Insulation Materials: Bottom loading furnaces are now adopting advanced insulation materials in pursuit of sustainability. Nano-insulation materials, for instance, exhibit superior thermal resistance, reducing heat loss and significantly improving energy efficiency. This aligns with environmental goals and translates into substantial cost savings for businesses.
• Heat Recovery Systems: The latest furnace designs prioritize sustainability through the incorporation of heat recovery systems. These systems capture and reuse excess heat generated during industrial processes. By harnessing this energy, companies can offset their carbon footprint while optimizing resource utilization.
Precision Control Mechanisms
• Automated Temperature Control: Precision is a hallmark of the latest bottom loading furnaces, and automated temperature control mechanisms play a pivotal role. PID controllers (Proportional-Integral-Derivative) ensure that the stove maintains a constant temperature, which is critical for processes requiring stringent temperature control, such as metal alloy casting and heat treatment.
• Adaptive Combustion Systems: Innovative adaptive combustion systems optimize fuel efficiency by dynamically adjusting the air-fuel mixture based on real-time conditions. This enhances combustion efficiency and contributes to a greener industrial footprint by minimizing emissions.
Materials Innovation for Enhanced Durability
• Refractory Material Advancements: The longevity and performance of bottom loading furnaces depend heavily on the quality of refractory materials. Recent advancements in refractory technology include the use of nanostructured ceramics and high-performance composites. These materials resist extreme temperatures and corrosive environments, prolonging the furnace’s lifespan and reducing maintenance costs.
• 3D-Printed Components: Integrating 3D-printed components in furnace manufacturing allows for intricate designs and customized solutions. This streamlines the production process and enables the creation of more durable and efficient furnace components.
Future Trends: Beyond the Horizon
• Green Energy Integration: Anticipating the global shift towards sustainable practices, the future of bottom loading furnaces lies in integrating green energy sources. Solar-powered furnaces and those fueled by bioenergy are on the horizon, promising a more eco-friendly approach to industrial heating processes.
• Quantum Computing for Process Optimization: Looking further ahead, the advent of quantum computing holds promise for revolutionizing process optimization in industrial settings. Quantum algorithms can analyze vast datasets at unprecedented speeds, providing unparalleled insights for refining furnace operations.
Rainy Season Protection Guide for Bottom Loading Furnaces
Weather-Resistant Coatings
Consider applying advanced weather-resistant coatings to fortify bottom loading furnaces against the corrosive impact of rain. These coatings act as a protective barrier, preventing moisture from penetrating the furnace surface and safeguarding it from rust and corrosion. Regular inspections and reapplications are recommended to ensure continuous effectiveness.
Strategic Shelter Design
Crafting a shelter around bottom loading furnaces is a proactive step to shield them from direct exposure to rain. This bespoke shelter, designed to accommodate the specific dimensions of the furnace, acts as a barrier against rain and moisture, ensuring consistent operation even during heavy downpours.
Routine Maintenance Protocols
A rigorous maintenance schedule is paramount in securing bottom loading furnaces during the rainy season. Regular inspections should encompass the identification and prompt rectification of any signs of wear, rust, or corrosion. Components such as burners, insulation, and refractory linings should be meticulously examined and maintained to guarantee optimal functionality.
Advanced Drainage Systems
Effective drainage is a crucial element in preventing rainwater accumulation around bottom loading furnaces. Install advanced drainage systems that redirect water away from the furnace area, minimizing the risk of water ingress. Regular clearing of drains and gutters is essential to ensure unobstructed water flow.
Monitoring and Control Systems
Integrating state-of-the-art monitoring and control systems provides real-time insights into the operating conditions of bottom loading furnaces. These systems enable swift responses to deviations and contribute to the overall efficiency of furnace operations. Monitoring temperature, humidity, and other key parameters becomes a proactive approach to maintaining optimal working conditions, especially during the rainy season.
Emergency Response Plan Implementation
Prepare for unforeseen challenges by establishing a robust emergency response plan. Train personnel to respond promptly to sudden weather-related issues. This proactive approach minimizes downtime, reduces the risk of extensive damage, and ensures the swift resolution of weather-induced complications.
Employee Training on Rainy Season Protocols
Educate your workforce on the specific protocols and safety measures to be followed during the rainy season. Ensure that personnel understand the importance of proactive maintenance, emergency response procedures, and adhering to safety guidelines in adverse weather conditions.
Key Components of Bottom Loading Furnace
Heating Chambers
These are the enclosed spaces within the furnace where the raw materials or products are placed for heating. The heating chamber’s size and shape depend on the manufacturing process’s specific requirements.
Burners or Heating Elements
Bottom loading furnaces utilize burners or heating elements to generate heat. Burners can use various fuel sources, such as natural gas, oil, or coal, while heating elements are typically electrical resistors. The choice of burner or heating element depends on factors like energy availability, cost, and the desired temperature range.
Insulation
Insulation is a crucial component of bottom loading furnaces, as it helps minimize heat loss and maintain the desired temperature within the furnace. Insulating materials such as refractory bricks, ceramic fibre blankets, or mineral wool are used to line the walls and floor of the furnace, reducing heat transfer to the surrounding environment.
Exhaust Systems
It generate gases and fumes during heating, and controlling their release is essential. Exhaust systems, including ventilation ducts, fans, and filters, are incorporated into the furnace to remove these byproducts safely. Proper ventilation ensures a healthy working environment and prevents the accumulation of harmful gases.
Temperature Sensors and Controls
Temperature sensors and controls are critical for maintaining the desired temperature within the furnace. Thermocouples and temperature sensors are strategically placed within the furnace to measure the temperature accurately. The temperature data is then sent to temperature controls, such as programmable logic controllers (PLCs) or PID controllers, which regulate the heat output of the burners or heating elements to maintain the desired temperature range.
Our Certifications
Our Factory
Xinkyo Company was founded in 2005 by professional materials researchers. Its founder studied at Peking University and is a leading manufacturer of high-temperature experimental equipment and new materials research laboratory equipment. This enables us to provide high-quality, low-cost high-temperature equipment for materials research and development laboratories. Our products include high-temperature ovens, tube furnaces, vacuum furnaces, trolley furnaces, lifting furnaces, and other complete sets of equipment. Thanks to its excellent design, affordable prices, and customer service, Xinkyo is committed to becoming the world leader in materials science research for high-temperature equipment.
Ultimate FAQ Guide to Bottom Loading Furnace
As one of the leading bottom loading furnace manufacturers and suppliers in China, we warmly welcome you to buy high-grade bottom loading furnace for sale here from our factory. All our products are with high quality and competitive price.
