Products Description

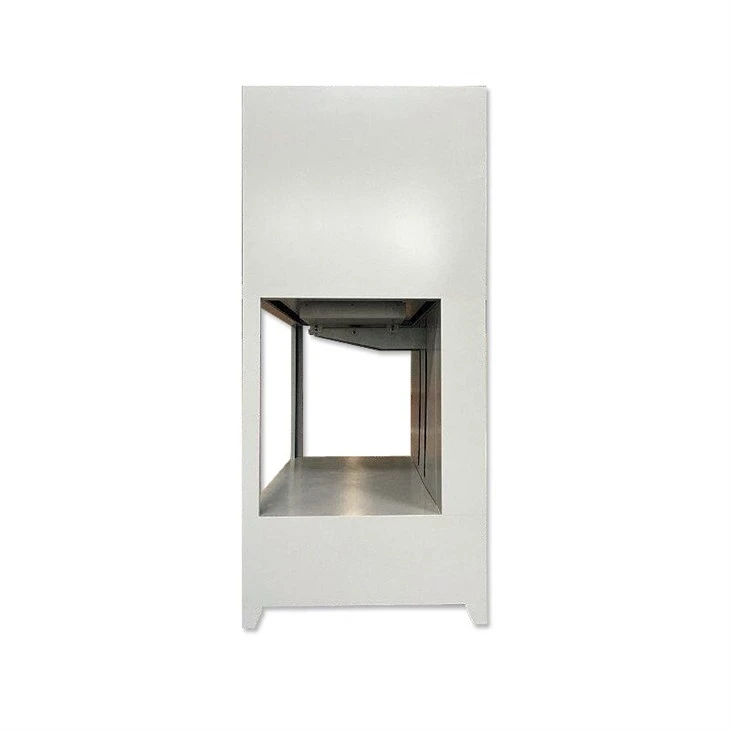

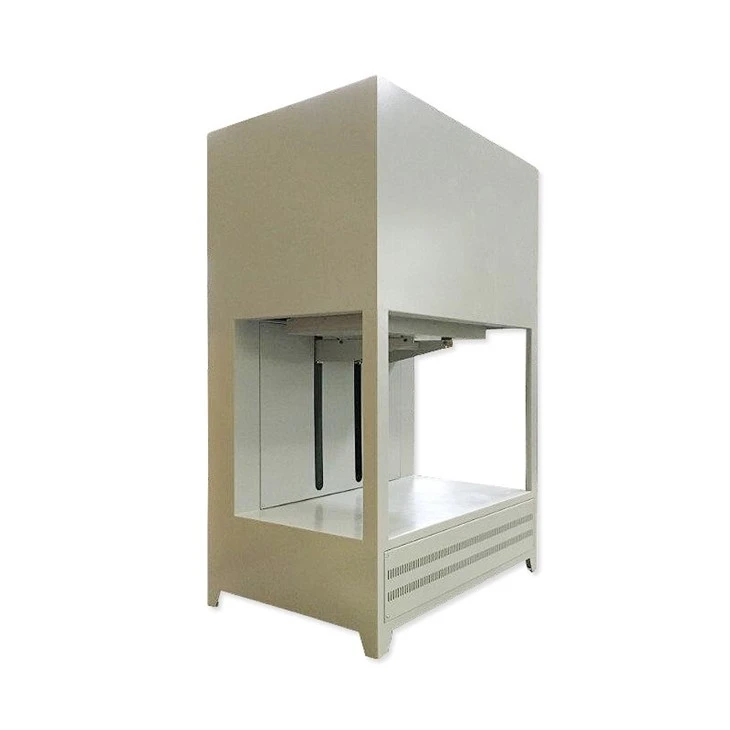

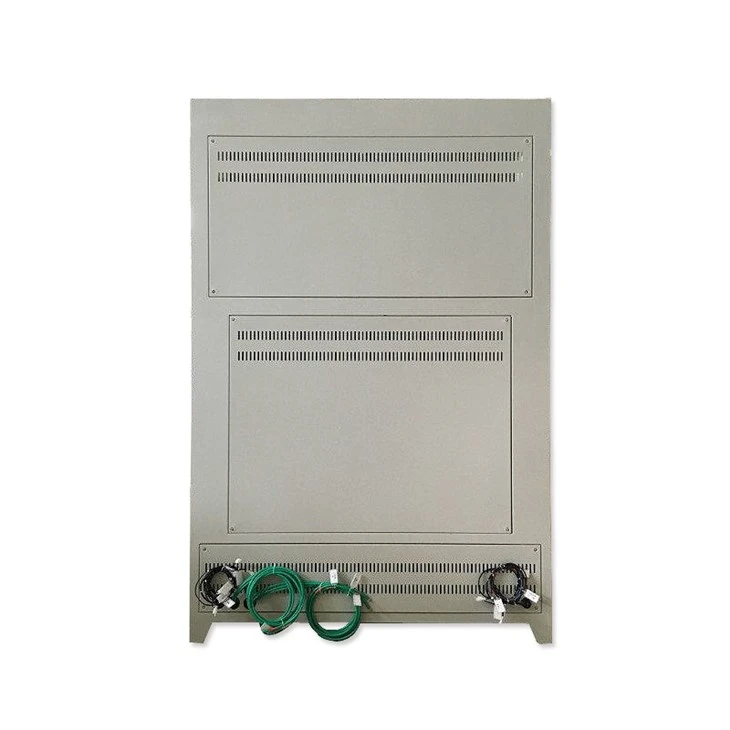

Lifting sintering furnace is very convenient to load and unload, It is convenient to take materials and is suitable for high-temperature material retrieval and annealing. Lifting sintering furnace is mainly used for sintering and annealing of ceramics, glass and other metal products.
Feature
● Max temperature RT～1200℃
● Volume 1～2000L, support customized.
● High quality heating element, Four-sided heating, excellent furnace temperature uniformity
● Large loading capacity
● The bottom lifts up and down
|
Model |
SX2-1-12TPBL |
SX2-2-12TPBL |
SX2-6-12TPBL |
SX2-9-12TPBL |
|
Dimensions: Internal D x W x H (mm) |
100*100*100 |
200*150*150 |
300*200*200 |
400*300*300 |
|
Max.temperature(℃) |
1200 |
1200 |
1200 |
1200 |
|
Working temperature(℃) |
1100 |
1100 |
1100 |
1100 |
|
Volume (litres) |
1 |
4.5 |
12 |
36 |
|
Power(KW) |
1 |
2 |
6 |
9 |
|
Voltage(V) |
220 1P |
220 1P |
220 1P |
380 3P |
|
Thermocouple type |
K |
|||
|
Heating element |
resistance wire |
|||
|
Temp.Precision |
±1℃ |
|||
|
Heating rate |
0-30℃/min free adjustment |
|||
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
|||
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|||
|
Certification: CE, ISO, SGS ect, more than 30 patent certifications |
||||
|
Warranty: One-year warranty (excluding wearing parts) and long-term technical support |
||||
|
Support OEM/ODM |
||||
