Products Description

Hot air circulation lifting furnace adopts a double-layer furnace door to realize material circulation, lifting and heat treatment, Hot air circulation lifting furnace can perform high-temperature heating treatment, graphitization, heating and drying, sintering, preheating and other processes of various materials, and is used for various purposes such as powder roasting, ceramic sintering, high-temperature experiments, material processing, and quality testing.

Feature

● Max temperature RT～1800℃

● Excellent furnace temperature uniformity

● Bottom loading and unloading, the material table can be lifted and lowered electrically

● PLC fully intelligent automatic control temperature control program and circulation lifting system

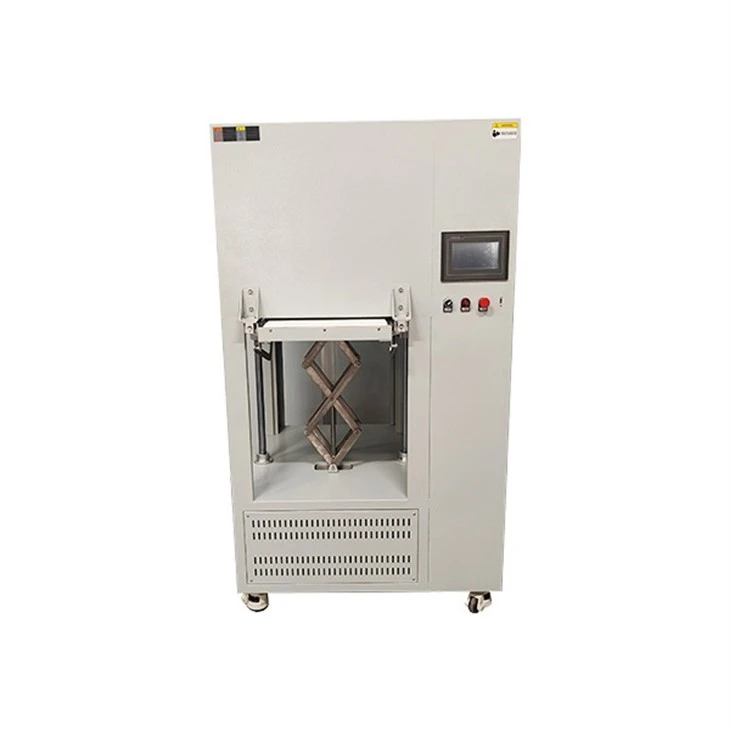

Hot air circulation lifting furnace

Model	SL2-2-18TPHC
Dimensions: Internal D x W x H (mm)	D300*H300MM (customizable)
Max.temperature(℃)	1800
Working temperature(℃)	1700
Volume (litres)	21L
Power(KW)	12
Voltage(V)	380 2P
Thermocouple type	B
Heating element	High quality Mosi2 heating element
Temp.Precision	±1℃
Furnace door type	Double-layer door structure facilitates hot air circulation protection
Heating rate	0-10℃/min free adjustment
Chamber material	Using advanced high-quality alumina microcrystalline fiber material
Furnace structure	Double-layer air-cooled structure, surface temperature is less than 60℃
Temperature controller	Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling
Certification: CE, ISO, SGS ect, more than 30 patent certifications
Warranty: One-year warranty (excluding wearing parts) and long-term technical support
Support OEM/ODM

Standard Accessories

Optional

Max.temperature: 1200, 1400, 1700C

Different chamber size for your choose;

50 segment program for choose

LCD touch screen control for choose

RS485/USB port to connect computer for choose.

Chimney, door opening method, air intake hole, observation window, etc. are optional.

Cooperative Client

FAQ

Q: Are you muffle furnace manufacturer?

A: Yes, we are professional muffle furnace manufacturer of China.

Q: What kind terms of payment can be accepted?

A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.

Q: Can I ask for customized furnace?

A: Yes, customized furnace is accepted.

Q: What about the delivery time?

A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.

Q: What about the guarantee period?

A: The guarantee period is 12 months.

Q: What about the Minimum Order Quantity?

A: The MOQis 1 pcs.
