Products Description
The inert atmosphere furnace with an absolute pressure of 10 Pa allows effective research on specific materials and is the second generation product following the standard atmosphere furnace. Digital resistance gauge, bipolar rotary vane pump, enhanced chamber, high temperature resistant sealing strip and hand wheel greatly improve the sealing and vacuum degree, and are suitable for users who require such range pressure.
Feature
1. Meet the needs of 10Pa(Absolute pressure)
2. 1700℃ high temperature
3. Inlet atmosphere can be filled into the chamber as a protective atmosphere
4. 1L to 36L optional
5. Customization support
Specification data-sheet of inert atmosphere furnace (higher level temperature customized is available)
|
Max/Continuous temperature |
Volume(Inner Size/D*W*H) |
Power |
Inert gas in |
Vacuum pump |
Heating element |
Thermocouple |
|
1200/1100℃ |
1L(100*100*100) |
220V 1P 1KW |
Available |
Included |
HRE resistance wire |
K |
|
4.5L(200*150*150) |
220V 1P 2KW |
|||||
|
12L(300*200*200) |
220V 1P 6KW |
|||||
|
36L(400*300*300) |
380V 3P 9KW |
|||||
|
1400/1300℃ |
1L(100*100*100) |
220V 1P 2KW |
Available |
Included |
SiC heating element |
S |
|
4.5L(200*150*150) |
220V 1P 4KW |
|||||
|
12L(300*200*200) |
220V 1P 9KW |
|||||
|
36L(400*300*300) |
380V 3P 16KW |
|||||
|
1700/1600℃ |
1L(100*100*100) |
220V 1P 2KW |
Available |
Included |
MoSi2 heating element |
B |
|
4.5L(200*150*150) |
220V 1P 4KW |
|||||
|
12L(300*200*200) |
220V 1P 9KW |
|||||
|
36L(400*300*300) |
380V 3P 16KW |
|||||
|
Common features of inert atmosphere furnace |
||||||
|
Temperature controller |
Precision control AI 518P temperature controller, PID controller, 30segments temperature-time programs, Over heated protection, Broken thermocouple alarm, over upper temperature limit protection, data protection when power off accidentally |
|||||
|
Vacuum pump |
6*10^-1Pa to 6*10^-2Pa ultimate pressure 2X rotary vane pump |
|||||
|
Vacuum pressure gauge |
Pirani resistance vacuum gauge(measurement 1Pa ~10^5Pa), digital display |
|||||
|
Sealing |
The furnace door is made of integral surface grinding and milling, and the silicone strip is embedded and sealed, and the hand wheel is locked, which has good sealing |
|||||
|
Chamber |
International advanced latest Al2O3 ceramic fiber material, high temperature-resistance, thermal shock resistance, energy saving, save 60% to 80% energy than traditional firebrick material, lighter weight, no crack, no contamination |
|||||
|
Heating rate |
≤30℃/minutes |
|||||
|
Furnace structure |
Double layer housing structure design to make sure a good effect of temperature uniformity and safety of user's machine using, also with the forced air cooling on bottom to confirm the electric safety |
|||||
|
Applied atmosphere |
Ar, N2, He, H2.,etc(non-hydrogen environment, hydrogen environment ≤1450℃) |
|||||
|
Vacuum pump |
Bipolar rotary vane pump |
|||||
|
Float flow-meters |
High quality float flow meter, 30~300ml/minutes or as client's request |
|||||
|
Wheels |
Convenient, movable, flexible universal wheels with brake function, included |
|||||
|
Certification |
CE certification provided |
|||||
Inert atmosphere furnace with 10Pa high sealing enhanced version vacuum atmosphere furnace
|
|
|
|
|
Front view |

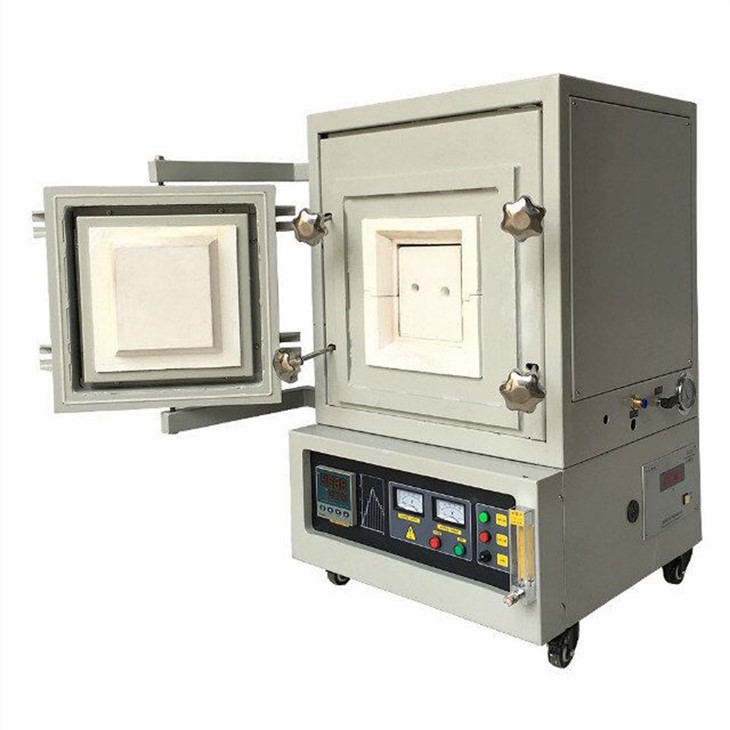

Open door view |
Back view |
|
|
|
|
|

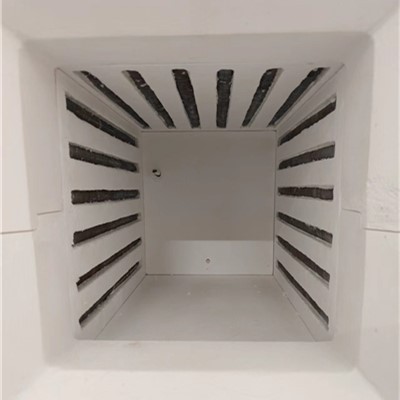

Heating element and quantities based on chamber size choose |
||
|
|
|
|
|
380V 3phase control panel and display panel |
Gas control channel & vacuum pressure gauge |
Bipolar rotary vane pump |
