Products Description
The hydrogen atmosphere box furnace adds an extra hydrogen ignition safety device to the basic atmosphere furnace, allowing it to meet the explosion-proof and flame-proof requirements of the place of use. It is equipped with automatic detection of hydrogen and can be filled with hydrogen atmosphere. The hydrogen atmosphere can enable heat treatment under relatively reducing conditions to avoid oxygen contamination of the work-piece to be heat treated. Safety, efficiency, diversity, flexibility.
Feature
1. Multi-purpose atmosphere furnace filling (including hydrogen)
2. The maximum temperature can reach 1750℃ (non-hydrogen environment, hydrogen environment ≤1450℃)
3. Precisely controlled temperature controller CE, UL certified
4. Available from 1L to 36L
Specification data-sheet
|
Max/Continuous temperature |
Volume(Inner Size/D*W*H) |
Power |
Inert gas in |
Vacuum pump |
Heating element |
Thermocouple |
|
1200/1100℃ |
1L(100*100*100) |
220V 1P 1KW |
Available |
Included |
HRE resistance wire |
K |
|
4.5L(200*150*150) |
220V 1P 2KW |
|||||
|
12L(300*200*200) |
220V 1P 6KW |
|||||
|
36L(400*300*300) |
380V 3P 9KW |
|||||
|
1400/1300℃ |
1L(100*100*100) |
220V 1P 2KW |
Available |
Included |
SiC heating element |
S |
|
4.5L(200*150*150) |
220V 1P 4KW |
|||||
|
12L(300*200*200) |
220V 1P 9KW |
|||||
|
36L(400*300*300) |
380V 3P 16KW |
|||||
|
1700/1600℃ |
1L(100*100*100) |
220V 1P 2KW |
Available |
Included |
MoSi2 heating element |
B |
|
4.5L(200*150*150) |
220V 1P 4KW |
|||||
|
12L(300*200*200) |
220V 1P 9KW |
|||||
|
36L(400*300*300) |
380V 3P 16KW |
|||||
|
Hydrogen atmosphere furnace for common features |
||||||
|
Temperature controller |
Yudian 518P temperature controller, PID controller, 30segments temperature-time programs, Over heated protection, Broken thermocouple alarm, over upper temperature limit protection, data protection when power off accidentally |
|||||
|
Hydrogen safety system |
Ignition device + explosion-proof device + detection device + alarm system |
|||||
|
Sealing |
The furnace door is made of integral surface grinding and milling, and the silicone strip is embedded and sealed, and the hand wheel is locked, which has good sealing |
|||||
|
Chamber |
International advanced latest Al2O3 ceramic fiber material , high temperature-resistance, thermal shock resistance, energy saving, save 60% to 80% energy than traditional firebrick material, lighter weight, no crack, no contamination |
|||||
|
Heating rate |
≤30℃/minutes |
|||||
|
Furnace structure |
Double layer housing structure design to make sure a good effect of temperature uniformity and safety of user's machine using, also with the forced air cooling on bottom to confirm the electric safety |
|||||
|
Applied atmosphere |
Ar, N2, He, H2., etc(non-hydrogen environment, hydrogen environment ≤1450℃) |
|||||
|
Vacuum pressure gauge |
-0.1Mpa to 0.1Mpa( Inner positive pressure should be ≤0.02Mpa to make sure the safety) |
|||||
|
Max vacuum degree |
-0.1Mpa |
|||||
|
Vacuum pump |
Rotary vane vacuum pump |
|||||
|
Float flow-meters |
High quality float flow meter, 60~600ml/minutes or as client's request |
|||||
|
Wheels |
Convenient, movable, flexible universal wheels with brake function, included |
|||||
|
Certification |
CE certification provided |
|||||

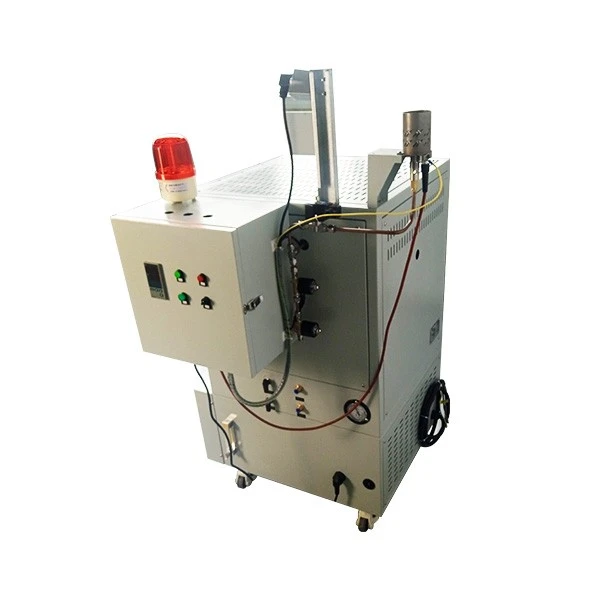

Product demonstration (Basic version+Extra 1set of H2 safety system)
|
|
|
|
|
HRE resistance wire |
SiC heating element |
MoSi2 heating element |
|
|
|
|
|
Quantities based on chamber size choose |
||
|
|
|
|
|

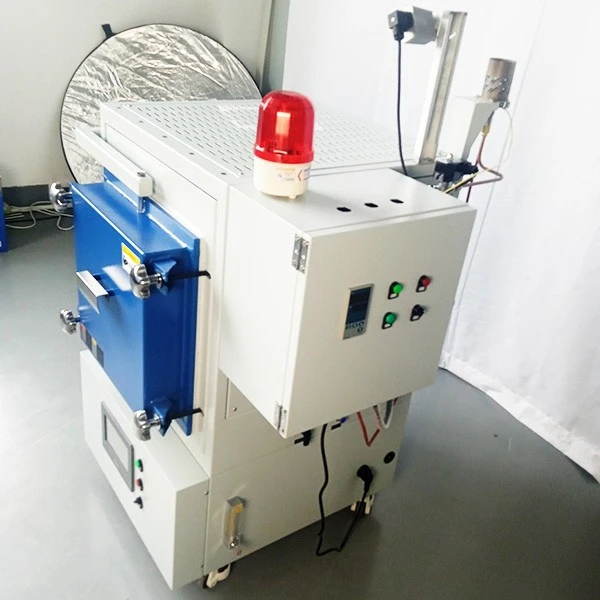

Ignition control and alarm |
Burning state |
H2 inspector |
|
|
|
|
|
Precision controller & circuit indicator |
Gas control channel & float flowmeter |
Rotary vane vacuum pump |
Applications
Hydrogen atmosphere box furnace are widely used in scientific research and small batch production in enterprises and institutions, as well as exported to ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, and special products involved in scientific research and teaching. Materials, building materials and other fields. Suitable for annealing, sintering, normalizing, quenching and other fields.
The influence of different atmospheres on component operating temperature
|
Atmosphere |
1700 type |
1800 type |
1850 type |
|
Air |
1700 |
1800 |
1830 |
|
N2,Nitrogen |
1600 |
1700 |
1700 |
|
Ar Ne Argon, Helium |
1600 |
1700 |
1700 |
|
80℃ Dry Hydrogen (dew point) |
1150 |
1150 |
1150 |
|
20℃ Wet Hydrogen (dew point) |
1450 |
1450 |
1450 |
|
Mix(e.g. 10% CO2, 50% CO, 15%H2) |
1600 |
1700 |
1700 |
|
Mix(e.g. 40% CO2, 20% CO) |
1400 |
1450 |
1450 |
|
Mix(e.g. 40% CO2, 20% CO(8%H2) |
1400 |
1450 |
1450 |
