Products Description
High temperature Industrial Atmosphere furnace uses double carbon steel layer shell and 30 segments PID control. The electric furnace consists of high purity alumina polycrystalline fiber brick and high quality heating element. This furnace equips with air cooling system, which makes temperature cool and rise quickly.
It is an ideal tool for materials tempering, annealing and sintering batch heavy duty workpieces, composition analysis, quality testing, ashing in factory workshop, research institutes, etc.
Industrial atmosphere furnace Feature:
● Max temperature RT～1200℃ /1400.C / 1700.C optional.
● working area size is support customized.
● High quality heating elements on two or three sides, good furnace temperature uniformity
● High quality performance alumina ceramic fiber insulation materials
● 30 segments programmable and PID auto control, Temperature control accuracy ±1℃
● With over temperature alarm function
● High volume, high efficiency
Industrial atmosphere furnace details specification:
| Model: | SA2-12TP | SA2-14TP | SA2-17TP |
|
Dimensions: Internal D x W x H (mm): |
500x400x400mm, 500x500x500mm, 600x500x500mm, 600x600x600mm, 800x600x600mm, bigger size are available | ||
| Max. temperature(.C): | 1200 | 1400 | 1700 |
| Working temperature(.C): | 1100 | 1300 | 1600 |
| Power(KW): | Depend on chamber size, more bigger more big power. | ||
| Voltage(V): | AC 380V/ 415V /480V 3 phase 50/60Hz; | ||
| Thermocouple type: | K type | S type | B type |
| Heating element: | Electric Resistance wires | SiC rod | MoSi2 heater |
| Heating rate: | 0-30.C/min,10.C/min under 1400.C, 1400.C-1600.C 5.C/min | ||
| Tem. Precision: | +/-1.C ; | ||
| Temperature controller: | PID automatic control and auto-tune function.1 program with 30 programmable segments for precise control. Built in protection for over-heating and broken thermocouple. | ||
Standard Accessories
Thermal gloves | Crucible Tongs | Furnace Door Block | User Manual |Tools |
Optional
More KF port to meet different needs;
Touch screen control for choose;
RS485/USB port to connect computer for choose.
Chimney, door opening method, observation window, etc. are optional.

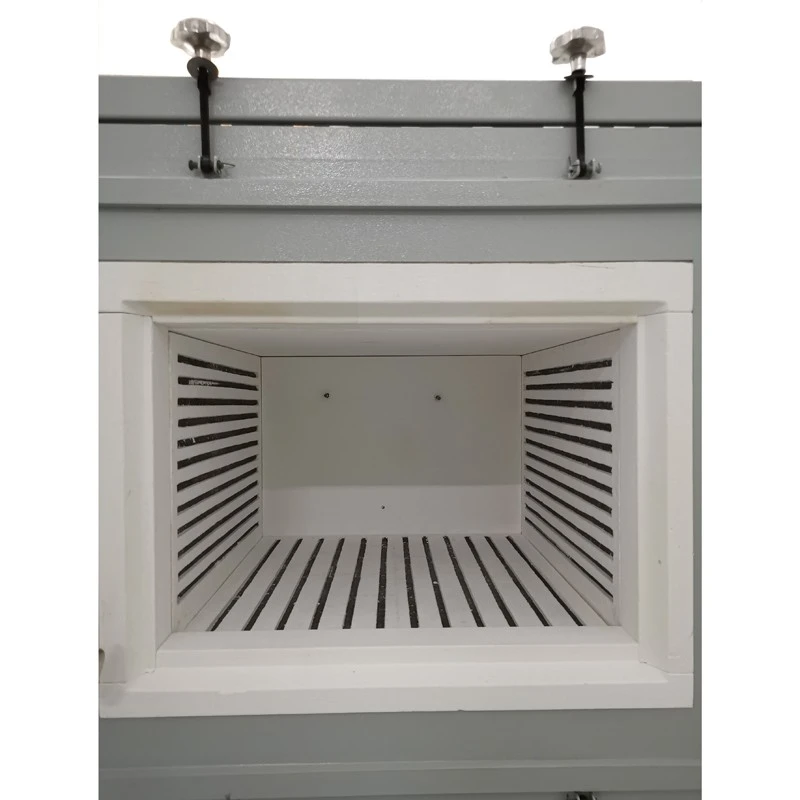

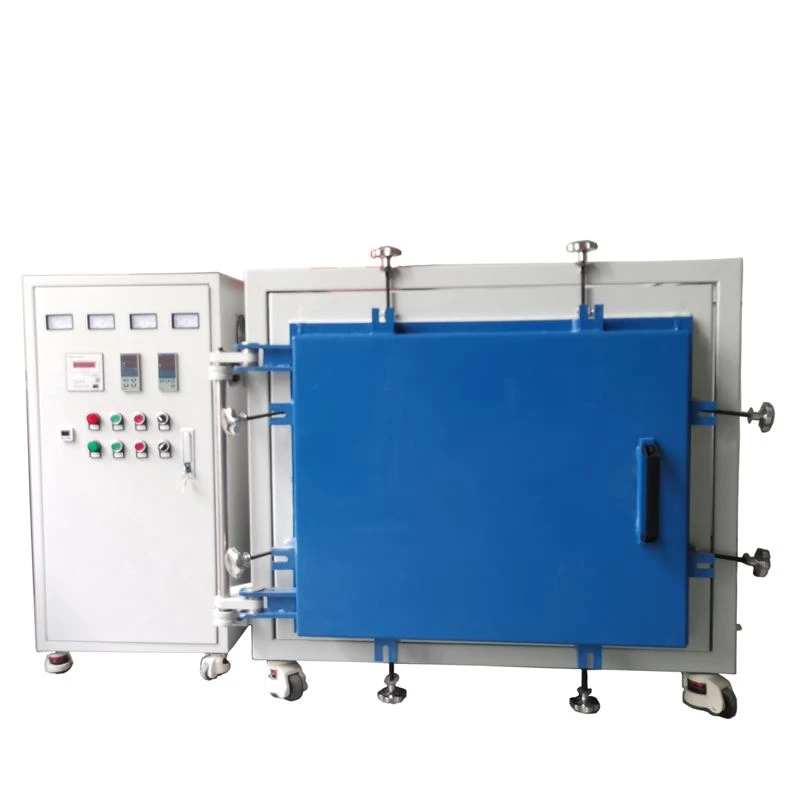

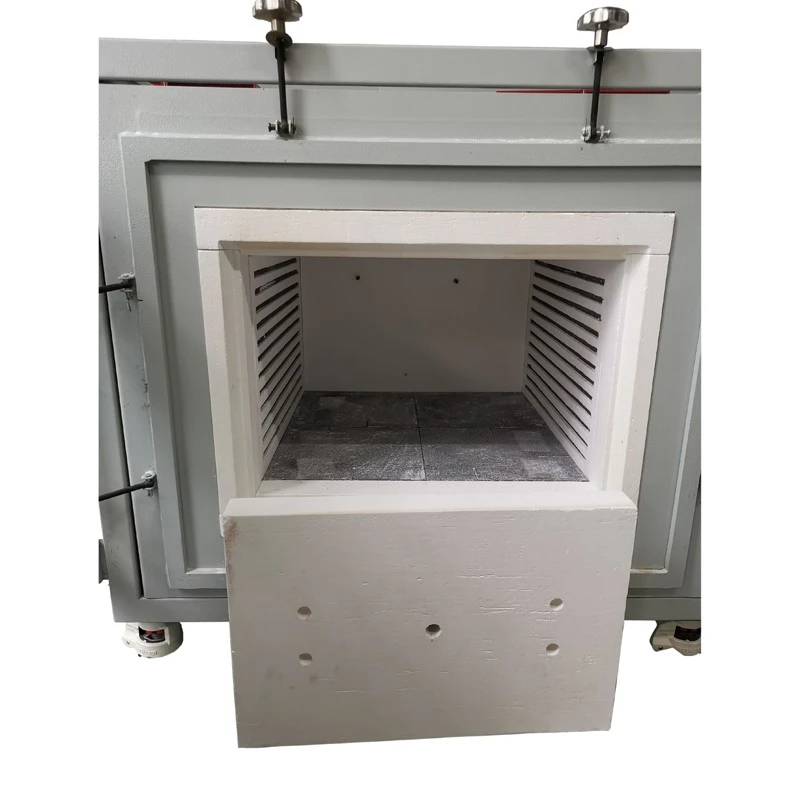

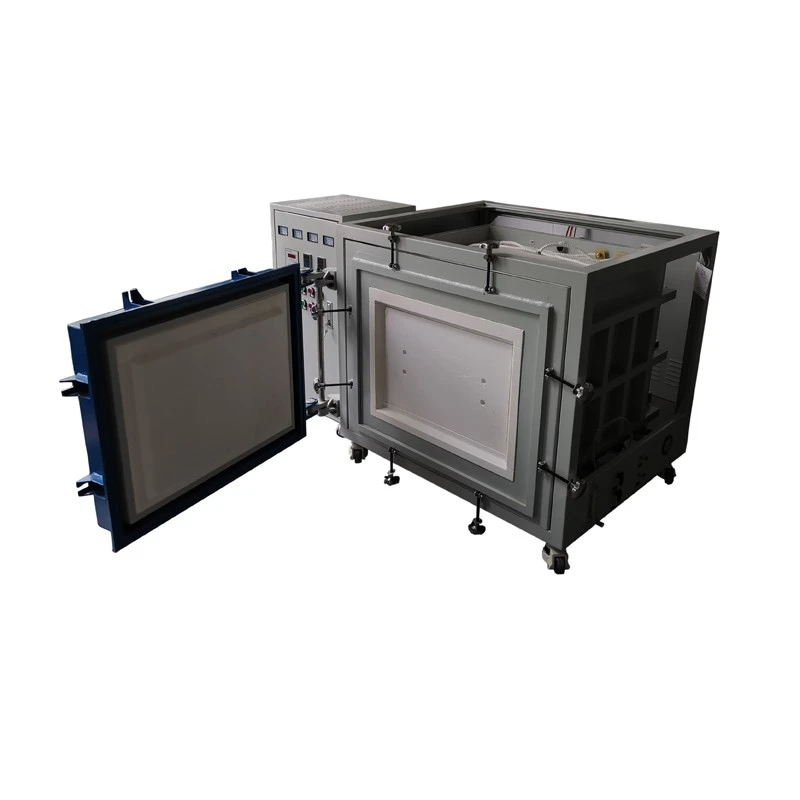

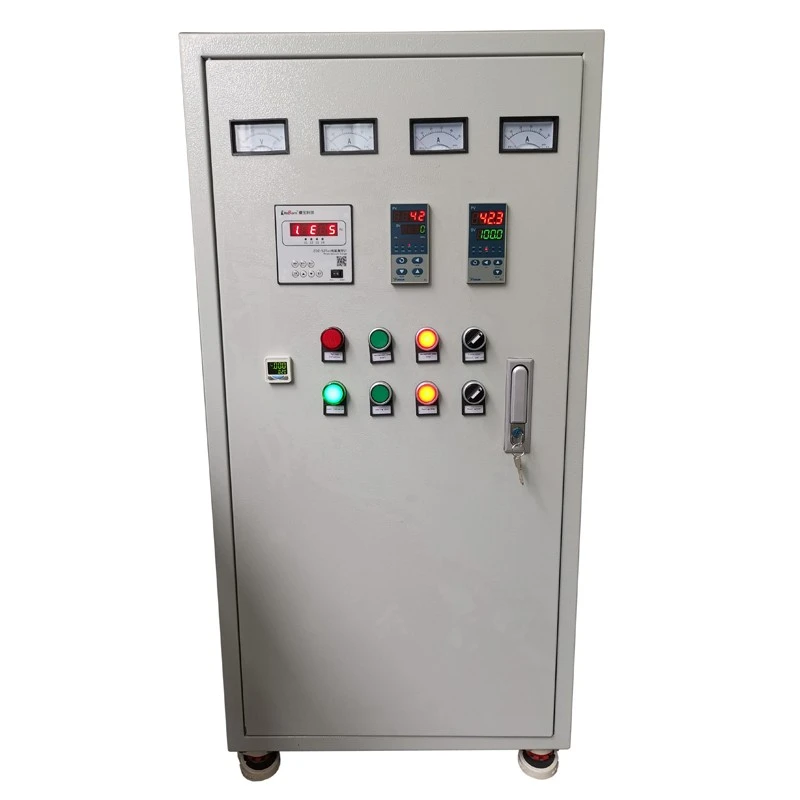

Detail picture for Industrial muffle furnace：
Application of Industrial atmosphere muffle furnace
Industrial atmosphere muffle furnace is widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc.
