Products Description
Hot pressing muffle furnace with observation window is high temperature laboratory furnace, A hot-pressing sintering furnace with a maximum temperature of 1200°C, it uses double carbon steel layer shell and 30 segement PID control. The electric furnace consists of high purity alumina polycrystalline fiber brick and high quality heating element. This furnace equips with air cooling system, which makes temperature cool and rise quickly. Hot pressing muffle furnace mainly used for high-temperature sintering and pressing of powders, You can also observe the pressing process and molding conditions through the observation window.
It is suitable for sample preparation and materials in the fields of precision ceramics, new materials, new energy, superconductivity, and other building materials. forming.
Feature
● Max temperature RT～1200℃
● Volume 1～1000L, support customized.
●Hot pressing molding, low cost
● High quality HRE resistance wire
● 5KG Pressure
● High temperature hot pressing sintering
|
Model |
SX2-1-12THP |
SX2-2-12HP |
SX2-3-12HP |
SX2-6-12THP |
SX2-9-12TPHP |
|
Dimensions: Internal D x W x H (mm) |
100*100*100 |
200*150*150 |
300*200*2*120 |
300*200*200 |
400*300*300 |
|
Dimensions: External D x W x H (mm) |
425*320*568 |
570*470*715 |
670*530*731 |
670*530*811 |
770*620*940 |
|
Max.temperature(℃) |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Volume (litres) |
1 |
4.5 |
7.2 |
12 |
36 |
|
Power(KW) |
1 |
2 |
3 |
6 |
9 |
|
Voltage(V) |
220 1P |
220 1P |
220 1P |
220 1P |
380 3P |
|
Thermocouple type |
K |
||||
|
Heating element |
HRE Alloy resistance wire |
||||
|
Indenter diameter |
5-100mm, customizable |
||||
|
Pressure head stroke |
10-200mm, customizable |
||||
|
Pressure |
1-200kg customizable |
||||
|
Temp.Precision |
±1℃ |
||||
|
Heating rate |
0-30℃/min free adjustment |
||||
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
||||
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
||||
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
||||
|
Certification: CE, ISO, SGS ect, more than 30 patent certifications |
|||||
|
Warranty: One-year warranty (excluding wearing parts) and long-term technical support |
|||||
|
Support OEM/ODM |
|||||
Standard Accessories
Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools |
Optional
Different chamber size for your choose;
50 segment program for choose
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
Chimney, door opening method, air intake hole,observation window, etc. are optional.

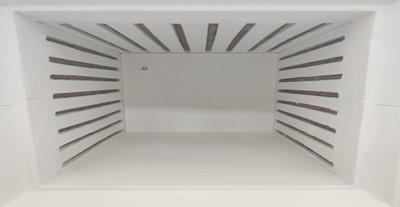

Detail picture for Hot pressing muffle furnace with observation window
Certificate
Our products have passed CE certification, SGS, UL, ISO9001 and other certificates.
