Products Description

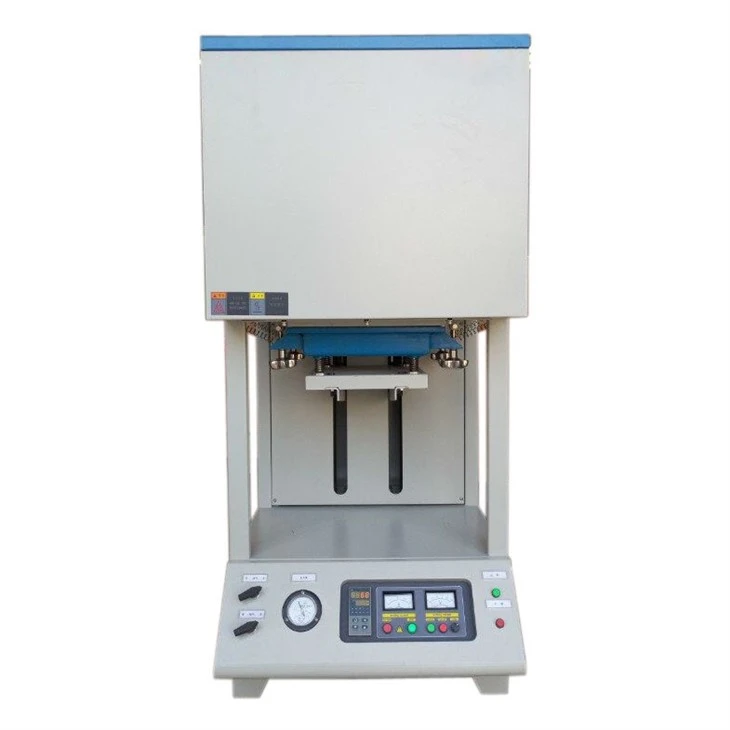

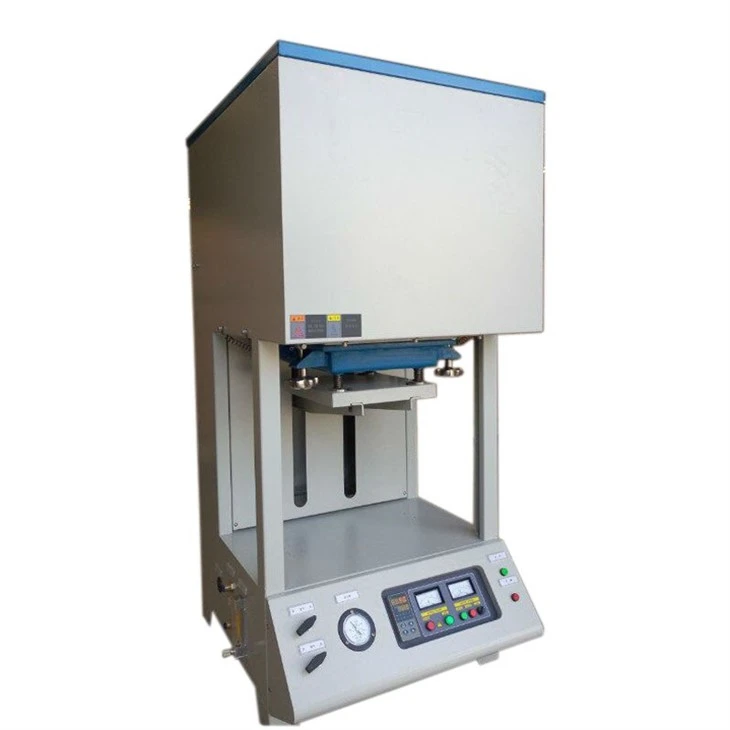

Elevator furnace is a bottom-loading and lifting electric furnace with four-sided heating elements, good furnace temperature uniformity, double-layer air-cooling structure, large loading capacity, and up to 30 segments intelligent temperature control options. It can be used for sintering in laboratories and small enterprises, annealing, tempering and other processes.

It is a special equipment developed specifically for sintering and melting analysis of metals, non-metals and other compound materials in laboratories of universities, scientific research institutes and industrial and mining enterprises.

Elevator Atmosphere Furnace Feature

● Max temperature RT～1200/ 1400/ 1700℃ optional ;

● Different chamber size optional ;

● Easy operation and high efficiency ;

● Making it easy to take out materials ;

Furnace Shell Structure:	Double-layer carbon steel plate shell, surface sprayed with heat resistant plastic powder coating to ensure that the outer surface temperature of the furnace is ≤40.C ;
Chamber Materials:	High-grade alumina fiber ceramic board and thermal insulation cotton.
Furnace door :	Bottom loading door ;
Max. Temperature:	1200.C	1400.C	1700.C
Continuous Working temperature:	1000.C-1100.C	1300.C	1600.C
Heating Element:	Fe-Cr-Al alloy resistance wires	SiC rod	MoSi2 rod
Thermocouple Type:	K type	S type	B type
Rated voltage & Power:	AC 110V/220V/380V/415V 50/60Hz; Power depend on chamber size.
Chamber size:	100x100x100mm, 200x150x150mm, 300x200x200mm, 400x300x300mm, bigger size is available.
Heating Rate:	0-30.C /min, Suggest to use 10.C/min under 1400.C,1400.C-1600.C 5.C/min,>1600.C 1-2.C/min
Temperature Precision:	±1.C ;
Temperature Controller:	Temp. Controller with 1 program storage capacity and 30 segments ramp & dwell; PID automatic control and auto-tune function. Built in protection for over-heating and broken thermocouple.
Optional parts:	Touch screen controller, paperless recorder, Remote communication control system, 2-4 gas mixing system, higher vacuum optional, Oxygen content detection,H2 safety device;
Warranty	One year limited warranty with lifetime support, excluding heating element, cooling fans, thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Accessories

Elevator Atmosphere Furnace Notes:

1. After the stove is used for the first time or not used for a long time, it should be baked at about 120°C for 1 hour and at about 300°C for 2 hours before use, so as not to cause cracking in the furnace.

2. The furnace temperature is low at first, a large amount of heat absorption is required, so the heating rate of the low temperature section should not be too fast, and the difference between the heating rates of each stage should not be too large, and the physical and chemical properties of the sintered material should be fully considered when setting the heating rate, so as to avoid the phenomenon of spraying materials and polluting the furnace.

3. The heating element of silicon-molybdenum rod should not be operated for a long time in the temperature range of 400-700°C, otherwise low-temperature oxidation will occur and the service life will be affected.

4. The furnace temperature should not exceed the rated temperature to avoid damage to the heating element and the furnace lining.

5. The cooling rate should not exceed 10°C/min, and refractory blocks must be inserted before closing the door.

6. In order not to affect the service life of the instrument, it is recommended to raise the temperature at 10°C/min

7. The furnace door can only be opened after the temperature in the furnace becomes normal temperature, the sample temperature may still be high at this time, please pay attention to wear high-temperature gloves for operation;

8. It is normal for small cracks to appear on the surface of the refractory after long-term use.

9. This chamber furnace has no vacuum sealing, and cannot be passed into flammable, explosive, toxic and corrosive gases;

Detail picture

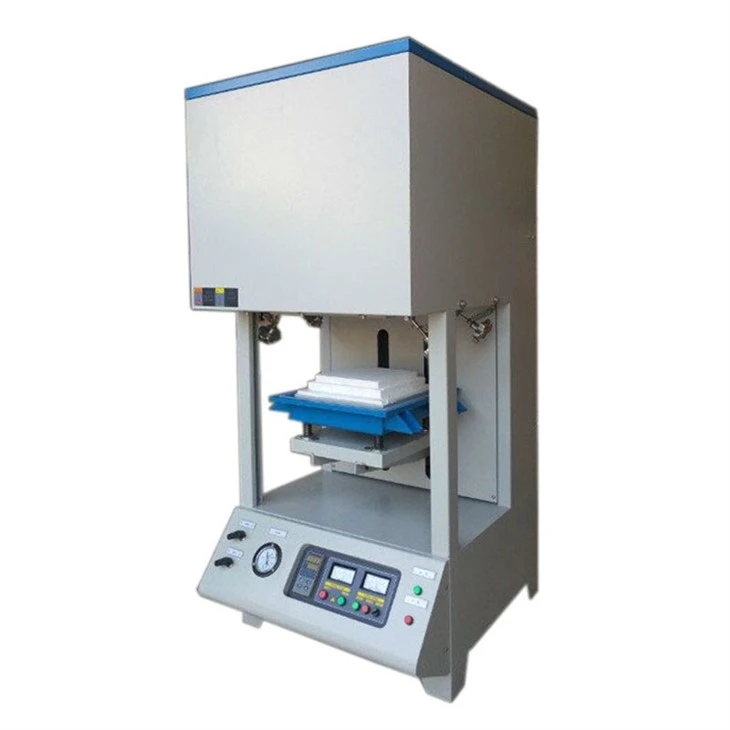

Bottom loading door for easy operation

High quality heating element with polycrystalline insulation chamber furnace

Electric putter

LCD highly intelligent instrument, 30-segment program with PID control

Multifunctional and complete control panel, easy to use and operate

High-quality wear-resistant Fuma wheels, good load-bearing

Elevator Atmosphere Furnace Application

Elevator Atmosphere Furnace are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges, such as sintering , annealing, tempering, quenching and other processes.

Laboratory

Metal

Ceramic

Semiconductor

Chemical

Glass
