Feature
This SK2-4-14TPC3 can operate continuously at 1300℃ in terms of application, using high-quality silicon carbon rods with a maximum temperature of 1400℃. It has a non openable appearance, and one end of the furnace tube is a common flange, while the other end is a quick connect stainless steel flange. The temperature accuracy is+/-1℃.

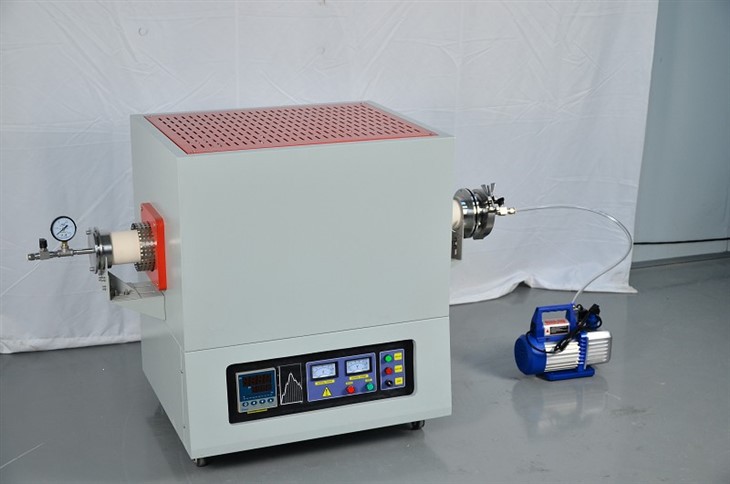

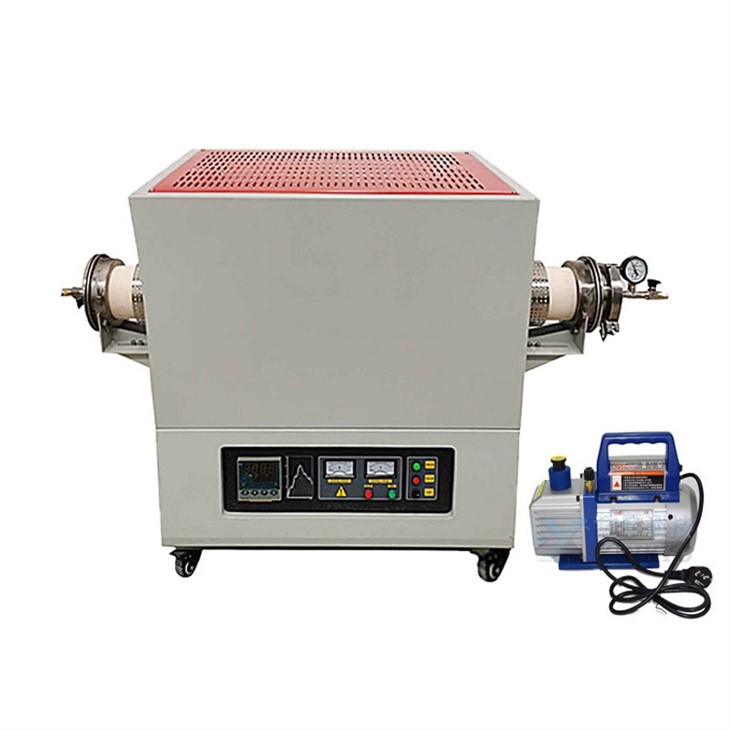

Detail of 1400℃ Horizontal vacuum tube furnace
|
Model |
SK2-4-14TPC3 |
|
Dimensions: Standard Heating zone length (mm) |
350mm |
|
Dimensions: Standard Tube diameter (mm) |
∮80mm |
|
Max.temperature |
1400℃, Continuous working temperature 1300℃. |
|
Voltage(V) |
220 1P |
|
Thermocouple type |
S(1400℃) |
|
Heating element |
SIC Heater(1400℃) |
|
Temp.Precision |
±1℃ |
|
Heating rate |
0-15℃/min free adjustment |
|
Chamber material |
Using advanced high-quality 1400 model alumina microcrystalline fiber material |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ Cooling fan can reduce the temperature of the casing. |
|
Temperature controller |
PID control with 50segments. LED display. |
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
-0.1Mpa Use Stainless steel vacuum flange with vacuum gauge, valve; Easy to unload, double seal
|
|
WELCOME OEM/ODM |
|
Standard Accessories
Thermal gloves | Crucible hook | Thermocouple | Tube Block | User Manual |Tools | Vacuum pump| Quartz or Alumina tube |Flange |Sealing ring |10mm gas hose |Flange support | heater
Optional
Different heating zone for your choose;
LCD touch screen control for choose
RS485 port to connect computer for choose.
Three/Four gas channels
Detail picture
Application prompt
1. We come with detailed instructions for use at the factory, including the setting of temperature control heating curves.
2. Of course, we have videos on how to replace the furnace tube, install it, and use the flange.
3. AI203 99% alumina tubes are resistant to high temperatures, but their performance is poor when subjected to rapid cooling and heating, so we provide instructions for using alumina tubes.
4. If you have any questions, please contact us within 3 days after receiving the device, and we will reply within 24 hours.
