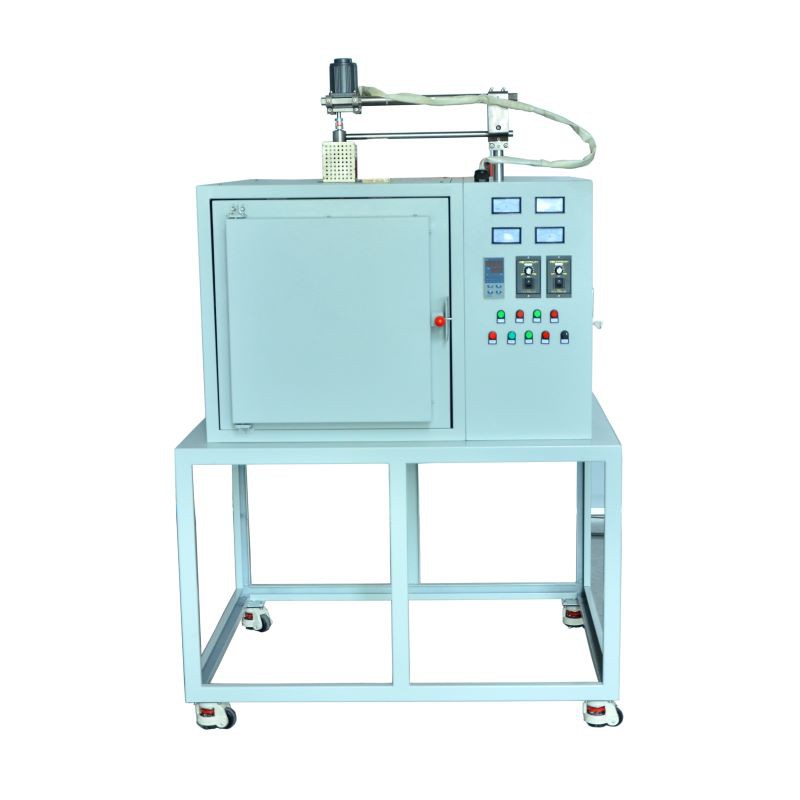

Muffle Furnace With Stir Function

SX2-STIR-12TP is Muffle furnace with stir function.The furnace is equipped with a stirring function inside, and the stirring rod can be raised, lowered, stirred, and stopped with buttons. Maximum temperature of 1200 degrees, 80L internal large space resistance wire heating element, 30 segment intelligent temperature control.

Send Inquiry

Product No: SX2-STIR-12TP

Functional features:
1. The Muffle furnace with stir function is made of high-purity aluminum oxide material, and the heating element resistance wire is embedded inside the furnace, which is heated on three sides
(Left, right, top), with good thermal insulation effect and large volume, it can meet the needs of experiments and small batch production of materials.
2. Set temperature upper limit alarm, over temperature protection, and unmanned operation.
3. Temperature control accuracy ± 1 ° C
4. The shell temperature shall not exceed 60 degrees.

Basic parameters of Muffle furnace with stir function:

Maximum operating temperature: 1200° C
Rated temperature for long-term operation: 1100° C
Furnace size: 500 * 400 * 400mm
Suggested heating rate: ≤ 10 ° C/min
Thermocouple: K-type
Heating element: resistance wire
Power supply: AC380,50 OR 60Hz
Rated power: 12kw

Please feel free contact us for more details information.

Muffle furnace with stir function product structure:
1. Double layered shell, external insulation layer of the furnace, with insulation cotton on the outside of the insulation layer, and an air-cooled circulation system at the bottom.
2. The furnace is heated on three sides, resulting in a more uniform furnace temperature and a faster heating rate.

product key technologies

03.

The inner surface of the furnace is coated with a protective layer, which can improve reflectivity and heating efficiency, prevent powder shedding, and improve service life.

04.

Mixing button, up, down, stop, rotate
Internal detail diagram display
