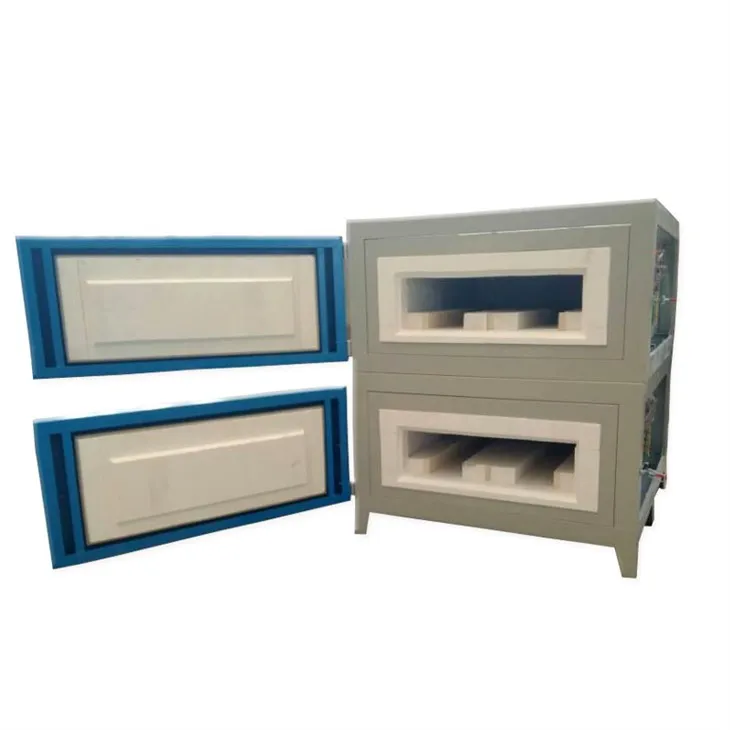

Laboratory Ashing Furnaces

laboratory ashing furnaces is high temperature laboratory furnace, it uses double carbon steel layer shell and 30 segement PID control. The electric furnace consists of high purity alumina polycrystalline fiber brick and high quality heating element. This furnace equips with air cooling system, which makes temperature cool and rise quickly.
It is a special equipment developed specifically for sintering and melting analysis of metals, non-metals and other compound materials in laboratories of universities, scientific research institutes and industrial and mining enterprises.

● Different temperature range optional;

● PID automatic control and auto-tune function.

● Intelligently programmable controller, Set program freely;

● Double chamber can be put vertical, loading by forklift easy;

● Different chamber size can be customized.

Door block 1set, crucible tongs 1pc, Thermal gloves 1 pair, Operation manual 1pc.

1. After the stove is used for the first time or not used for a long time, it should be baked at about 120°C for 1 hour and at about 300°C for 2 hours before use, so as not to cause cracking in the furnace.

2. The furnace temperature is low at first, a large amount of heat absorption is required, so the heating rate of the low temperature section should not be too fast, and the difference between the heating rates of each stage should not be too large, and the physical and chemical properties of the sintered material should be fully considered when setting the heating rate, so as to avoid the phenomenon of spraying materials and polluting the furnace.

3. The heating element of silicon-molybdenum rod should not be operated for a long time in the temperature range of 400-700°C, otherwise low-temperature oxidation will occur and the service life will be affected.

4. The furnace temperature should not exceed the rated temperature to avoid damage to the heating element and the furnace lining.

5. The cooling rate should not exceed 10°C/min, and refractory blocks must be inserted before closing the door.

6. In order not to affect the service life of the instrument, it is recommended to raise the temperature at 10°C/min

7. The furnace door can only be opened after the temperature in the furnace becomes normal temperature, the sample temperature may still be high at this time, please pay attention to wear high-temperature gloves for operation;

8. It is normal for small cracks to appear on the surface of the refractory after long-term use.

9. This chamber furnace has no vacuum sealing, and cannot be passed into flammable, explosive, toxic and corrosive gases;

Laboratory Ashing Furnaces

Simple door handle lock, easy to open and close

LCD Programmable Temp. controller,30-segment program with PID control

High quality heat resistant fire blocking bricks

Reasonable layout control panel, easy to use and operate

Be used in a wide range of Laboratory Ashing Furnaces



Laboratory

Metal

Ceramic

Electronics

Chemical

Glass
