Name: China Dental Sintering Oven Of 3D Printing Manufacturers Suppliers - Good Price - XINYU
Brand: Xinyu
SKU: 244401281

Dental sintering oven of 3D printing Products Description

Dental sintering oven of 3D printing also known as vacuum annealing furnace, vacuum atmosphere sintering furnace, etc., The furnace can insert all inert gas with vacuum -0.1Mpa.

Choosing the appropriate protective gas to sinter different materials will help with the sintering process, improve product density, and enhance product performance. Nitrogen atmosphere furnaces typically use various inert gases, including vacuum, hydrogen, oxygen, nitrogen, and argon. For example, transparent alumina ceramics can be sintered in a hydrogen atmosphere, while transparent ferroelectric ceramics are suitable for sintering in an oxygen atmosphere; Aluminum nitride and other nitride ceramics are suitable for sintering in a nitrogen atmosphere, and there are also more reducing atmosphere tests available.

Technical parameters

Nitrogen atmosphere furnace

Model	SA2-2-14TP	SA2-4-14TP	SA2-9-14TP	SA2-16-14TP
Max.design(℃)	1400	1400	1400	1400
Internal dimensions: D x W x H (mm)	100100100	200150150	300200200	400300300
Power(KW)	2KW	4KW	9KW	16KW
Voltage(V)	220V 1P	220V 1P	220V 1P	380V 2P
Volume (litres)	1	4.5	12	16
External dimensions: Dx W x H (mm)	490547769	630605900	740645980	8758051110
Thermocouple type	S
Max.vacuum	-0.1Mpa
Heating rate	0-10C/min
Heating element	High quality Sic heater
Temp.Precision	±1℃
Gas Control	The air inlet can be equipped with one or more air inlets, each of which is equipped with a ball valve and connected to a vacuum gauge. The air outlet is connected to an outlet hole, and all holes are equipped with ball valves. The maximum positive pressure in the furnace does not exceed 0.02Mpa
Vacuum system	Single-stage rotary vane pump Maximum limit 5Pa Optional double-stage rotary vane pump
Sealing method	The furnace door adopts the overall surface grinding and milling, and the silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close.
Standard Accessories Vacuum pump\|Spare heating element\|Thermal gloves \| Crucible Tongs \| Thermocouple \| Furnace Door Block \| User Manual \|Tools \|
Certification: CE, ISO, SGS ect, more than 30 patent certifications
Warranty: One-year warranty (excluding wearing parts) and long-term technical support
Optional: Different chamber size for your choose; 50 segment program for choose LCD touch screen control for choose RS485/USB port to connect computer for choose. Working temeprature,Max.vacuum for choose Welcome OEM,ODM

Product details

Dental sintering oven of 3D printing

The hand wheel nut rotates, the furnace door seals more firmly

SIC heater for maximum temperature 1400℃

Equipped with vacuum port, air inlet, pressure regulating valve, pressure gauge and other configurations to achieve multi-function

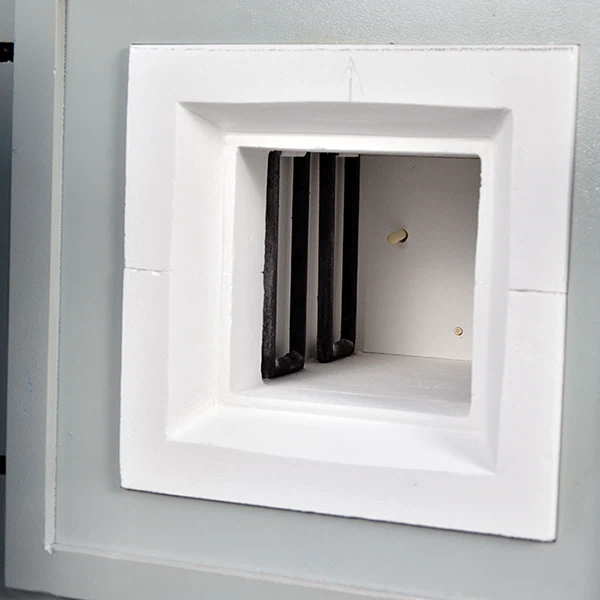

Furnace chamber show

1600 model Insulation materials

Product Application

Be used in a wide range of Dental sintering oven of 3D printing

Dental Laboratory

Titanium alloy material

Ceramic

3D printing dental models

Cobalt alloy material

Glass

Company introduction

Nanyang Xinyu New Material Technology Co.ltd

Nitrogen atmosphere furnace is a professional equipment for heat treatment. Many new equipment, new technologies and new functions in the world need us to research and develop. The high temperature heat treatment electric furnace produced by our company exists for this purpose. This is a great project loved by both at home and abroad.

Professional team

R&D Team more than 10 peoples
Two factory,one for furnace frame,one for assembly and testing,packing.

7x24 hours After-sales service

The after-sales response time shall not exceed 24 hours.
