Products Description

Vertical tube furnace is a kind of tube furnace. It adopts a structure in which the tube and the heating furnace body are in a vertical state. The two ends are sealed with stainless steel flanges. The atmosphere can be passed and the vacuum can be drawn. The sample is hoisted through the top flange for sintering. The furnace tube can be selected from stainless steel tubes, quartz tubes, and alumina tubes according to different working temperatures. Single temperature zone or multi-temperature zone can also be selected according to working conditions. Vertical tube furnace is mainly used for heat treatment of small dry materials and vertical CVD coating, etc.

Technical parameters

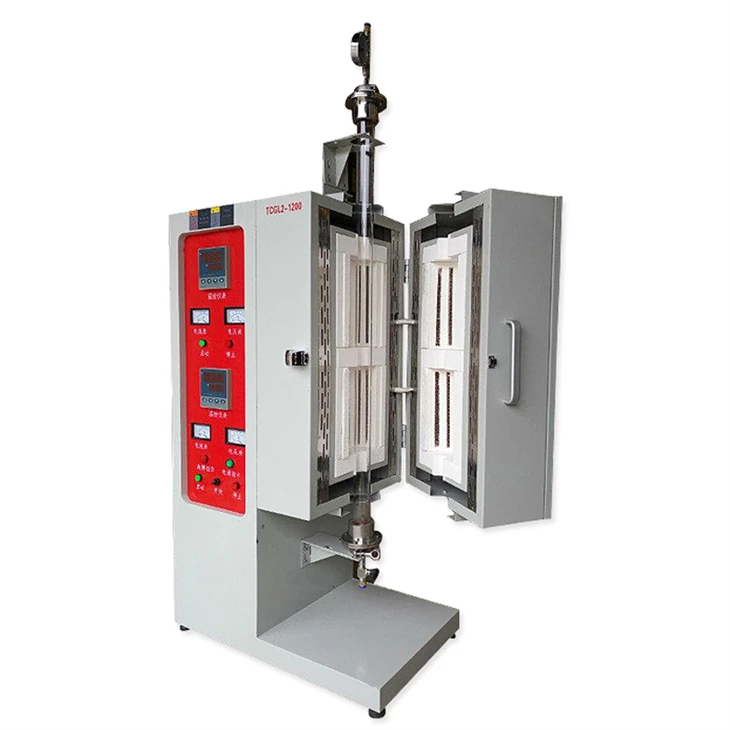

Vertical split tube furnace

Model	SK2V-12TP
Max.design(℃)	1200
Working temperature(℃)	0-1100
Tube diameter(mm) D x W x H (mm)	60mm or customized
Heating zone length(mm)	350mm or customized
Voltage(V)	220V 1phase
Thermocouple type	K
Max.vacuum	-0.1MPa
Heating rate	0-20C/min
Temp.Precision	±1℃
Furnace structure	Double-layer air-cooled structure, surface temperature is less than 60℃
Furnace chamber material	1430℃ grade Alumina ceramic firber refractory chamber
Inlet gas/Atmosphere	It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc,The maximum positive pressure does not exceed 0.02Mpa
Gas control	It has an air inlet and an air extraction hole with a ball valve, which can be connected to a vacuum pump and a flow meter can be added.
Sealing way	Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing
Temperature control security	The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.
Temperature controller	Adopting advanced temperature instruments, 30 segment programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling
