Products Description

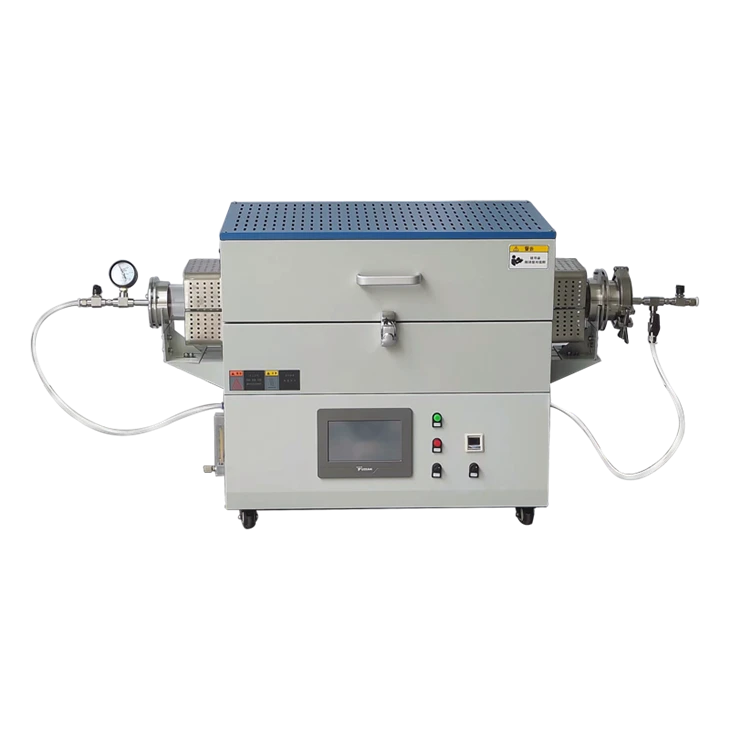

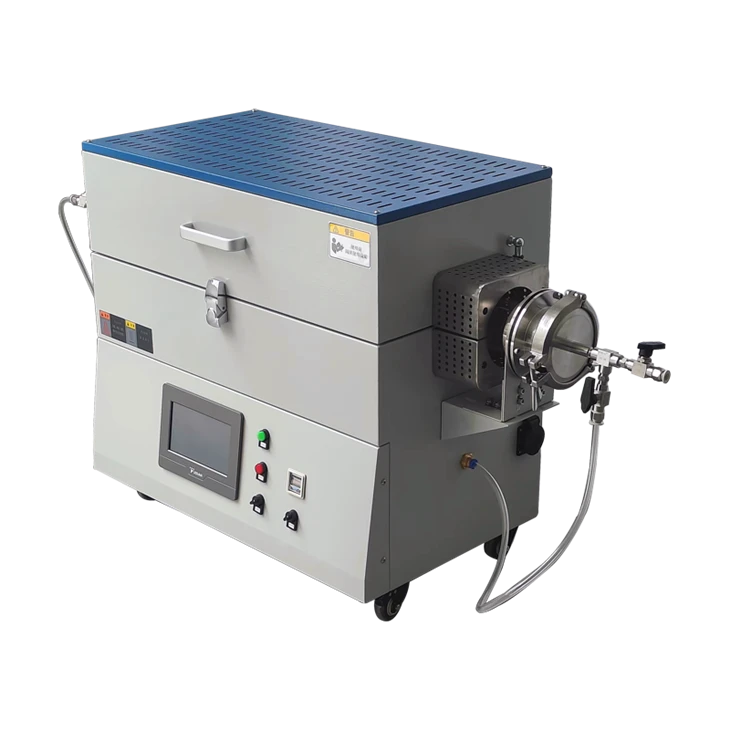

Glass tube furnace uses high-purity glass quartz tubes as furnace tubes. It has a clean environment, corrosion resistance, good sealing, and temperature control with an intelligent touch screen. It can set 10 30-segment curves, display temperature curves, record and export data, and customize pressure relief devices to prevent excessive pressure in the furnace. It is suitable for laboratories, universities and research institutions to do sintering annealing of metals, powders and other materials.
Technical parameters
Glass tube furnac
| Model | SK2-12TP |
| Max.design(℃) | 1200 |
| Working temperature(℃) | 0-1100 |
|
Tube diameter(mm) D x W x H (mm) |
40/60/80/100/120/150/200/250/300mm optional or customized |
| Heating zone length(mm) | 205/350/440mm optional or customized |
| Voltage(V) | 220V 1phase |
| Thermocouple type | K |
| Max.vacuum | -0.1Mpa |
| Heating rate | 0-20C/min |
| Temp.Precision | ±1℃ |
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ |
| Furnace chamber material | 1430℃ grade Alumina ceramic firber refractory chamber |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc,The maximum positive pressure does not exceed 0.02Mpa |
| Gas control | It has an air inlet and an air extraction hole with a ball valve, which can be connected to a vacuum pump and a flow meter can be added. |
| Sealing way | Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Vacuum system | Single-stage rotary vane pump |
| Temperature controller | Adopting advanced temperature instruments, 30 segment programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
| Pressure relief device | The equipment can be equipped with an automatic pressure relief device as needed. When the pressure inside the furnace exceeds 0.02Mpa, the solenoid valve automatically releases the pressure. |
|
Standard Accessories Quartz tube|SS flange|vacuum pump|Thermal gloves | Crucible Tongs | Thermocouple | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support |
Product details
Glass tube furnace
Product Application
Be used in a wide range of Glass tube furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
Company introduction
Glass tube furnace is a professional equipment for heat treatment. Many new equipment, new technologies and new functions in the world need us to research and develop. The high temperature heat treatment electric furnace produced by our company exists for this purpose. This is a great project loved by both at home and abroad.
Professional team
1,000+ experts worldwide
Senior project managers effectively control all aspects of the project
7x24 hours delivery
Located in 27 cities around the world,with 50 delivery centers,providing 200+ languages,7x24 hours delivery capacity,is the best partner for enterprise globalization
834M
Total Freelancer
732M
Positive Review
90M
Order recieved
236M
Projects Completed
Certification
Honor and qualification
Official certification, professional after sales service.
CE
CE
CE
ISO9001
SGS
FAQ
Q: Are you Glass tube furnace manufacturer?
Q: What kind terms of payment can be accepted?
Q: Can l ask for customized furnace?
Q: What about the delivery time?
Q: What about the guarantee period?
Q: What about the Minimum Order Quantity?
Hot Tags: glass tube furnace, China glass tube furnace manufacturers, suppliers
