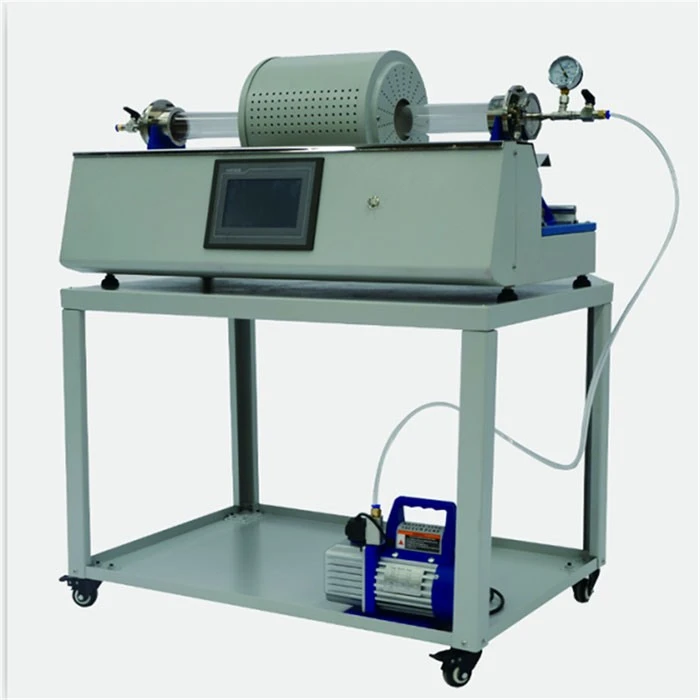

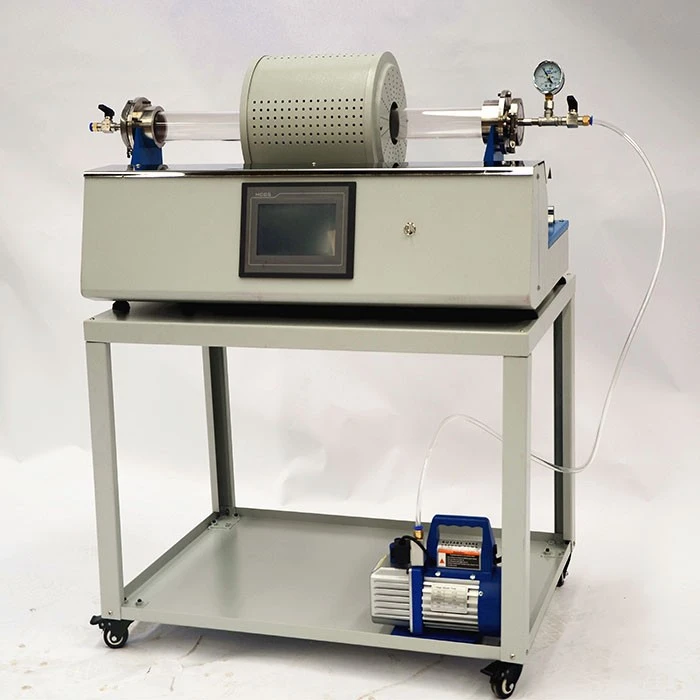

Products Description of chamber-movable furnace
Chamber-movable furnace sliding tube furnace is particularly suitable for occasions that require rapid thermal processing and fast cooling, and is widely used in semiconductor manufacturing. The temperature zone design allows independent temperature control and slow cooling, which is realized through sliding. 30 sections of temperature time program, precise control, accuracy ±1℃; table cabinet design, ergonomic. Mobile pulley design allows easy movement.
Products Features of Sliding tube furnace
1.1200C maximum, 1100C continuous working temperature.
2.High temperature zone design, tube diameter OD40~300mm optional, heating zone 205/350/440mm or customized optional
3.Sliding door design, convenient for observing materials and placing tube
4.50-stage temperature-time control program, accuracy ±1℃, touch screen optional
5.Voltmeter and ammeter included, easy to troubleshoot
6.Table design, easy to place material
7.Sliding stability
8.Can be filled with inert atmosphere, can be vacuumed
Details of chamber-movable furnace
Standard packaging accessories
Standard parts in package.
Vacuum pump
The vacuum upto -0.1Mpa.
chamber-movable as you need
After sintering is completed, moving the furnace body can quickly cool the sample
Furnace body bracket
Desk design with Ergonomics,material storage with convenience,wheels easy to move with brake function.
Products Specifications of Sliding tube furnace SK2 series
| Temperature | Max 1200℃,continious working 1100℃ |
| Heating zone | OD40mm,zone length 205mm or customized available |
| Heating rate | ≤30℃/minute(if Halogen tube then 300℃/min) |
| Heating element | HRE resistance wire(Halogen tube available) |
| Chamber | 1430℃ grade Alumina ceramic firber refractory chamber |
| Temperature controller | Yudian temperature controller,PID control,30segments temperature-time programs;±1℃ accuracy;over heating protection,broken thermocouple alarm,indepent control(touch screen version optional) |
| Furnace Sliding | Support(manually and electronic optional) |
| Tube material | High purity Quartz |
| Power | Based on heating zone selection+temperature,voltage/phase can be totally as per client's local facility environment |
| Wheels | Included |
| Atmosphere filled in | Support |
| Vacuum pump | Optional |
| Max vacuum | -0.1Mpa or as per client's indication |
| Warranty | 1years warranty with lifetime support(excluding consumable accessories) |
| Certification | CE,ISO9001:2016,SGS |
Warm tips of chamber-movable furnace
1. The air pressure in the furnace tube shall not be higher than 0.02MPa
2. Since the internal air pressure of the gas cylinder is high, the pressure reducing valve must be installed on the gas cylinder when the gas is fed into the furnace tube. To ensure safety, it is recommended to use a pressure lower than 0.02MPa
3. When the furnace body temperature is higher than 1000 ℃, the furnace tube shall not be in a vacuum state, and the pressure in the furnace tube shall be equivalent to the atmospheric pressure
4. The gas flow into the furnace tube shall be less than 200SCCM to avoid the impact of cold air flow on the hot furnace tube
5. For the sample heating experiment, it is not recommended to close the air extraction valve and air inlet valve at the flange end of the furnace tube. If it is necessary to close the gas valve to heat the sample, pay attention to the indication of the pressure gauge at all times. If the air pressure indication is greater than 0.02MPa, the exhaust valve must be opened immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.)
