Products Description of Zirconia sintering furnace
1700C dental zirconia sintering furnace is a very popular one for dental field. The touch screen TC design allows real-time viewing of temperature curves and data sheets, and can be exported to the computer for viewing, analysis and printing. The temperature controller has PID control, 10X50 segment program, and accuracy of ±1C. The latest alumina ceramic fiberboard refractory material is highly efficient and energy-saving, and the thermal insulation and insulation effect are very good, clean and stable. SX2-2-17TP is a good hand for dental experts, affordable price, reliable quality, welcome to buy.
Features of zirconia sintering furnace
1. Maximum 1700C, commonly used 1600C
2. Touch screen temperature controller, temperature curve and data sheet visualization,also can be exported to U disk for storage
3. PID control, 10X50segments temperature-time programs,accuracy ±1C
4. Compact design, does not take up space
5. Over heating protection,upper temperature limit protection,voltage overload protection,current overload protection
6. 220V/110V support
7. CE certifed
Technical parameters of zirconia sintering furnace
| Model | SX2-2-17TP |
| Max.design(℃) | 1700C,continious using 1600C |
|
Internal dimensions: D x W x H (mm) |
100*100*100MM |
| Power | 220V 1phase 2KW 50/60HZ(110V support to by extra 2weeks lead time) |
| Volume | 1Litre |
| Thermocouple type | B tyoe |
| Heating rate | 0-30C/min |
| Temp.Precision | ±1℃ |
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ |
| Furnace chamber material | 1700C grade alumian ceramic fiber refractory board chamber |
| Heating element | High grade MoSi2 heating element(2sides heating) |
| Temperature controller | Touch screen design, temperature time curve and data sheet visualization, PID control, ±1C, 10X50 segment program, over-temperature protection, storage memory function, data can be exported to a USB flash drive and viewed, analyzed and printed on a computer |
| Safety system | Over temperature protection, over voltage protection, over current protection |
|
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO9001:2015 certification provided | ||||
| Warranty: One-year warranty (excluding wearing parts) and lifetime technical support |

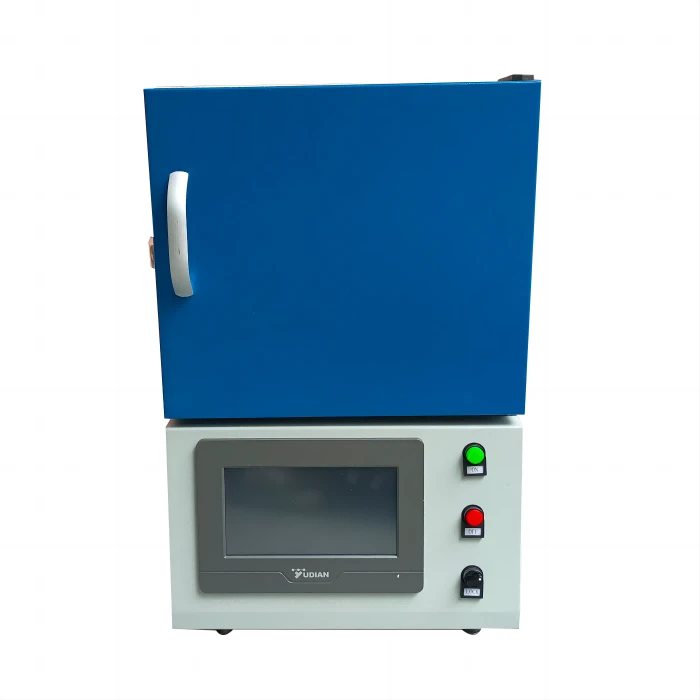

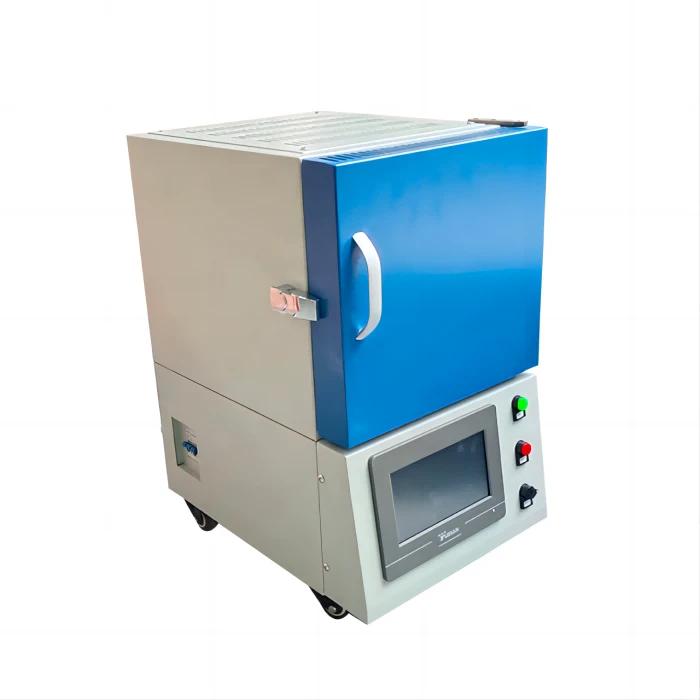

Product details OF zirconia sintering furnace
Certifications
CE
CE
CE
ISO9001
CE
FAQ
Q: Are you zirconia sintering furnace manufacturer?
Q: What kind terms of payment can be accepted?
Q: Can l ask for customized furnace?
Q: What about the delivery time?
Q: What about the guarantee period?
Q: What about the Minimum Order Quantity?
