Products Description
Dental muffle furnace is a small dental heat treatment equipment, which is mainly used for the sintering of zirconia in the dental industry. The working temperature can reach 1600 degrees. It uses high-quality silicon-molybdenum rod heating elements. The temperature control can be set to 30 sections, with climbing, staying, downhill and other programs. It has an over-temperature alarm and is an economical and affordable high-temperature equipment for sintering zirconia materials.
Technical parameters
Dental muffle furnace
| Model | SX2-2-17TP | |||
| Max.design(℃) | 1700 | |||
| Working temperature(℃) | 0-1600 | |||
|
Internal dimensions: D x W x H (mm) |
100*100*100 | |||
| Power(KW) | 2 | |||
| Voltage | 220V 1P | |||
| Thermocouple type | B | |||
| Heating rate | 0-10C/min | |||
| Temp.Precision | ±1℃ | |||
|
External dimensions: Dx W x H (mm) |
425*320*568 | |||
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
| Temperature controller | Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling | |||
|
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
| Optional:
Different chamber size for your choose; 50 segment program for choose LCD touch screen control for choose RS485/USB port to connect computer for choose. Chimney, door opening method, air intake hole, observation window, etc. are optional. |
||||
Product details

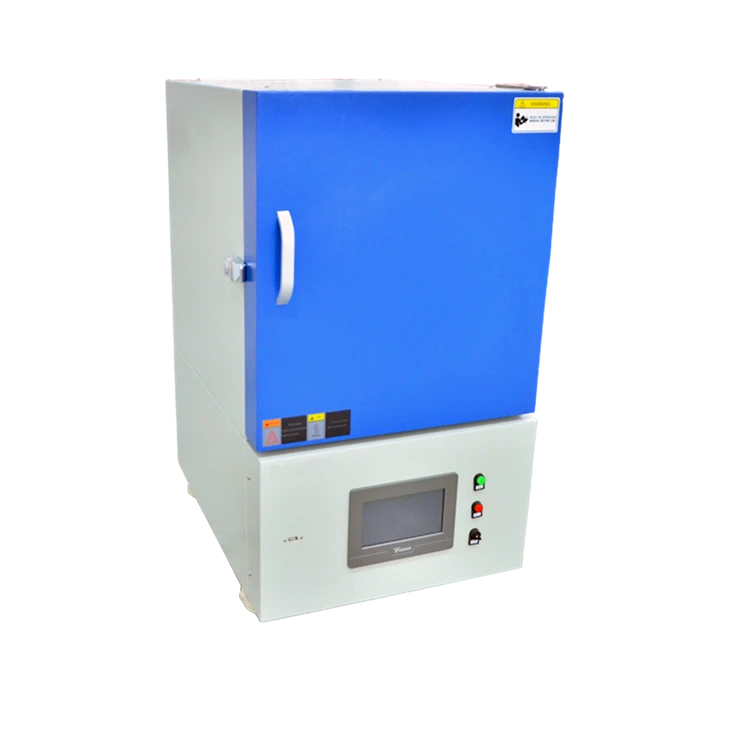

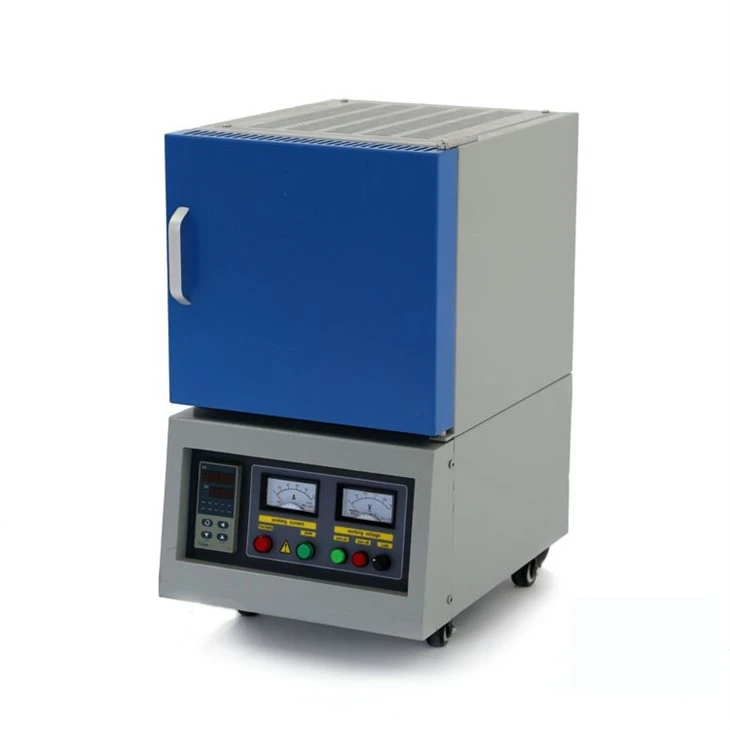

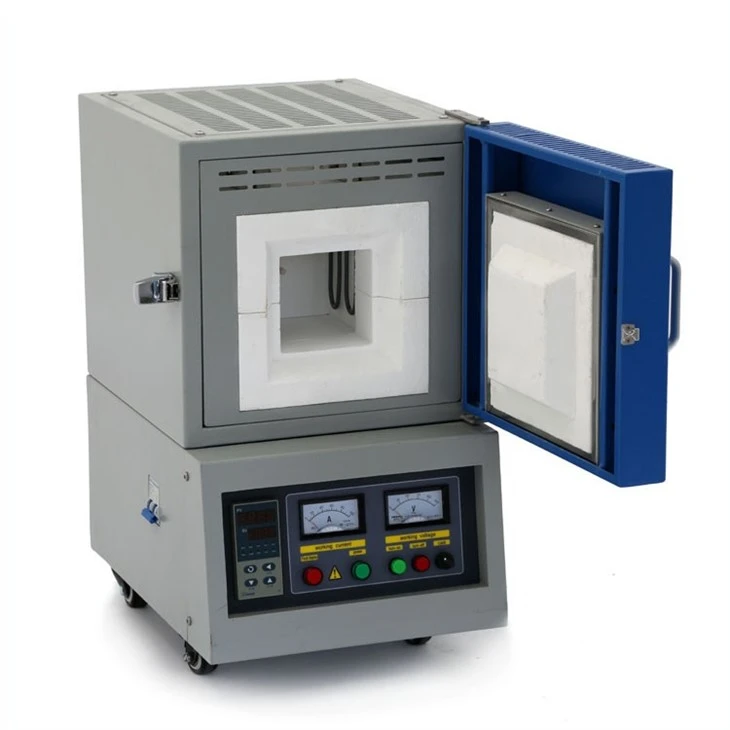

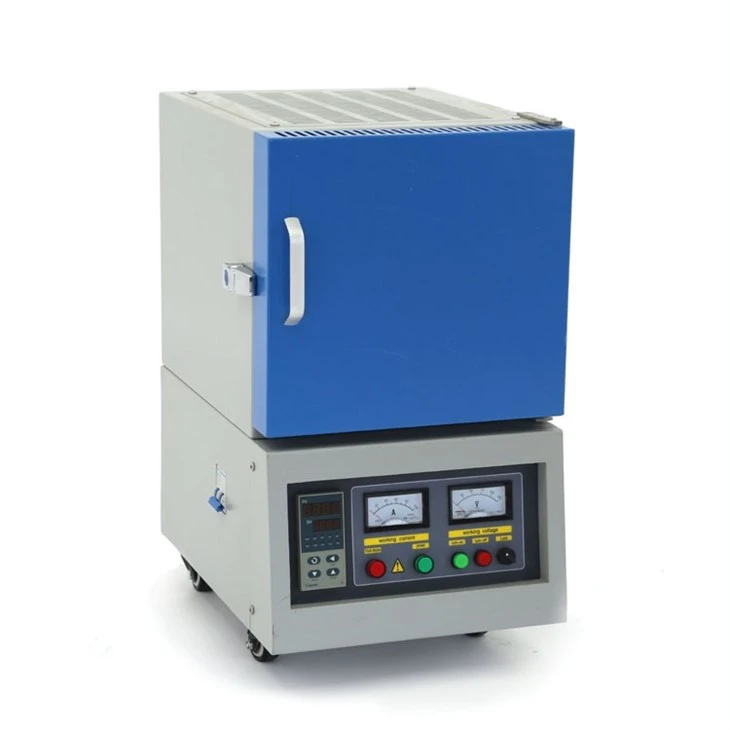

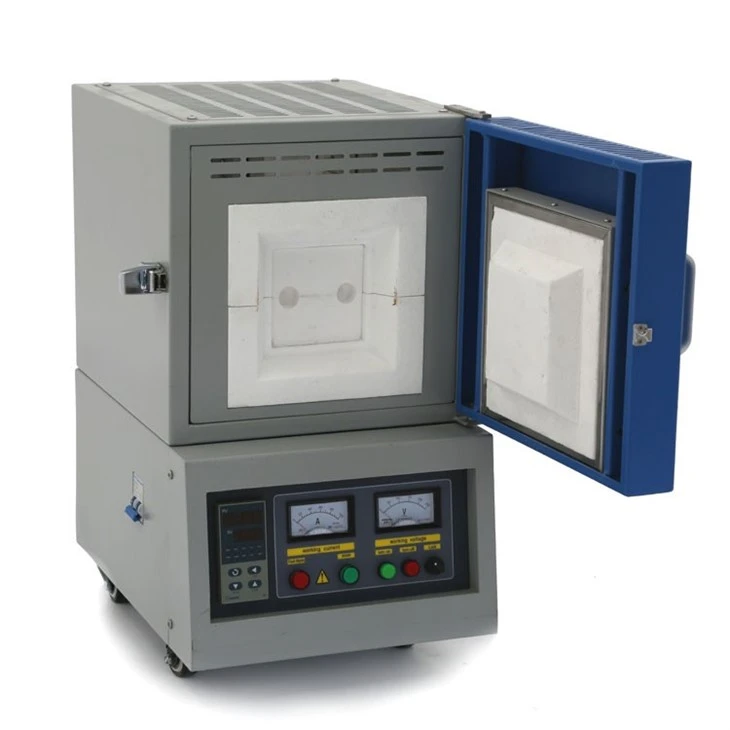

Dental muffle furnace
Snap-on door lock, easy to operate and firm
High quality heating element with polycrystalline insulation chamber furnace
High quality heat resistant fire blocking bricks
Touch screen temeprature controller
Product Application
Be used in a wide range of Dental muffle furnace
Laboratory
Metal
Ceramic
Dental
Chemical
Glass
