Products Description

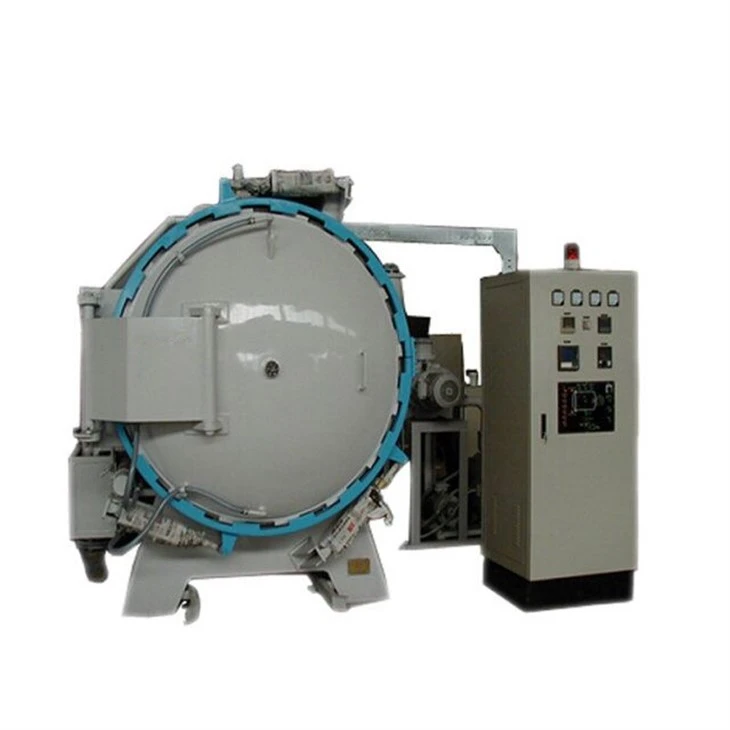

Heat Treatment Vacuum Quenching Brazing Furnace for Titanium Alloy Steel Stainless Die Steel Magnetic Materials.
Vacuum quenching furnace used in materials science, metal (nickel Titanium alloy, stainless steel, Carbon steel, tools steel, High speed steel, high alloy steel, Soft magnetic material) materials' sintering, quenching, annealing and tempering.
Mainly vacuum heat treatment process
Vacuum Sintering
Vacuum hardening/Quenching
Vacuum annealing
Vacuum Tempering
Vacuum solution heat treatment
High temperature brazing ......
Standard Features
1. The furnace is horizontal, single chamber, double layers' furnace shell with water cooling channel structure. Furnace door open type can be customized design.
2. Excellent temperature uniformity.
3. For different cooling speed requirements, it can use single heat exchanger furnace hearth cooling or dual and multi-stage heat exchanger furnace hearth cooling.
4. For different components, horizontal single chamber gas quenching furnace is optional to use backside gas inlet quenching circulation system or front side gas inlet quenching circulation system.
|
Model |
SV2Q-13TP |
SV2Q-16TP |
||
|
Chamber size: D x W x H (mm) |
300*200*200; 400*300*300; 600*400*400; 700*500*500; 900*600*600 or bigger; |
|||
|
Max. temperature(.C) |
1300 |
1600 |
||
|
Working temp.(.C) |
1200 |
1500 |
||
|
Volume (liters) |
12 / 36 / 96 / 175 / 324 or bigger |
|||
|
Temperature uniformity (°C) |
±5.C |
|||
|
Power(KW) |
Depend on chamber size; |
|||
|
Voltage(V) |
AC 380V / 415V /440V /480V |
|||
|
Thermocouple type |
S (0-1300.C) / B (0-1700.C) |
|||
|
Heating element |
Graphite / molybdenum |
|||
|
Temp. Precision |
±1.C |
|||
|
Heating rate |
0-30℃/min adjustable; Suggest to use 10-15.C/min; |
|||
|
Heating Chamber material |
Graphite soft and hard felt / molybdenum+ stainless steel |
|||
|
Furnace body structure |
Double horizontal furnace shell with water cooling channels, outer shell Carbon steel and inner shell stainless steel; |
|||
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SCR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|||
|
Vacuum level (Cold state) |
6.65x10^-1 ~ 6.65x10^-3Pa, 6.65x10^-4Pa |
|||
|
Pressure rise rate: (Pa/h) |
≤0.65 |
|||
|
Maximum air cooling pressure (Bar) |
6/10/15/20/40/60 |
|||
|
Cooling gas (99.995%) |
N2/Ar/He |
|||
Standard Accessories
Thermal gloves | Crucible Tongs | User Manual |Tools kits
Optional parts
Water chiller, extra heating elements, extra thermocouple
PLC touch screen controller, paperless recorder, Remote communication control system, 2-3 gas channels mixing system desktop.

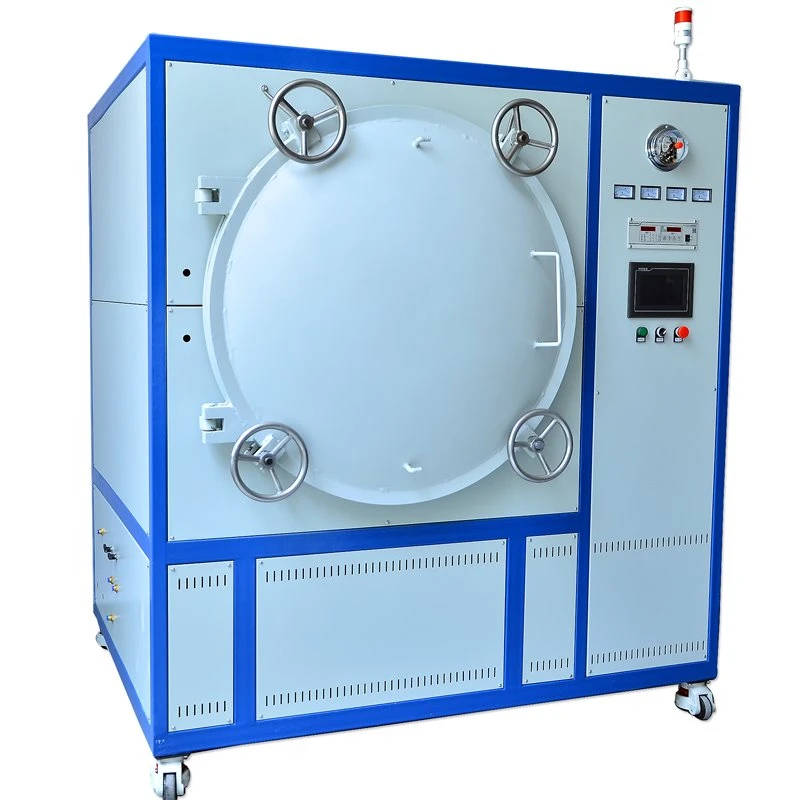

Detail picture
Application
Vacuum quenching furnaces are widely used in scientific research and small batch production in industrial and mining enterprises, mainly used for Suitable for quenching high-speed steel, tooling steel, and stainless steel; Solid solution treatment of stainless steel and titanium alloy; Vacuum Heat Treatment of Magnetic Materials.
