Products Description of 1350C lab Vacuum Furnace
The 1350C lab Vacuum Furnace a double horizontal water-cooled channel furnace shell, with a carbon steel outer shell and a stainless steel inner shell; The controller adopts touch screen PLC control. The equipment consists of high-purity stainless steel, carbon steel, vacuum unit, chiller, gas control, and temperature control. The furnace material is composed of high-purity molybdenum and 310S stainless steel.
The 1350C lab Vacuum Furnace is specially used for bright annealing of tool steel, die steel, high-speed steel, ultra-high strength steel, magnetic materials, stainless steel, non-ferrous metals and other materials.
1350C lab Vacuum Furnace Standard Features
● Volume 12L of this furnace, support customized size.
● Good vacuum sealing to make sure no leakage.
● The furnace chamber is clean working environment;
● The temperature is controlled by precision SCR with accuracy +/-1 C and PLC control;
|
Model |
SV2A-15TP |
SV2A-12TP |
||
|
Chamber size: D x W x H (mm) |
300*200*200mm |
|||
|
Max. temperature(.C) |
1500 |
1200 |
||
|
Working temp.(.C) |
1350 |
1100 |
||
|
Volume (liters) |
12 / 36 / 96 / 175 / 324 or customized bigger size |
|||
|
Power(KW) |
Depend on chamber size; |
|||
|
Voltage(V) |
AC 380V / 415V /440V /480V 2phase or 3 phase. |
|||
|
Thermocouple type |
S (0-1400.C) |
|||
|
Heating element |
Molybdenum strip | |||
|
Temp. Precision |
±1.C |
|||
|
Heating rate |
0-30℃/min adjustable; Suggest to use 10-15.C/min; |
|||
|
Heating Chamber material |
Using advanced high-quality Molybdenum strip and 310s stainless steel material |
|||
|
Furnace body structure |
Double horizontal furnace shell with water cooling channels, outer shell Carbon steel and inner shell stainless steel; |
|||
|
Temperature controller |
PLC temperature control instrument, 30 program segments, SCR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling. |
|||
|
Vacuum level (Cold state) |
10Pa; 6.65x10^-1 ~ 6.65x10^-3Pa, 6.65x10^-4Pa |
|||
|
Pressure rise rate: (Pa/h) |
≤0.5 |
|||
|
Maximum air cooling pressure (Bar) |
<2 |
|||
|
Standard Accessories |
High temperature gloves | Crucible Tongs | User Manual |Tools kits |
|||
|
Optional parts: |
Water chiller, extra heating elements, extra thermocouple; Paperless recorder, Remote communication control system, 2-3 gas channels(MFC) mixing system desktop. |
|||
|
Support OEM/ODM |
||||

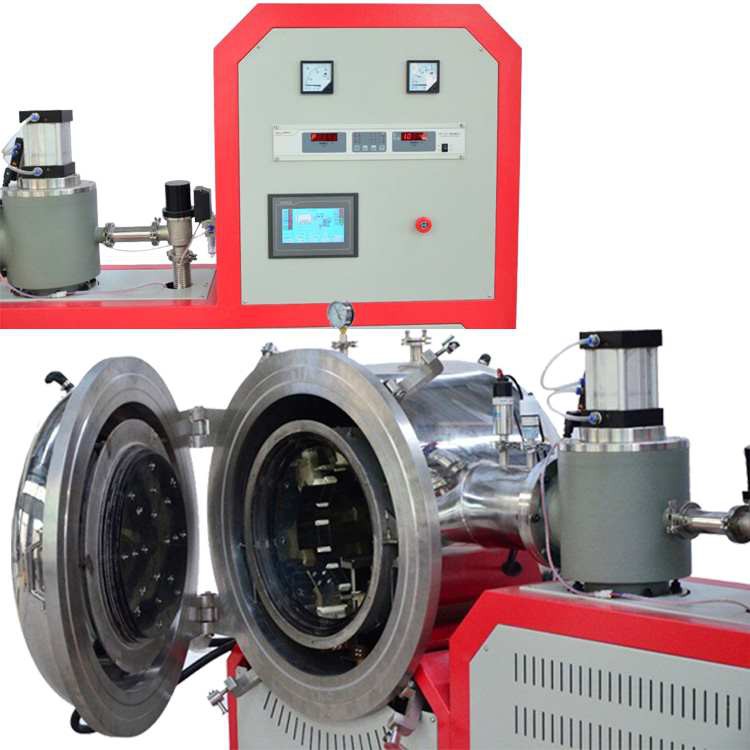

Detail picture
