Product Description of Vertical bottom lifting tube furnace
Vertical bottom lifting tube furnace is heated by resistance wire and can operate at temperatures up to 1100 degrees Celsius. It uses a quartz tube as the reactor, ensuring high-temperature durability. The double-layer furnace shell and insulation materials provide excellent heat retention. It employs a 30-segment intelligent temperature controller with one-button heating and cooling. Sample processing utilizes a bottom-loading lifting platform for easy operation and rapid annealing. It is suitable for handling returned ceramics, semiconductor wafers, etc.
more models view of Vertical bottom lifting tube furnace
| temperature | Max temperature 1200℃,suggested continious using≤1100℃ | |||
| Tube diameter | 150mm,other size can be optional | |||
| Heating zone length | 150mm | |||
| Max vacuum | 10Pa(positive pressure≤0.02Mpa safety in need | |||
| Gas in support | Inert gas such as N2,Ar,He.etc or O2,H2,Mix gas etc support | |||
| Heating element | HRE resistance Wire | |||
| Heating rate | ≤20C/minute(programmable) | |||
| Refractory chamber | 1430C type Al2O3 ceramic Fiber board | |||
| Sealing way | SS304 cooling sealing flanges (based on application) | |||
| Tube material | Quartz tube | |||
| Lifiting system | Bottom platform lifting, electric button lifting | |||
| Vacuum pump | Included | |||
| Other's | Customized support for any size & voltage,phase(100V~440V) | |||
| Optional | 1.Touch Screen temperature controller 2.RS485 3.High Vacuum such as -1Pa or -3Pa if in need can be provided | |||

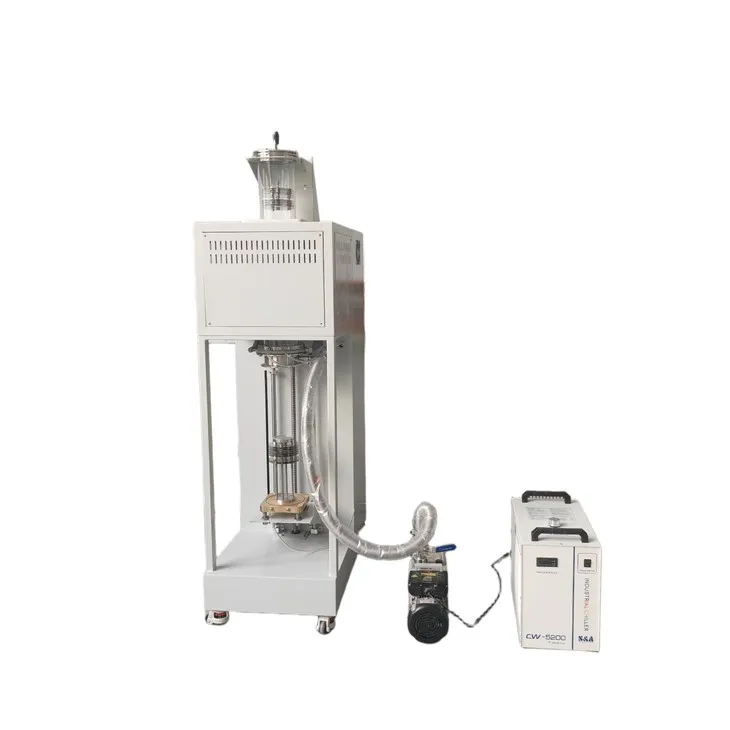

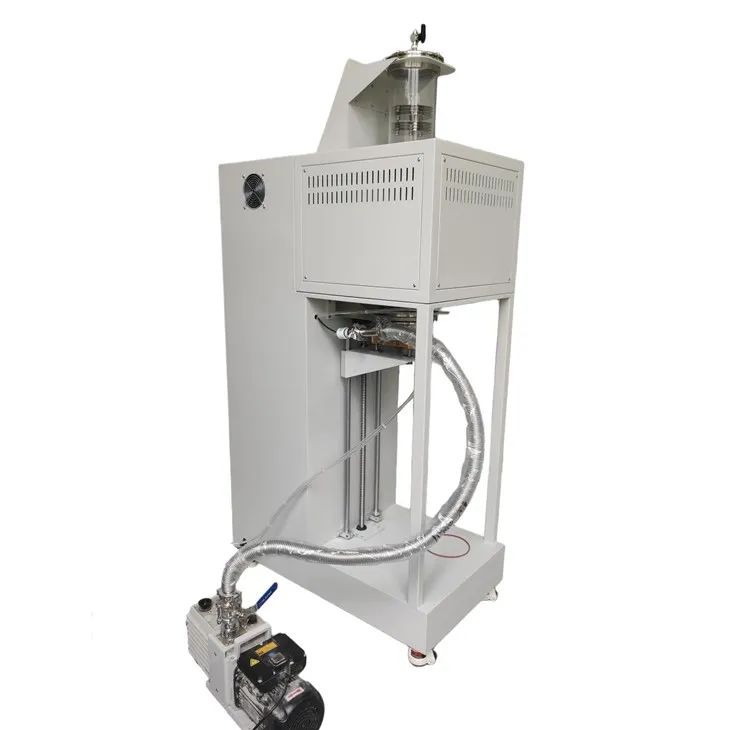

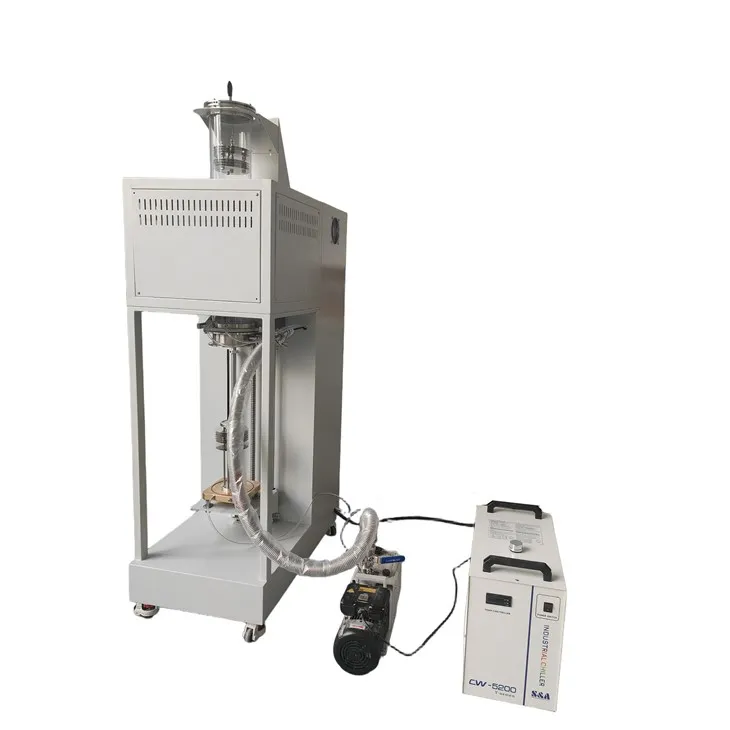

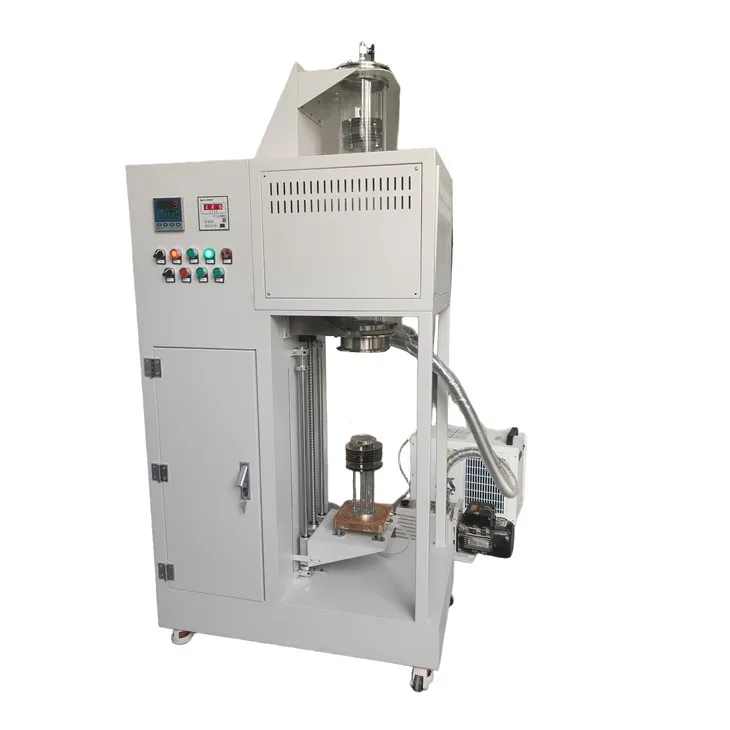

Picture details of Vertical bottom lifting tube furnace
