Products Description of CVD mini tube furnace
This device is used in the laboratory for research on heat treatment of minerals, biomass, waste, and other materials; Vacuum degree of -0.1MPa effectively reduces material oxidation; The 3-channel float flow system can achieve gas flow control; Can pass any inert gas and protect the gas.
Products Features of CVD mini tube furnace
1. Single and small temperature zones, easy control and move it.
2. 1200℃ maximum, 1100℃ continuous and stable use
3. 30 sections of temperature-time programmable, PID, accuracy ±1℃
4. Split open type of the furnace.
5. CVD system
6. Universal wheel design, easy to move.
small rotary furnace overlook
Sealing flange
Three gas channle flowmeter
Split door with easy tube loading
Vacuum pump -0.1Mpa

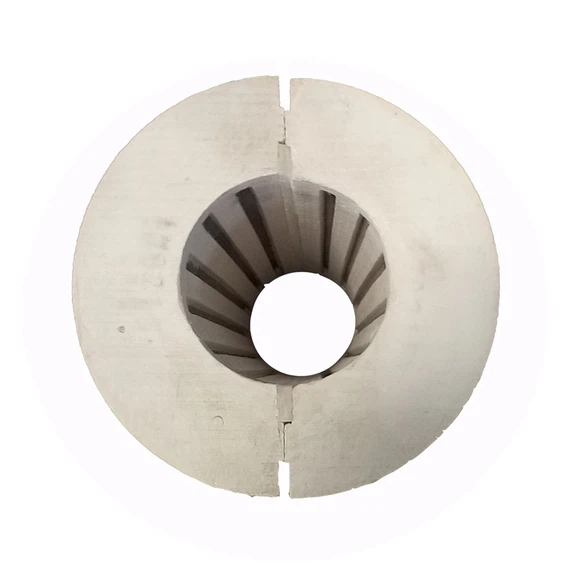

Furnace heating zone chamber
insert port
Products Specifications of small Rotary furnace
| Temperature | Max 1200℃,continious working 1100℃ |
| Heating zone | OD40/60/80/100/120/150/180/200/250/300mm,length 205/350/440mm or customized available |
| Heating rate | ≤30℃/minute |
| Heating element | HRE resistance wire |
| Chamber | 1430℃ grade Alumina ceramic firber refractory chamber |
| Temperature controller | Yudian temperature controller,PID control,30segments temperature-time programs;±1℃ accuracy;over heating protection,broken thermocouple alarm(touch screen version optional) |
| Vacuum | -0.1Mpa |
| Atmosphere filled in | Support(Inert gas such as Nitrogen,Argon,He.,or reducing environment H2.,etc) |
| Flowmeter system | Support |
| Split open function | Support |
| PID function | Support |
| 30segments | Support |
| LED | Adjustable |
| Tube material | Quartz(metal or corundum tube optional) |
| Power | Based on heating zone selection+temperature,voltage/phase can be totally as per client's local facility environment |
| Wheels | Included |
| Atmosphere filled in | Support |
| Vacuum pump | Included |
| Max vacuum | -0.1Mpa rough vacuum or Pirani gauge 10Pa |
| Warranty | 1years warranty with lifetime support(excluding consumable accessories) |
| Certification | CE,ISO9001:2016,SGS |
