Products Description

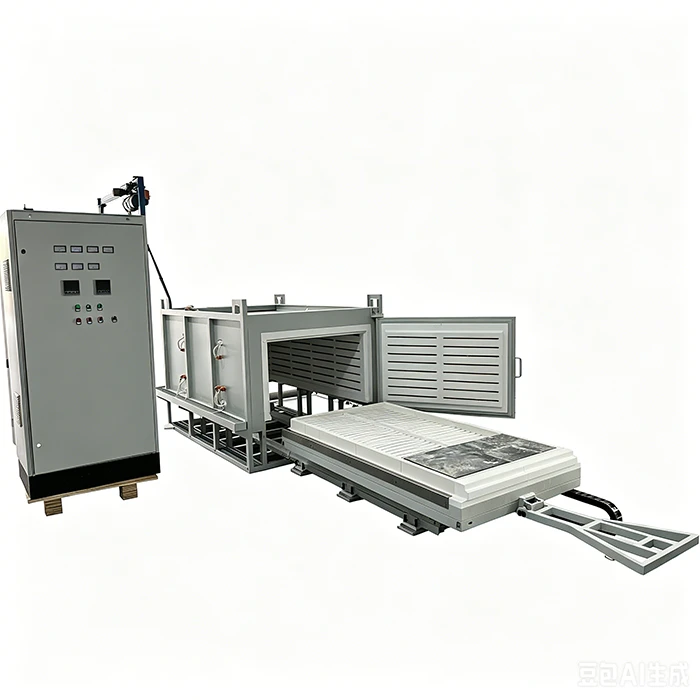

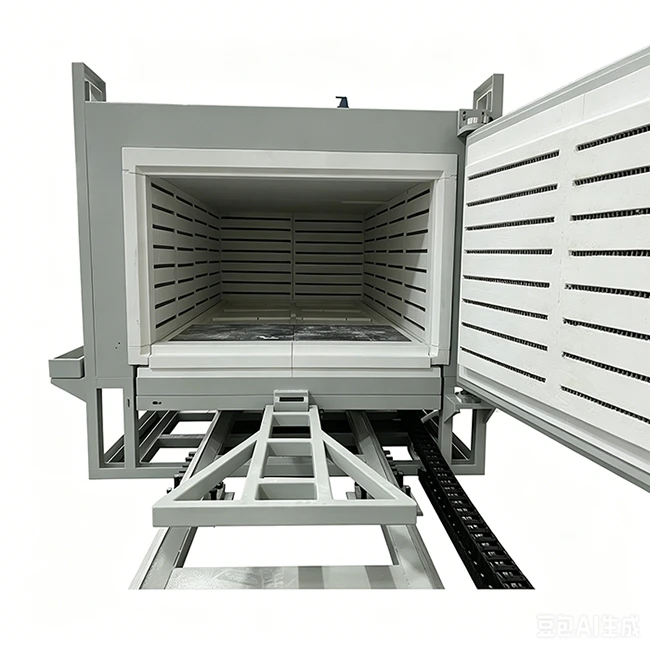

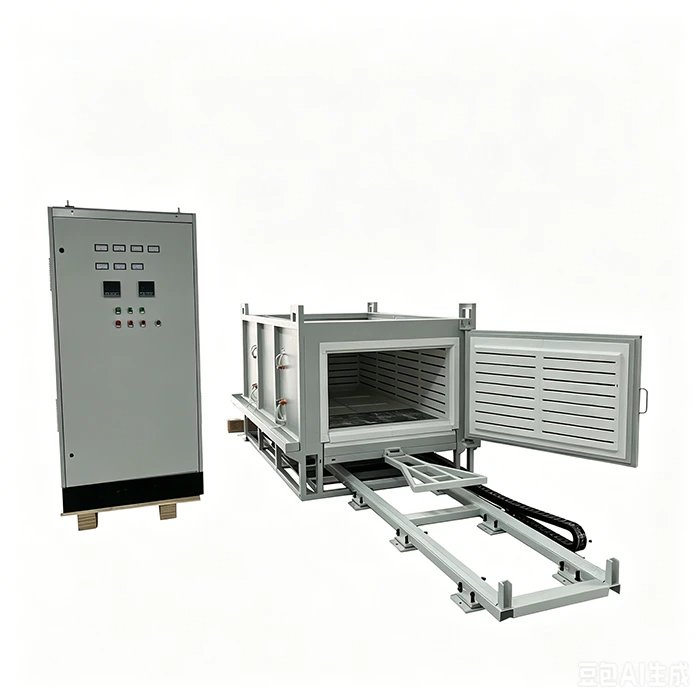

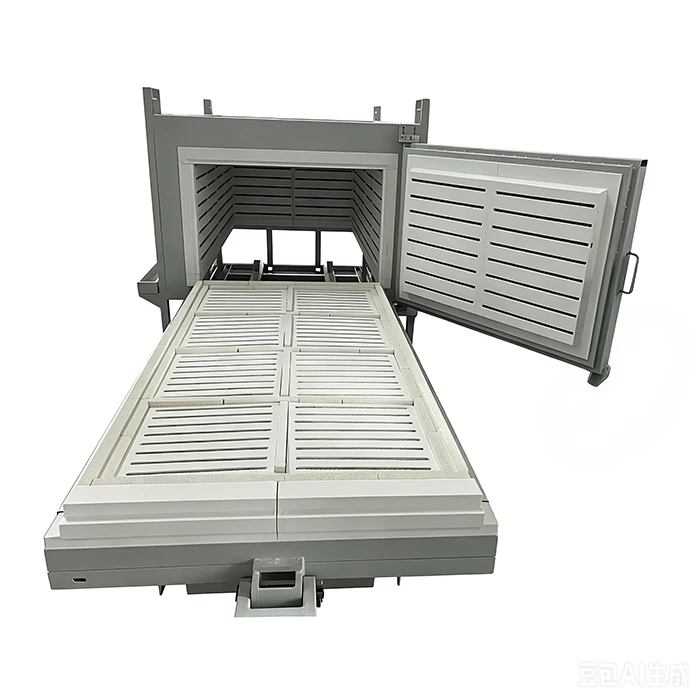

This hand push bogie furnace adopts electric resistance heating design, featuring large inner volume, easy manual trolley feeding, widely used for annealing, normalizing, tempering and other heat treatment of various metal workpieces. Stable temperature control, energy-saving, simple operation, ideal for batch metal thermal processing.

Technical parameters

Large Volume Hand Push Resistance Trolley Furnace for Metal Workpiece Heating

Model	SX2-XY-12TPC
Max.design(℃)	1200
Working temperature(℃)	0-1100
Chamber size(mm)	D1800W950H550mm
Voltage(V)	380V 3phase
Thermocouple type	K
Heating rate	0-20C/min
Temp.Precision	±1℃
Furnace chamber material	1430℃ grade Alumina ceramic firber refractory chamber
Temperature control security	Adopt international advanced Yudian temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.
Temperature controller	Touch screen model. Adopting advanced temperature instruments, 50 segment programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling

Standard Accessories

Certification: CE, ISO, SGS ect, more than 30 patent certifications

Warranty: One-year warranty (excluding wearing parts) and long-term technical support

Product details
