Products Description

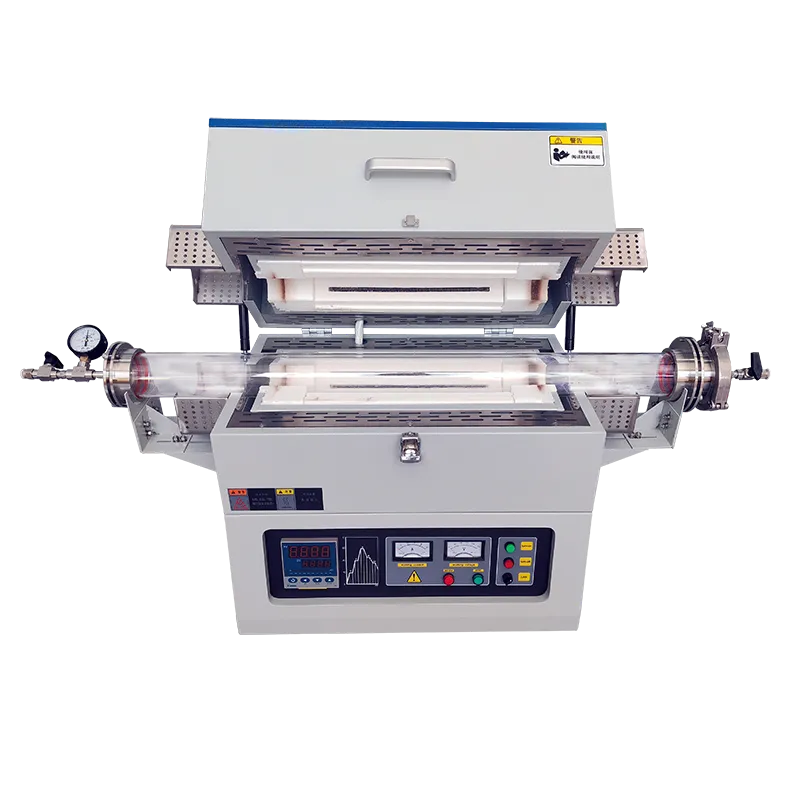

The 70mm tube furnace is a split tube furnace, using a 70mm diameter quartz tube. The heating zone can be selected in 205/350/440mm lengths, which can also be customized. It has a compact structure, a double-layer air-cooled carbon steel structure, and a beautiful appearance. The 70mm tube furnace uses an intelligent programmable temperature control instrument, which can set heating and cooling programs to achieve multi-stage processes. It is specially used for laboratories in universities, scientific research institutions, etc. to perform sintering annealing and other heat treatments.
Technical parameters
70mm tube furnace
| Model | SK2-12TPC |
| Max.design(℃) | 1200 |
| Working temperature(℃) | 0-1100 |
|
Tube diameter(mm) D x W x H (mm) |
70mm |
| Heating zone length(mm) | 205/350/440mm |
| Voltage(V) | 220V 1phase |
| Thermocouple type | K |
| Max.vacuum | -0.1MPa |
| Heating rate | 0-20C/min |
| Temp.Precision | ±1℃ |
| Furnace chamber material | 1430℃ grade Alumina ceramic firber refractory chamber |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc,The maximum positive pressure does not exceed 0.02Mpa |
| Gas control | It has an air inlet and an air extraction hole with a ball valve, which can be connected to a vacuum pump and a flow meter can be added. |
| Sealing way | Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Temperature controller | Adopting advanced temperature instruments, 30 segment programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Standard Accessories Quartz tube|SS flange|vacuum pump|Thermal gloves | Crucible Tongs | Thermocouple | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support |

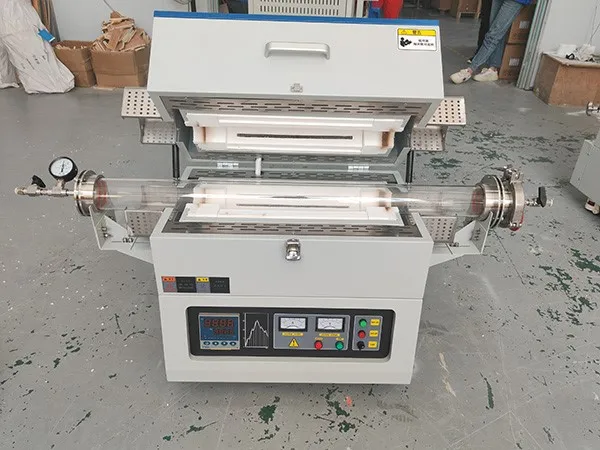

Product details
Company introduction
We are High temperature furnace experts
The company is recognized as a world leader in lab high temperature electric furnace design and offers products and services of exceptional quality.
-
1K +Completed Projects1k complete work
-
30 +Our ExpertExpert high temperature furnace
Certification
Honor and qualification
Official certification, professional after sales service.
CE
CE
CE
ISO9001
SGS
Precautions for use:
The gas pressure in the furnace tube cannot be higher than 0.02MPa
·Due to the high gas pressure inside the gas cylinder, a pressure reducing valve must be installed on the gas cylinder when the gas is introduced into the furnace tube. To ensure safety, it is recommended to use a pressure lower than 0.02MPa. It is recommended to purchase a pressure reducing valve from our company. The range of our company's pressure reducing valve is 0.01MPa-0.1MPa, which will be more accurate and safe when used. When the furnace body temperature is higher than 1000℃, the furnace tube cannot be in a vacuum state, and the gas pressure in the furnace tube must be equivalent to atmospheric pressure.
·The gas flow rate entering the furnace tube must be less than 200SCCM to avoid the impact of cold air flow on the heated quartz tube.
·The long-term use temperature of the quartz tube is <1100℃.
·For the experiment of sample heating, it is not recommended to close the exhaust valve and the air inlet valve at the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you need to pay attention to the pressure gauge at all times. If the pressure reading is greater than 0.02MPa, you must immediately open the air relief valve to prevent accidents (such as furnace tube rupture, flange flying out, etc.)
