Product Description of Vacuum Tublar Furnace
The tublar furnace can achieve high temperature and various gases entering as protective atmosphere and gases required for reaction with heat-treated materials. The temperature can be precisely controlled within ±1°C and 30 segments of program can be achieved. The quartz tube has the characteristics of high corrosion resistance, and the sealing flange adopts O-ring sealing, which can achieve a maximum vacuum degree of -0.1Mpa and an internal space pressure of 0.02Mpa. It is an essential scientific research equipment for small batch materials in the laboratory.
more models view of vacuum Tublar furnace
| Model |
SK2-8-12TPF4
|
SK2-4-12TPD4
|
SK2-4-12TPC4
|
SK2-4-12TPB4
|
| temperature | Max temperature 1200℃,suggested continious using≤1100℃ | |||
| Heating zone | OD150*L440mm | OD100*L440mm | OD80*L440mm | oD60*L440mm |
| Max vacuum | -0.1Mpa(positive pressure≤0.02Mpa safety in need | |||
| Gas in support | Inert gas such as N2,Ar,He.etc or O2,H2,Mix gas etc support | |||
| Heating element | HRE resistance Wire | |||
| Heating rate | ≤30C/minute(programmable) | |||
| Refractory chamber | 1430C type Al2O3 ceramic Fiber board | |||
| Sealing way | SUS304 sealing flanges or 316L sealing flanges(based on application) | |||
| Door open way | Split type | |||
| Wheels | Support | |||
| Vacuum pump | Included | |||
| Other's | Customized support for any size & voltage,phase(100V~440V) | |||
| Optional | 1.Touch Screen temperature controller 2.RS485 3.High Vacuum such as 10Pa or -1Pa or -3Pa if in need can be provided | |||

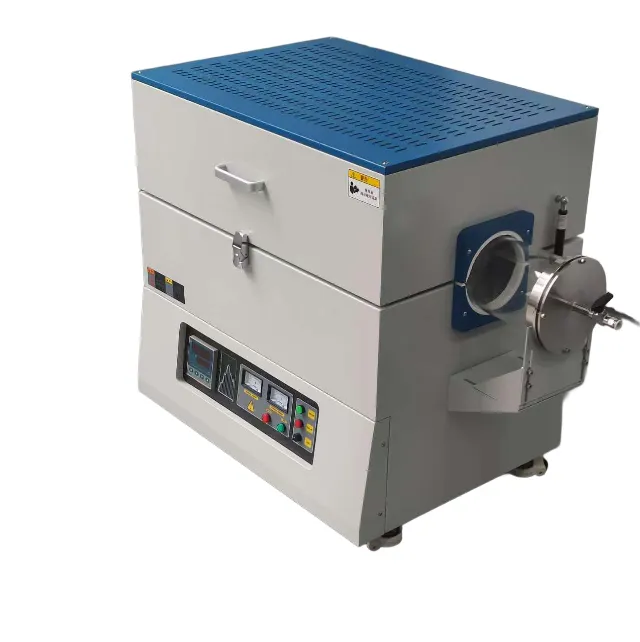

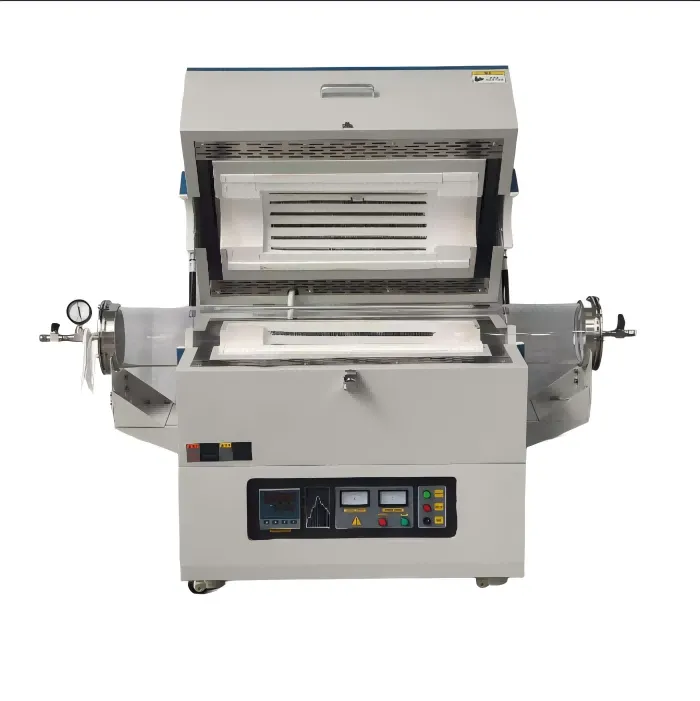

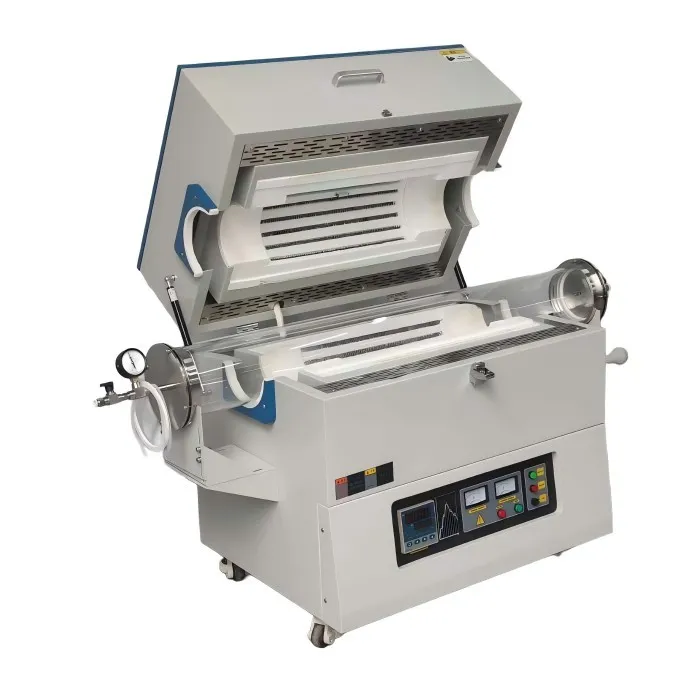

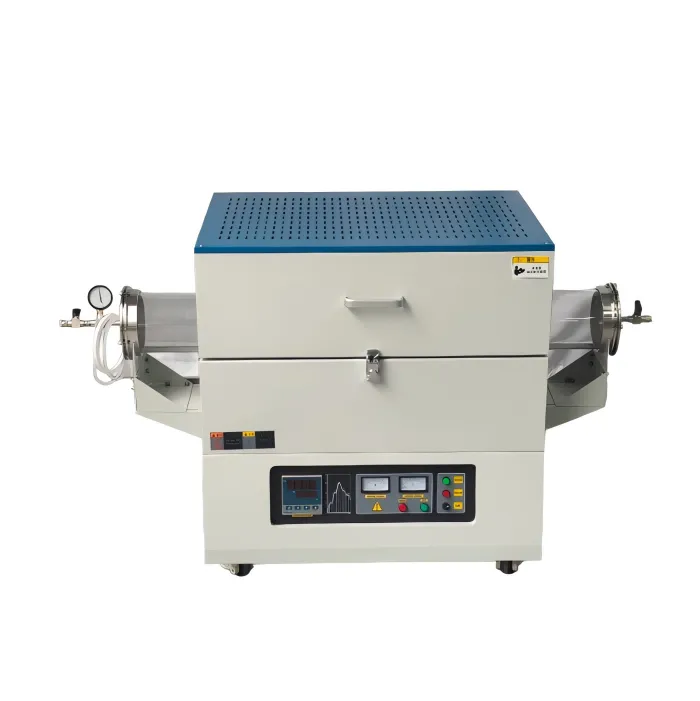

Picture details of Vacuum tublar furnace

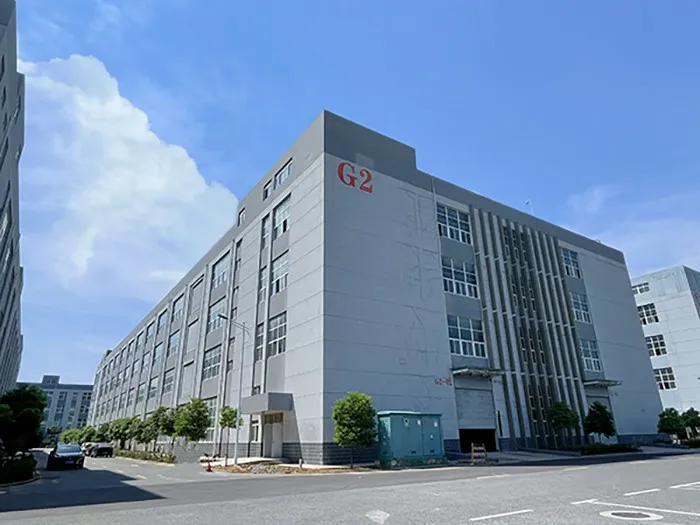

company introduction of Xinkyo Heat Treatment equipment
Established in 2010,we're dedicated in producting,design,selling and R&D of high temperature heat treatment equipment,widly used in laboratory,research institution,factory,university etc.We're hornered of National High Tech Enterprise,CE,ISO9001:2015,SGS approved.Over 80countries and areas has been launched among our various furnace such as muffle furnace,tublar furnace,vacuum furnace,atmosphere furnace,crucible furnace,hot pressing furnace,sintering furnace,annealing furnace and various furnace parts.Welcome to inquiry.
Professional team
We have clear organisation structure and each team are well coordinated and organized.Issue can be timely settled if there it is.What's more,95% emplyees are experienced due to long term in present factory.
Personalized service
We not only provided regular model,but also we can provide customized service like structure,size,votalge,phase etc.,We have vast regular models for parter with a fast delivery within 3days guaranteed.
Our Certificate
ISO9001:2015
CE
CE
CE
