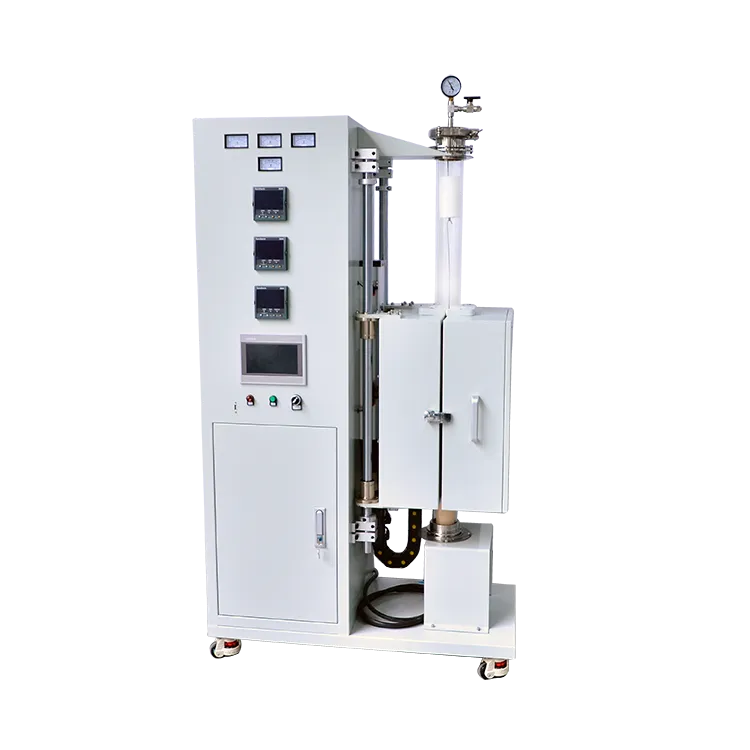

Product Description of Bridgman Crystal Growth Furnace
The Bridgman crystal growth furnace is a device used to grow high-quality single crystals and is widely used in the field of semiconductor materials, such as growing silicon, sapphire, silicon amide, silicon carbide and other materials. Its technical features include high temperature capability, high-precision temperature control, reasonable structural design, simple operation, high efficiency and energy saving. The Bridgman crystal growth furnace is mainly used to grow high-purity, high-quality and large-size single crystals, suitable for the production of semiconductor devices, lasers, optoelectronic devices, etc.
more models view of Bridgman Crystal Growth Furnace
| temperature | Max temperature 1200℃,suggested continious using≤1100℃ | |||
| Tube diameter | 80mm,other size can be optional | |||
| Heating zone length | 100+100+100mm | |||
| Max vacuum | 10Pa(positive pressure≤0.02Mpa safety in need | |||
| lifting rate | 0.1~2000μm/s (adjustable) | |||
| Lifting stroke | 0~100mm (can be customized according to requirements) | |||
| Gas in support | Inert gas such as N2,Ar,He.etc or O2,H2,Mix gas etc support | |||
| Heating element | HRE resistance Wire | |||
| Heating rate | ≤30C/minute(programmable) | |||
| Refractory chamber | 1430C type Al2O3 ceramic Fiber board | |||
| Sealing way | SUS304 sealing flanges or 316L sealing flanges(based on application) | |||
| Door open way | Split type | |||
| Wheels | Support | |||
| Vacuum pump | Included | |||
| Other's | Customized support for any size & voltage,phase(100V~440V) | |||
| Optional | 1.Touch Screen temperature controller 2.RS485 3.High Vacuum such as -1Pa or -3Pa if in need can be provided | |||
