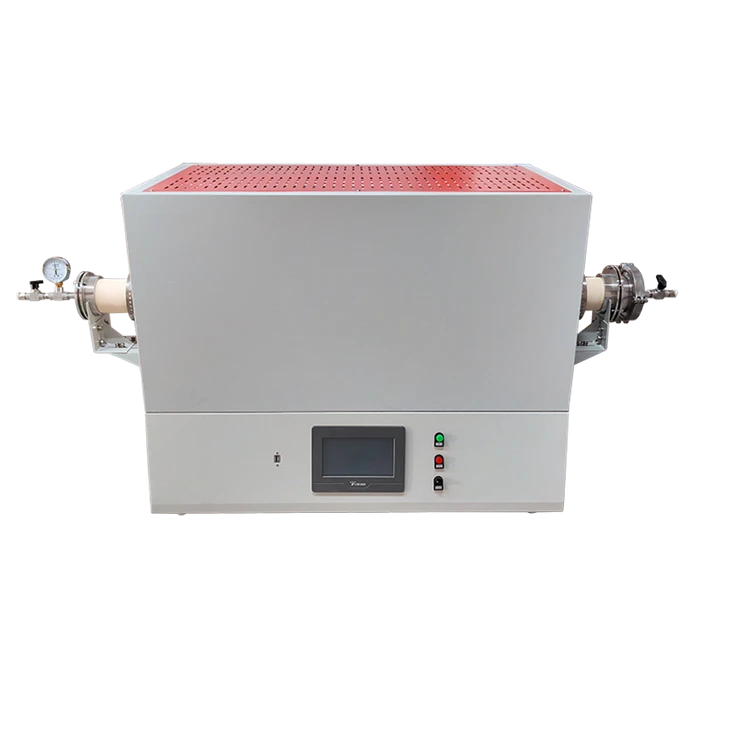

Products Description of 1400C 1700C Dual heating zone tube furnace
1400C 1700C Dual heating zone tube furnace is divided into two heating zones, which has more precise temperature control, better temperature uniformity, and can be independently controlled. The furnace chamber is made of high-quality alumina ceramic fiberboard, which has high temperature resistance and good thermal insulation effect. It adopts a double-layer air-cooling structure, which can keep the surface temperature below 60 degrees. The heating element is made of high-quality silicon molybdenum rod, which has high temperature resistance, good performance and is easy to replace. This dual-temperature zone tubular furnace is the best choice for some university laboratories and scientific research institutions to study lithium battery materials, semiconductors, photovoltaics and other industries.
Feature of 1400C 1700C Dual heating zone tube furnace
|
Model |
SK2-10-14TPC3T2 |
|
Dimensions: Standard Heating zone length (mm) |
350mm+350mm |
|
Dimensions: Standard Tube diameter (mm) |
∮80mm |
|
Max.temperature |
1400℃, Continuous working temperature 1300℃. |
|
Voltage(V) |
220 1P |
|
Thermocouple type |
S(1400℃) |
|
Heating element |
Sic heater(1400℃) |
|
Temp.Precision |
±1℃ |
|
Heating rate |
0-15℃/min free adjustment |
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ Two heating zone of the furnace, can independently control each temperature zone. |
|
Temperature controller |
Highly intelligent touch screen thermostat, can set 10 programs with 50 sections, can view historical records and curves, can export data via USB, automatically increase and decrease temperature, easy to operate, with over-temperature and broken alarm |
|
Inlet gas/Atmosphere |
It can be filled with various protective or destructive gases, Inert gases, mixed gases, nitrogen, oxygen, etc |
|
Gas control |
The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
|
Vacuum system |
-0.1Mpa Single pole rotary vane pump. Optional options include bipolar rotary vane pumps, diffusion pumps, molecular pumps, etc.
|
Optional
Different heating zone for your choose;
RS485/USB port to connect computer for choose.
High vacuum such as 10Pa,10-1Pa,10-2Pa,10-3Pa,10-4Pa.
Detail picture for 1400C 1700C Dual heating zone tube furnace
Application
Vacuum tubular furnace are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges. , such as sintering ,annealing, tempering, quenching and other processes.
Warm Tips
1. The air pressure in the furnace tube shall not be higher than 0.02MPa
2. Since the internal air pressure of the gas cylinder is high, the pressure reducing valve must be installed on the gas cylinder when the gas is fed into the furnace tube. To ensure safety, it is recommended to use a pressure lower than 0.02MPa
3. When the furnace body temperature is higher than 1000 ℃, the furnace tube shall not be in a vacuum state, and the pressure in the furnace tube shall be equivalent to the atmospheric pressure
4. The gas flow into the furnace tube shall be less than 200SCCM to avoid the impact of cold air flow on the hot furnace tube
5. For the sample heating experiment, it is not recommended to close the air extraction valve and air inlet valve at the flange end of the furnace tube. If it is necessary to close the gas valve to heat the sample, pay attention to the indication of the pressure gauge at all times. If the air pressure indication is greater than 0.02MPa, the exhaust valve must be opened immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.)
Warranty
One year warranty and lifelong technical support
Special tips:
1. Consumables such as heating element, quartz tube, sample crucible, etc. are not within the warranty period.
2. Damage caused by the use of corrosive gas and acid gas is not covered by the warranty.
