Products Description
1400℃ Rotary and tilting Tube Furnace is a high-temperature reactor with special rotating and tilting functions. The operating temperature can reach 1300℃. It adopts silicon carbon rod heating, double-layer air cooling structure, high-quality temperature-resistant alumina ceramic fiber furnace, and good furnace temperature uniformity. It is specially designed for sintering inorganic compounds (such as mineral particles and battery materials) and has better uniformity..
Technical parameters
1400℃ Rotary and tilting Tube Furnace
| Model | SK2-14TPRT |
| Max.design(℃) | 1400 |
| Working temperature(℃) | 0-1300 |
|
Tube diameter(mm) D x W x H (mm) |
40/60/80/100/120 optional or customized |
| Heating zone length(mm) | 205/350/440mm optional or customized |
| Voltage(V) | 220V 1phase |
| Thermocouple type | S |
| Max.vacuum | -0.1Mpa |
| Heating rate | 0-10C/min |
| Temp.Precision | ±1℃ |
| Rotary system |
Tube rotate speed:0-20 RPM The tube can rotate 360 degrees,electric gear drive Push button control switch |
| Tilting system |
Maximum inclination: 0-15° (adjustable) Bar-driven Push button control switch |
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ |
| Furnace chamber material | 1600℃ grade Alumina ceramic firber refractory chamber |
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc,The maximum positive pressure does not exceed 0.02Mpa |
| Gas control | It has an air inlet and an air extraction hole with a ball valve, which can be connected to a vacuum pump and a flow meter can be added. |
| Sealing way | Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Vacuum system | Single-stage rotary vane pump |
| Temperature controller | Adopting advanced temperature instruments, 30 segment programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Standard Accessories Alumina tube|SS flange|vacuum pump|Thermal gloves | Crucible Tongs | Thermocouple | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support |

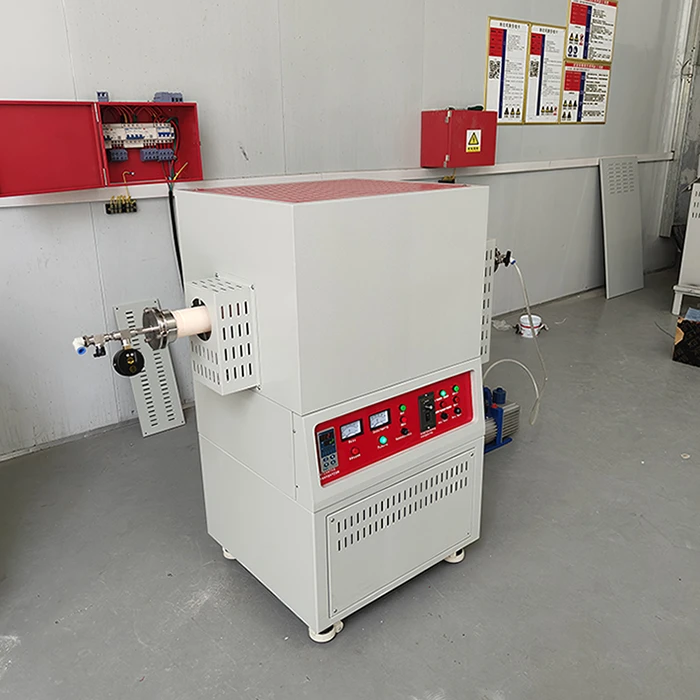

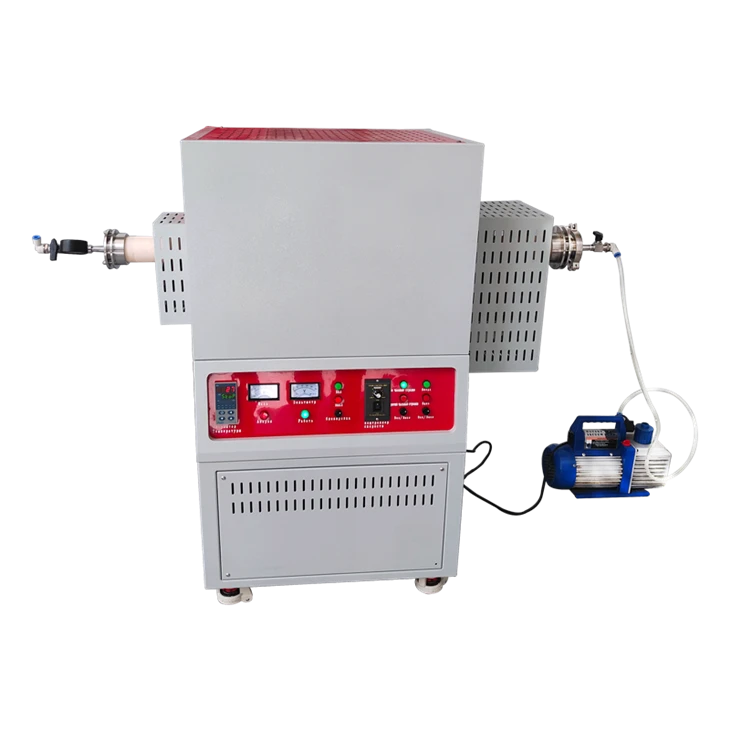

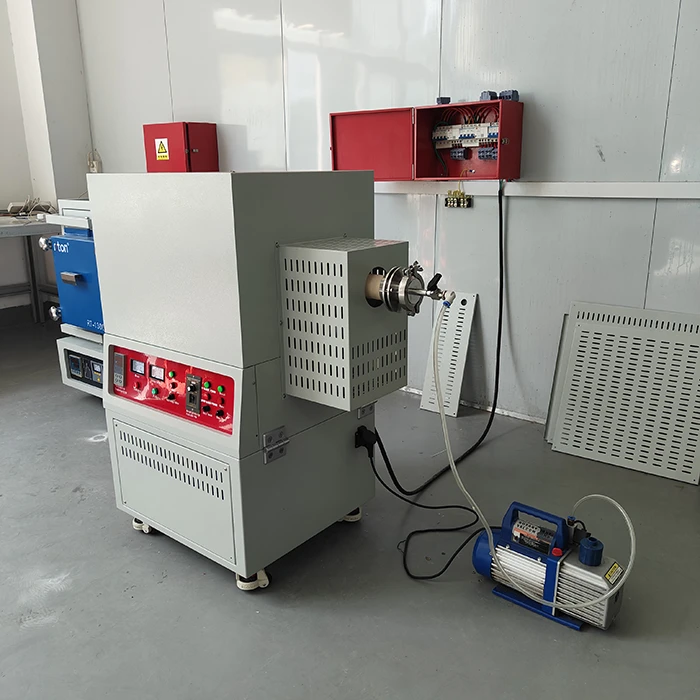

Product details
Product Application
Be used in a wide range of 1400℃ Rotary and tilting Tube Furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
