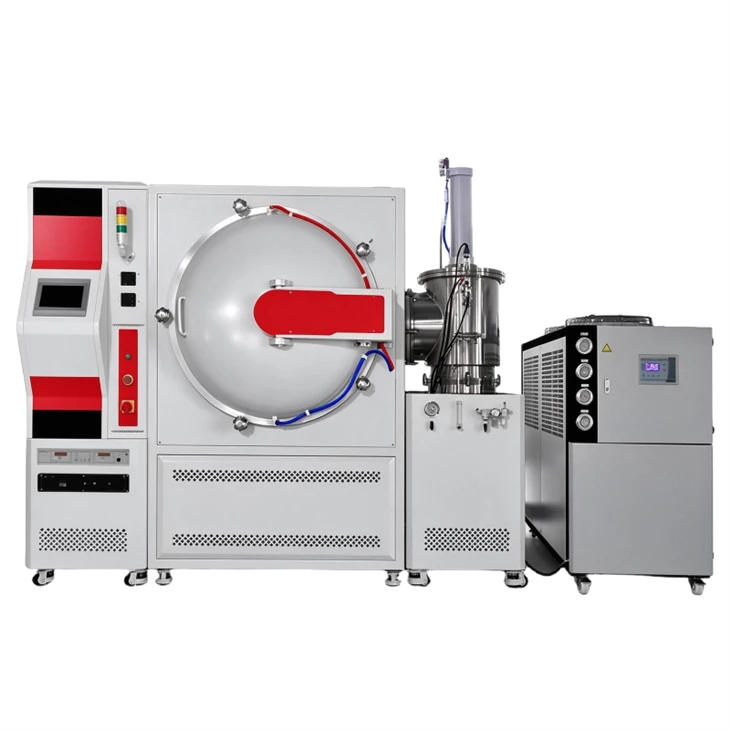

1200C High Vacuum Brazing Furnace features
- High‑vacuum system equipped with either diffusion pump or molecular pump
- Customizable internal chamber sizes available
- Clean furnace chamber, no contamination
- PLC control for high‑level automation
- Programmable operation
- Stable operation up to 1200℃
- PID & auto‑tuning supported; multiple editable time‑temperature process profiles
- Process curves & data records exportable via USB flash drive
- Chiller available as an optional accessory
- Vacuum range: 10⁻³ ~ 10⁻⁵ Pa
Products Datasheet
|
Series |
SV2 |
|||
|
Chamber size: D x W x H (mm) |
300*200*200mm,400*300*300mm,500*400*400mm,900*600*600mm or any other inner size customization support |
|||
|
Working temp.(.C) |
1200℃ |
|||
|
Voltage |
200V~600V customization support |
|||
|
Thermocouple type |
Sheathed Type‑K thermocouple |
|||
|
Heating element |
Molybdenum strip | |||
|
Temp. Precision |
±1.C |
|||
|
Heating rate |
0-30℃/min adjustable; Suggest to use 10-15.C/min; |
|||
|
Heating Chamber material |
Using advanced high-quality Molybdenum strip and 310s stainless steel material |
|||
|
Furnace body structure |
Double horizontal furnace shell with water cooling channels, outer shell Carbon steel and inner shell stainless steel; |
|||
|
Temperature controller |
PLC temperature control instrument, 30 program segments, SCR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling. |
|||
|
Vacuum level (Cold state) |
6.65x10^-3Pa~10^-5Pa optional |
|||
| Gas filled in | Optional | |||
|
Maximum air cooling pressure (Bar) |
<2(Optional based on user's processing) |
|||
| PLC control | Optional | |||
|
Standard Accessories |
High temperature gloves | Crucible Tongs | User Manual |Tools kits |
|||
|
Optional parts: |
Water chiller, extra thermocouple;Paperless recorder, PLC control |
|||
|
Support OEM/ODM |
||||

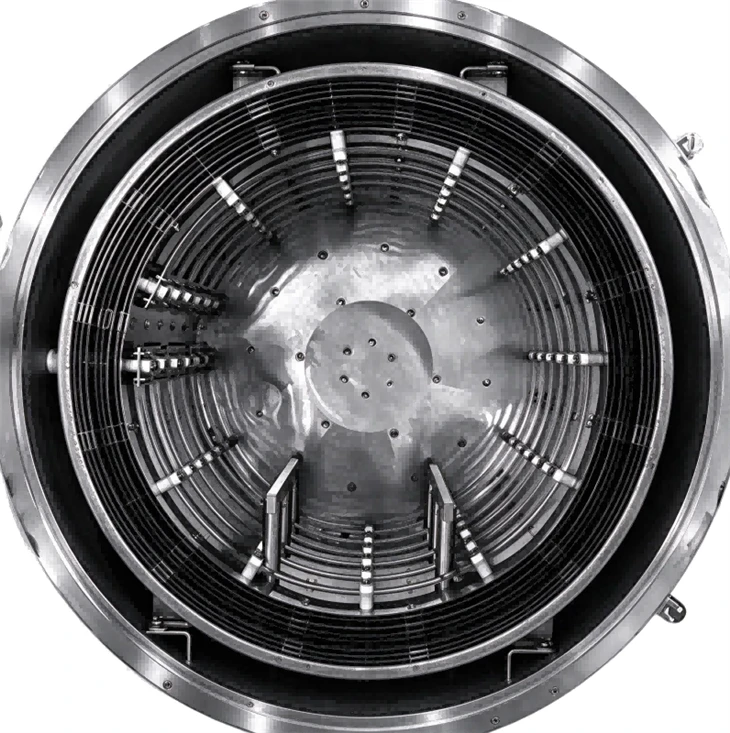

Detail picture
