Products Description OF 1200C muffle furnace

The 1200C muffle furnace is a high-temperature box furnace that uses a double-layer carbon steel shell with a temperature below 60 degrees Celsius. The electric furnace is composed of high-purity alumina polycrystalline fiber bricks and high-quality heating elements. Adopting both upward and side sliding door opening methods to meet various laboratory needs.
Specially developed equipment for sintering and melting analysis of metal, non-metal, and other composite materials in enterprises.

Furnace Feature

● Max temperature RT～1200 ;

● Different chamber size optional ;

● Easy operation and high efficiency ;

● Making it easy to take out materials ;

● Intelligently programmable controller, Set program freely;

● PID automatic control and auto-tune function;

Furnace Shell Structure:	Double-layer carbon steel plate shell, surface sprayed with heat resistant plastic powder coating to ensure that the outer surface temperature of the furnace is ≤40.C ;
Chamber Materials:	High-grade alumina fiber ceramic board and thermal insulation cotton.
Furnace door :	Side opening door ;
Max. Temperature:	1200.C	1400.C	1700.C
Continuous Working temperature:	1000.C-1100.C	1300.C	1600.C
Heating Element:	Fe-Cr-Al alloy resistance wires	SiC rod	MoSi2 rod
Thermocouple Type:	K type	S type	B type
Rated voltage & Power:	AC 380V/415V 50/60Hz; Power depend on chamber size.
Chamber size:	500x500x500mm, 600x600x600mm, 800x600x600mm, 900x600x600mm, bigger size is available.
Heating Rate:	0-30.C /min, Suggest to use 10.C/min under 1400.C,1400.C-1600.C 5.C/min,>1600.C 1-2.C/min
Temperature Precision:	±1.C ;
Temperature Controller:	Temp. Controller with 1 program storage capacity and 30 segments ramp & dwell; PID automatic control and auto-tune function. Built in protection for over-heating and broken thermocouple.
Optional parts:	Touch screen controller, paperless recorder, Remote communication control system, 2-4 gas mixing system, higher vacuum optional, Oxygen content detection,H2 safety device;
Warranty	One year limited warranty with lifetime support, excluding heating element, cooling fans, thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Accessories

Thermal gloves | Crucible Tongs | User Manual |Tools |

1200C Muffle Furnace Tips:

1. After the stove is used for the first time or not used for a long time, it should be baked at about 120°C for 1 hour and at about 300°C for 2 hours before use, so as not to cause cracking in the furnace.

2. The furnace temperature is low at first, a large amount of heat absorption is required, so the heating rate of the low temperature section should not be too fast, and the difference between the heating rates of each stage should not be too large, and the physical and chemical properties of the sintered material should be fully considered when setting the heating rate, so as to avoid the phenomenon of spraying materials and polluting the furnace.

3. The heating element of silicon-molybdenum rod should not be operated for a long time in the temperature range of 400-700°C, otherwise low-temperature oxidation will occur and the service life will be affected.

4. The furnace temperature should not exceed the rated temperature to avoid damage to the heating element and the furnace lining.

5. The cooling rate should not exceed 10°C/min, and refractory blocks must be inserted before closing the door.

6. In order not to affect the service life of the instrument, it is recommended to raise the temperature at 10°C/min

7. The furnace door can only be opened after the temperature in the furnace becomes normal temperature, the sample temperature may still be high at this time, please pay attention to wear high-temperature gloves for operation;

8. It is normal for small cracks to appear on the surface of the refractory after long-term use.

9. This chamber furnace has no vacuum sealing, and cannot be passed into flammable, explosive, toxic and corrosive gases;

Big Sintering Muffle Furnace Detail picture

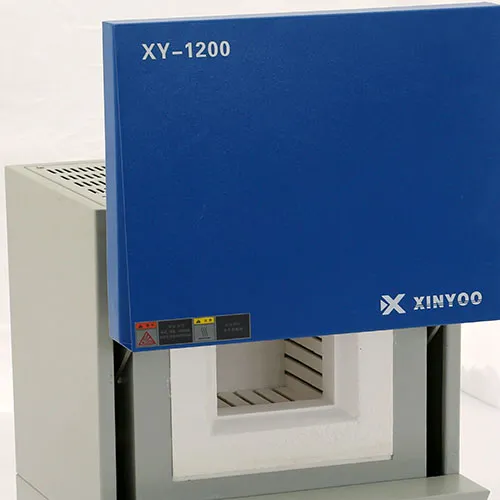

Big Sintering Muffle Furnace

High Quality Heat Resistant Fire Blocking Bricks

LCD Programmable Temp. Controller,30-Segment Program With PID Control

Upward opening method

High quality heating element with 3 sides

1200C Muffle Furnace Application

Industrial Sintering Furnace are widely used small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges, such as sintering , annealing, tempering, quenching and other processes.

Laboratory

Metal

Ceramic

Semiconductor

Chemical

Glass
