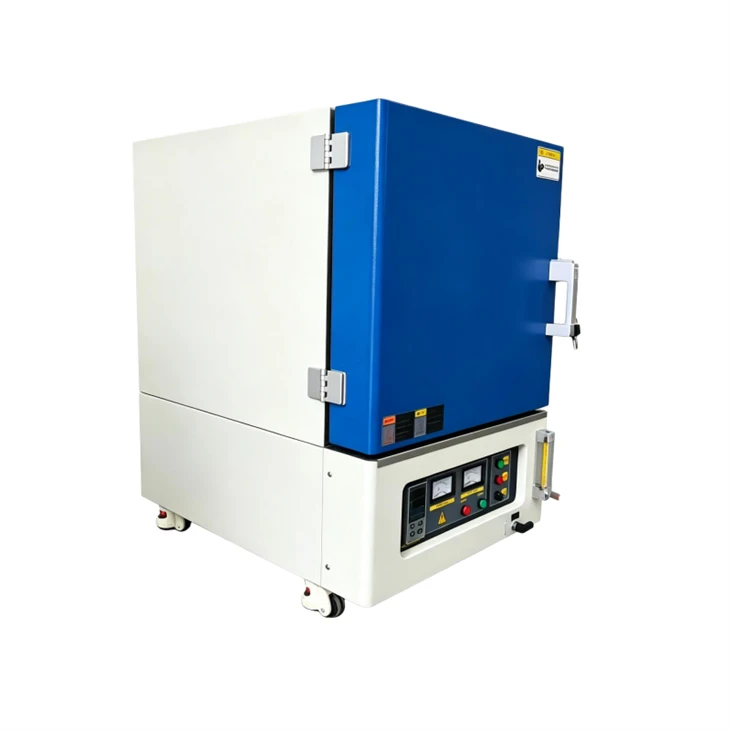

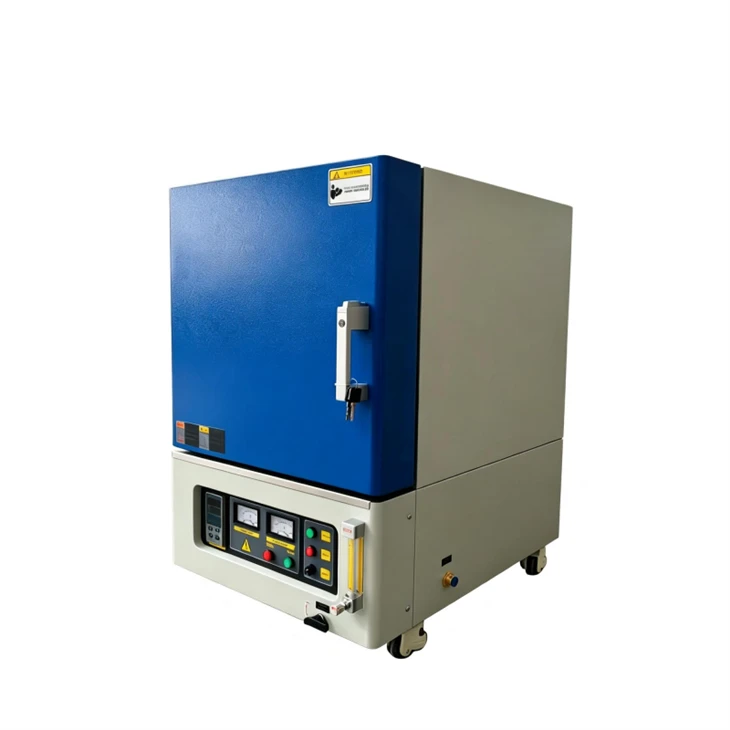

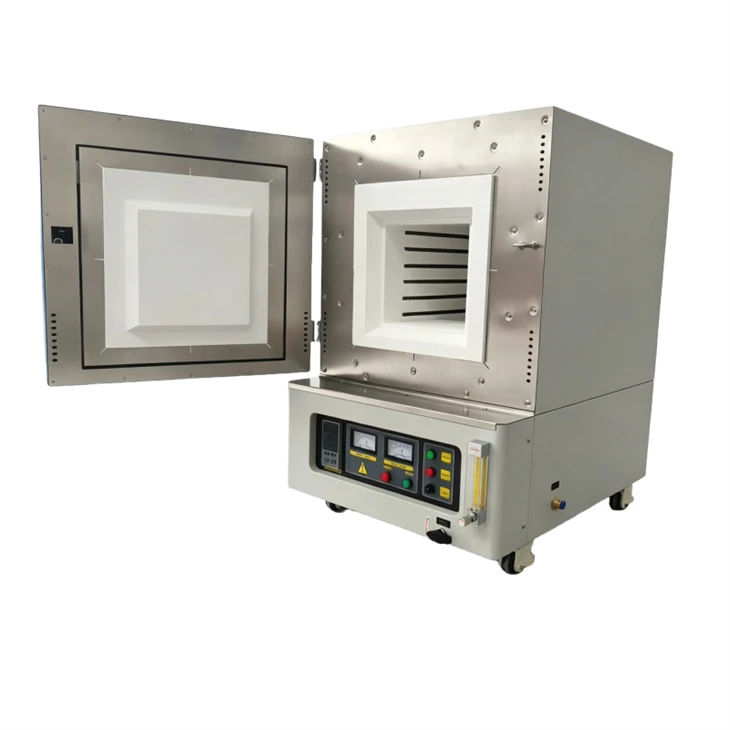

Products Description of Muffle furnace 1200C with Gas Filled in Support
Compared with conventional muffle furnaces, this model supports air and inert atmosphere, with gas flow control and gas switch. It is a cost‑effective option for carbonization or material anti‑oxidation under atmosphere protection.
Specifications
muffle furnace
| Model | SX2-12TP(Customized) |
| Max.design(℃) | 1200 |
| Working temperature(℃) | 1100 |
|
Internal dimensions: D x W x H (mm) |
300*200*200MM |
| Power(KW) | 6 |
| Voltage(V) | 220V,single phase,50/60Hz or customized |
| Volume (litres) | 12L |
| Thermocouple type | K |
| Heating rate | 0-30C/minute programmable |
| Temp.Precision | ±1℃ |
| Gas filled in | O2,N2,Ar.,etc.,filled in support |
| Gas flow control | Float flow rate adjustable |
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ |
| Furnace chamber material | 1430 Type higher furnace cleanliness than ceramic fiber materials. |
| Heating method | Three-sided heating, using high-quality SIC heaters |
| Temperature controller | Adopting advanced instruments, multiple multi-stage programs can be set, with high temperature control accuracy,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO9001:2015, SGS etc., more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support |
Product details
Product Application
Be used in a wide range of Large muffle furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
