Technical parameters

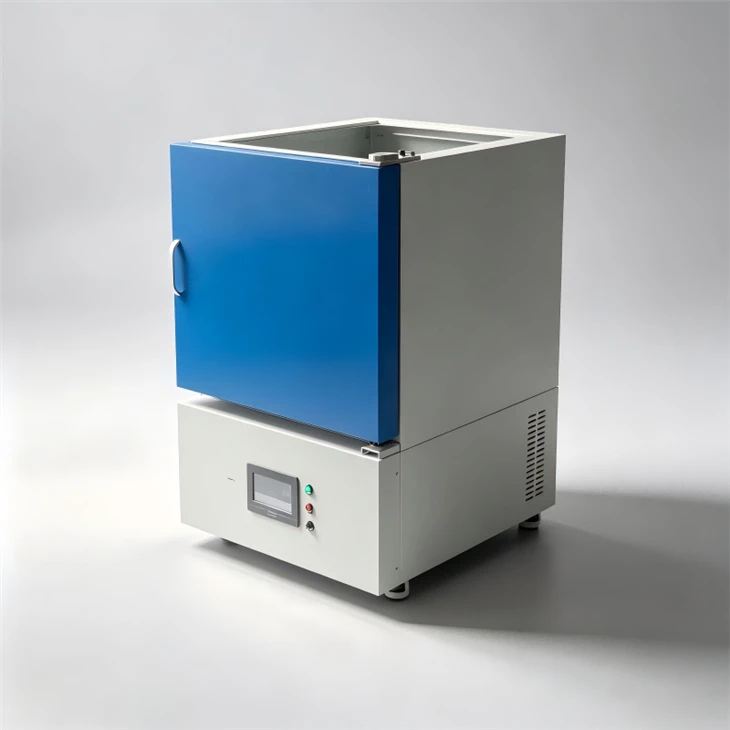

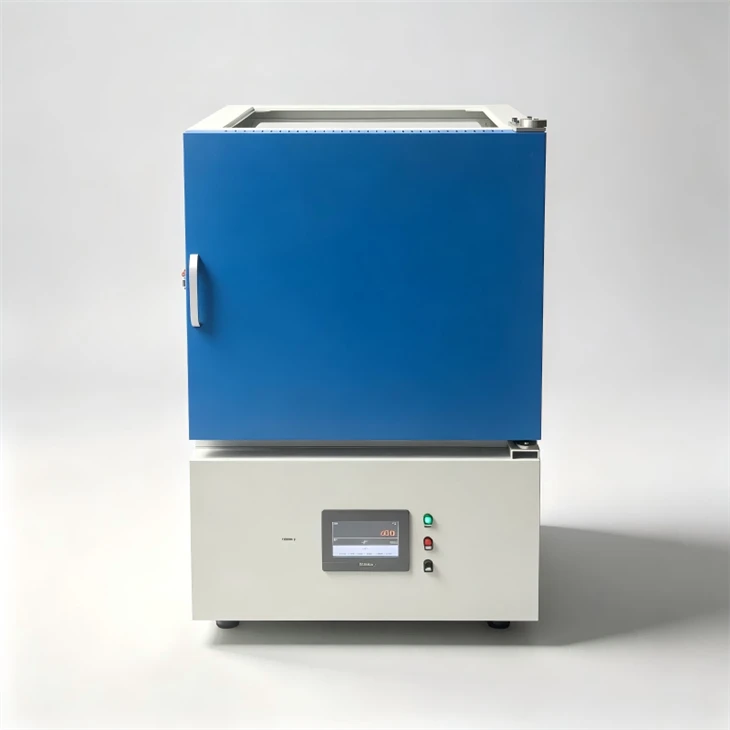

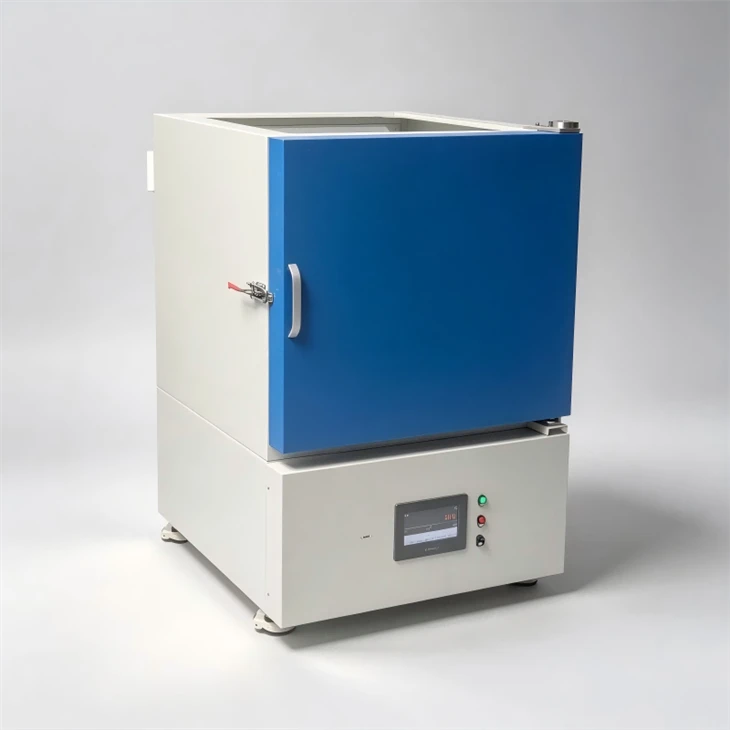

Programmable muffle furnace
| Model | SX2-XY-12TP(cutomized) | |||
|
Max.design(℃) |
1200 | |||
| Continous working(℃) | 1100 | |||
|
Internal dimensions: D x W x H (mm) |
500*500*400mm | |||
| Voltage(V) | 220~600V customized support | |||
| Volume (litres) | 100 | |||
| Thermocouple type | K | |||
| Heating rate | 0-20℃/minute programmable | |||
| Temp.Precision | ±1℃ | |||
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
| Temperature controller | Intelligent touch screen temperature controller,PID parameter self-tuning function;Supports setting of 10 groups × 50 segments of temperature-time programs (heating/holding/cooling). Equipped with upper temperature limit protection, overtemperature protection, thermocouple break alarm, visualized runtime display and parameter memory function. | |||
|
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO9001:2015, SGS ect, more than 30 patent qualified | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
| Optional:
Different chamber size for your choose; 50 segment program for choose Chimney, door opening method, air intake hole, observation window, etc. are optional. |
||||
Product details
Programmable muffle furnace
clean & energy-saving alumina ceramic fiber furnace chamber, stable structure without roof collapse
Universal wheels with height adjustment and brake function, stable, labor-saving and easy to move with high safety.
High quality heat resistant Thermal block
touch screen highly intelligent instrument,10 curves 30 segment program with PID control
Product Application
Be used in a wide range of Programmable muffle furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
