Stirring crucible Furnace Description
This stirring crucible furnace is suitable for small-batch material heat treatment, production, and R&D use in laboratories and factories. The stirring function enables uniform heating of materials, improving efficiency. With an operating temperature of 1000°C and multiple programmable temperature and time settings, it offers precise temperature control. Featuring a novel, compact, and stylish design, it is an ideal choice for researchers and production professionals.
Technical parameter of Stirring crucible furnace
| Product name | Stirring Crucible Furnace |
| Model | SG2-XY-12TP |
| Design Temperature | 1200℃ |
| Working Temperature | 1000℃ |
| Inner size | D200*H250mm |
| Power | 220V 4KW 50/60HZ( customization support) |
| Heating rate | ≤30℃/minute programmable |
| Heater | HRE resistance wire heating element |
| Refractory chamber | 1430℃ Al2O3 ceramic fiber board with coiled heater |
| Thermocouple | K type |
| Temperature controller | Eurotherm brand or Yudian brand,multiple temperature-time programmable,Runtime Visualization,PID and auto-tuning support |
| Accuracy | ±1℃ |
| Stirring function | Lifting up & down,besides stirring speed function support |
| Furnace shell | Q235 carbon steel with double layers housing,high temperature powder coated processing,aging resistance |
| Safety | Over-temperature protection,Temperature upper limit protection,Temperature deviation protection,Over-current protection,Thermocouple break alarm,Power-off memory,Emergency stop |
| Universal wheels | Support |
| Voltmeter and Ammeter | Included for easy troubleshooting |
| Fault indicator | Support |
| Warranty | 12months warranty with lifetime support |
| Certification | CE,ISO9001:2015,SGS,National High Tech Enterprise,Over 30pcs patents |

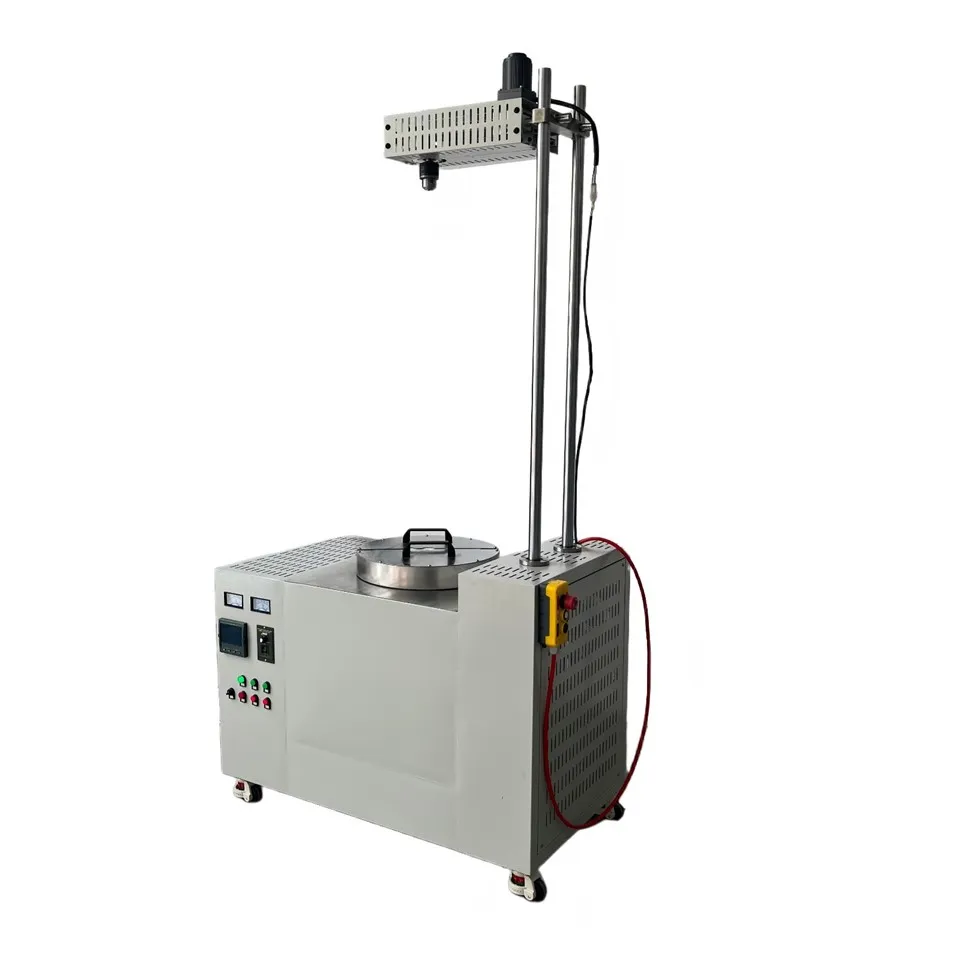

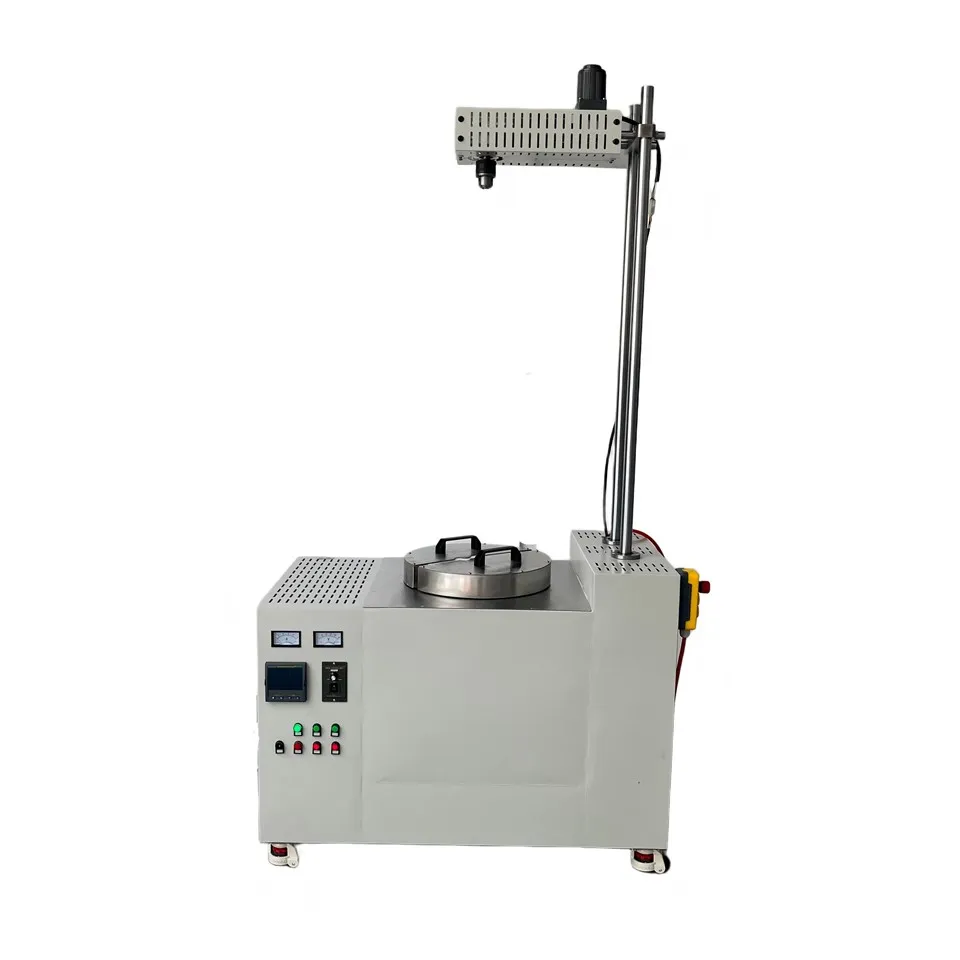

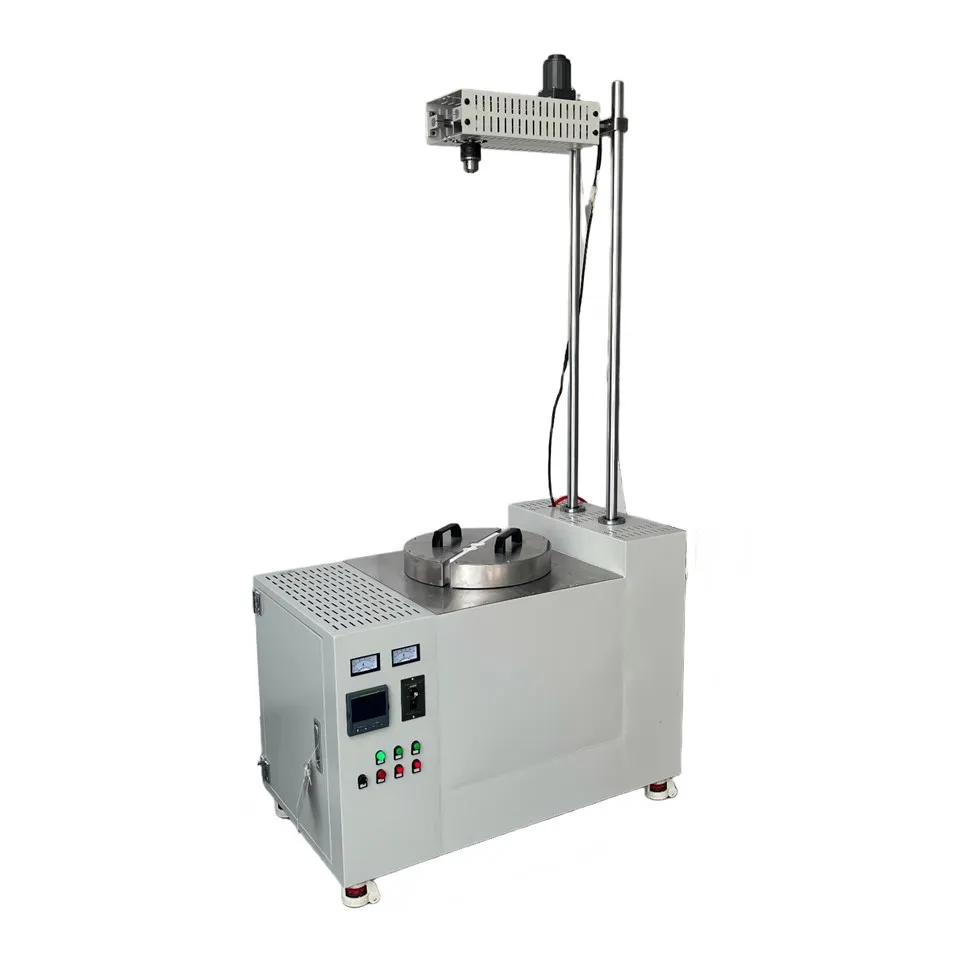

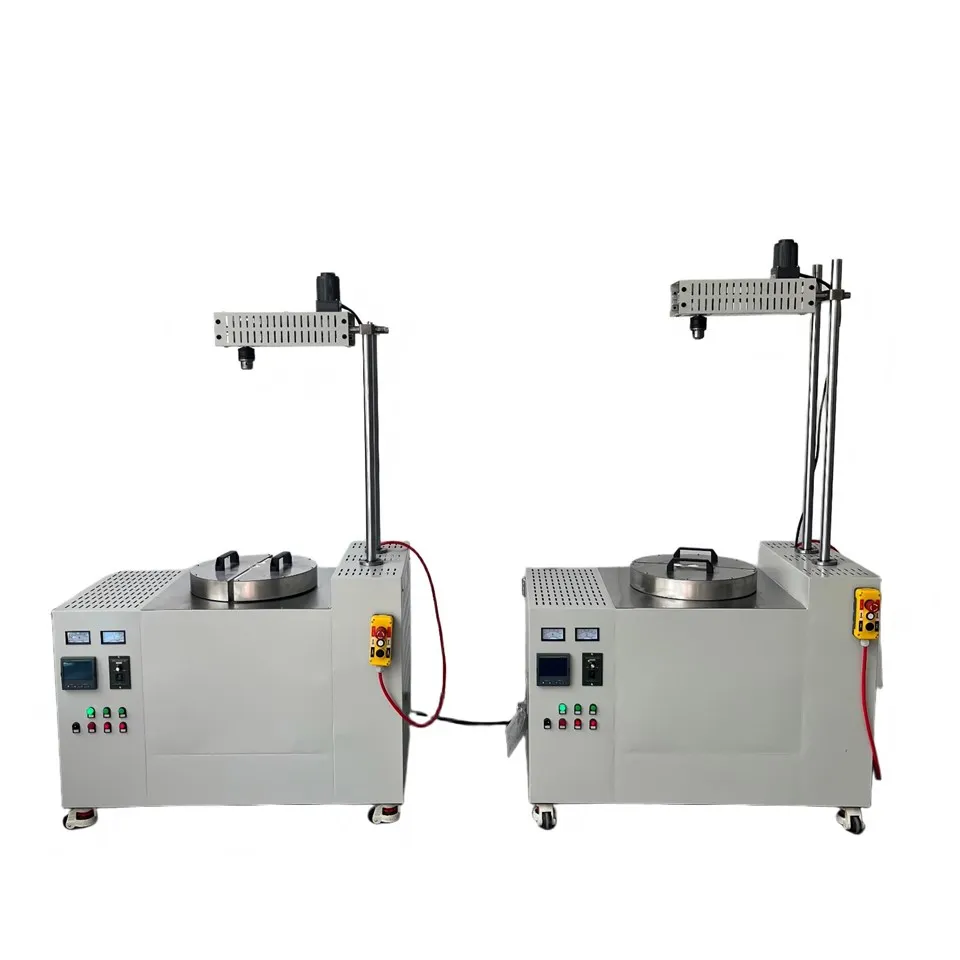

Details view of Stirring Crucible Furnace Lab Furnace Electric Furnace
 |
 |
 |
 |
