Feature
The SG2-3-12TP equipment adopts a top door opening method, which facilitates customer sampling and layout. It can use high vacuum, 10Pa (10-2Torr), heating element is resistance wire, can work continuously at 1100 degrees, can place quartz crucible inside, can also use 310S stainless steel crucible, but the temperature cannot exceed 1000 degrees, the shell temperature does not exceed 60 degrees, and the heating and cooling speed is fast. It is the most ideal product for high vacuum sintering, annealing, and quality inspection in universities, research institutes, and industrial and mining enterprises.
|
Model |
SG2-3-12TP |
|
Dimensions: Internal D x W x H (mm) |
φ200*H240mm |
|
Dimensions: External L x W x H (mm) |
570*570*850mm |
|
Max.temperature(℃) |
1200℃ |
|
Continuous working temperature |
1100℃ |
|
Voltage(V) |
110 or 220V, single phase, 3KW |
|
Thermocouple type |
K |
|
Heating element |
HRE Alloy resistance wire |
|
Temp.Precision |
±1℃ |
|
Heating rate |
0-30℃/min free adjustment |
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Vacuum |
10-2Torr Using mechanical pumps The high vacuum 10-2Pa or 10-4Pa as you need. |
|
Support OEM/ODM |
|
Standard Accessories
Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools |
Optional
Different chamber size for your choose;
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
Chimney, door opening method, observation window, etc. are optional.

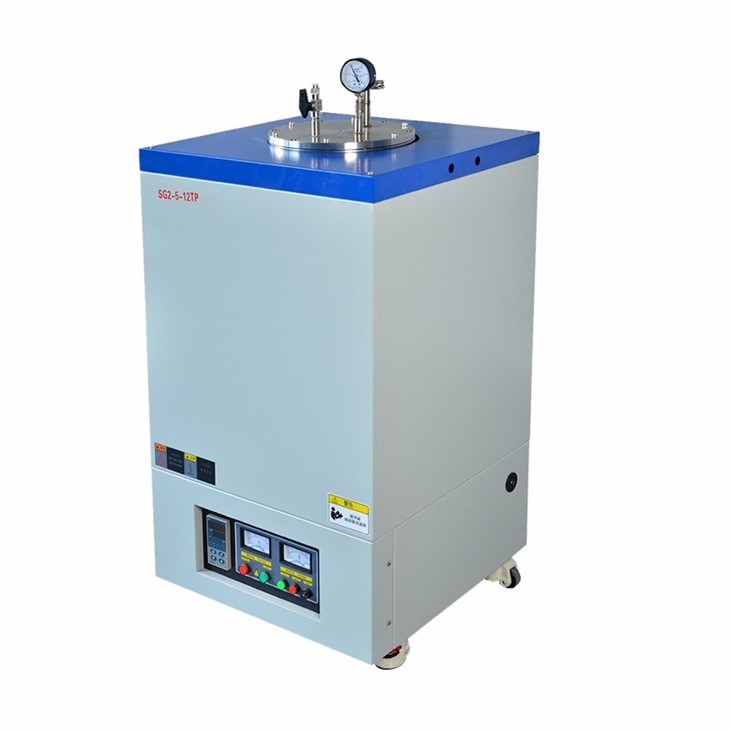

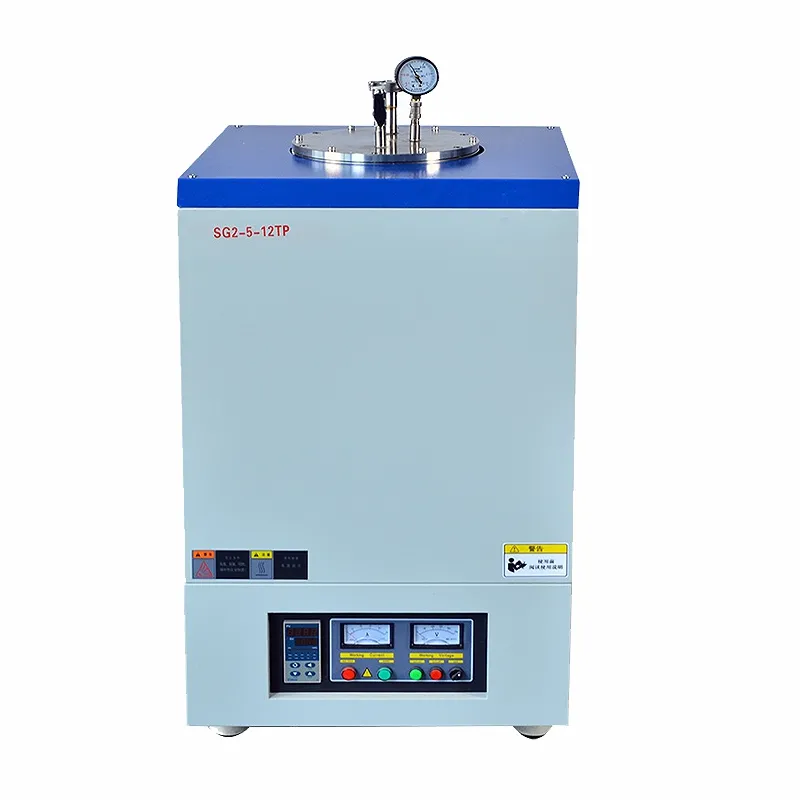

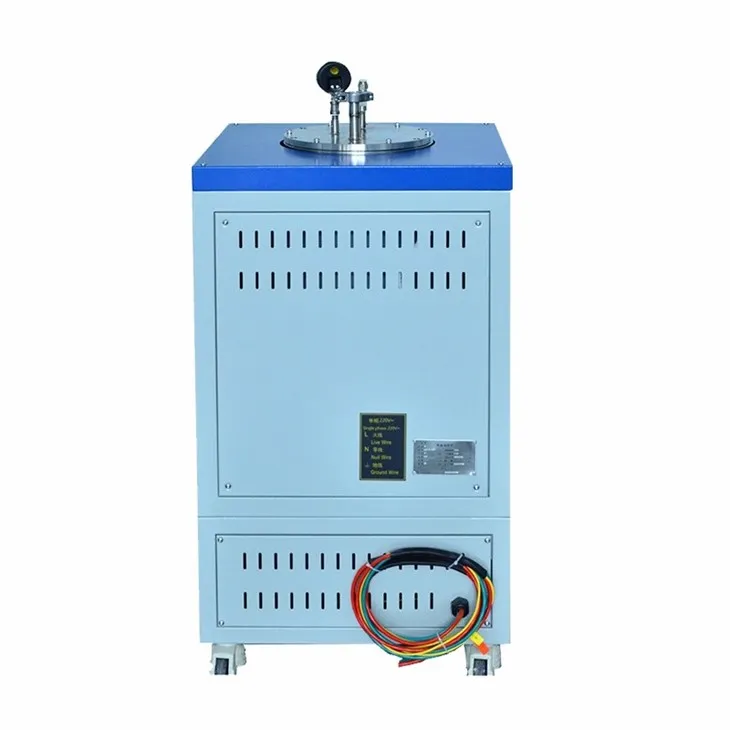

Detail picture
Application
High vacuum Pit furnace are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges. , such as sintering , annealing, tempering, quenching and other processes.
Warm reminder
The internal insulation material of the equipment is alumina ceramic fiber. The sample can be directly placed in the furnace, or quartz or stainless steel crucibles can be used. For specific dimensions and requirements, please contact the sales personnel.
Welcome OEM/ODM.
