- Universities & research labs: powder calcination, annealing, ashing, material synthesis
- Advanced materials: ceramics, cathode materials, catalyst sintering
- Metallurgy: precious & non-ferrous metal smelting, alloy R&D, powder metallurgy
- Chemical industry: high-temperature reaction, thermal decomposition of raw materials
- Quality testing: thermal performance analysis of samples & refractory materials
- Small-batch production: ceramic firing, glass melting, metal tempering
|
Model |
SG2-4-12TP |
|
Dimensions: Internal D x W x H (mm) |
φ160*H300mm |
|
Max.temperature(℃) |
1200℃ |
|
Continuous working temperature |
1100℃ |
|
Voltage(V) |
110 or 220V, single phase, 4KW |
|
Thermocouple type |
K |
|
Heating element |
HRE Alloy resistance wire |
|
Temp.Precision |
±1℃ |
|
Heating rate |
0-30℃/min free adjustment |
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
|
Furnace structure |
Double-layer air-cooled structure, surface temperature is less than 60℃ |
|
Temperature controller |
Intelligent PID temperature control instrument, 30 program segments, SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
|
Support OEM/ODM |
|
Standard Accessories
Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools |
Optional
Different chamber size for your choose;
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
Chimney, door opening method, observation window, etc. are optional.

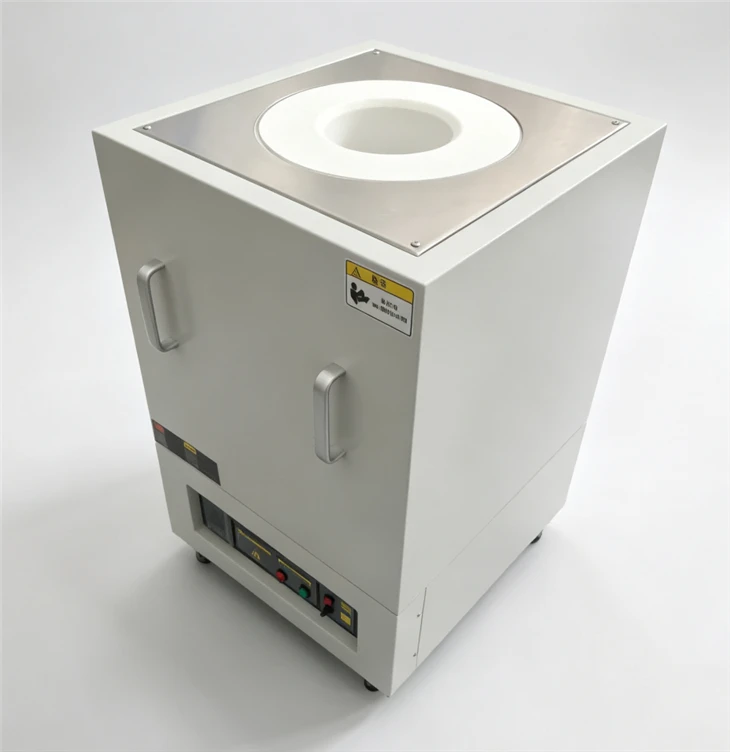

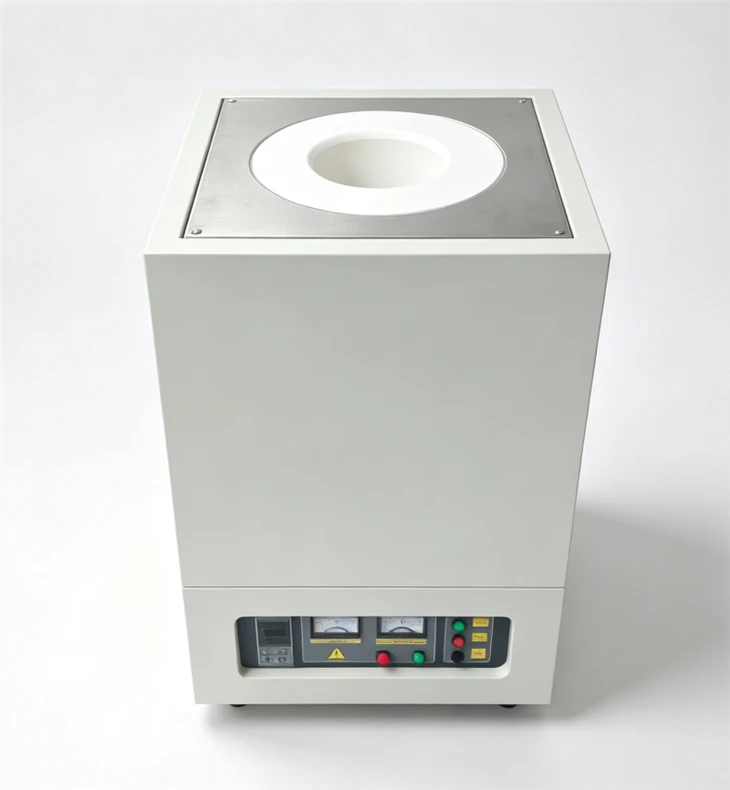

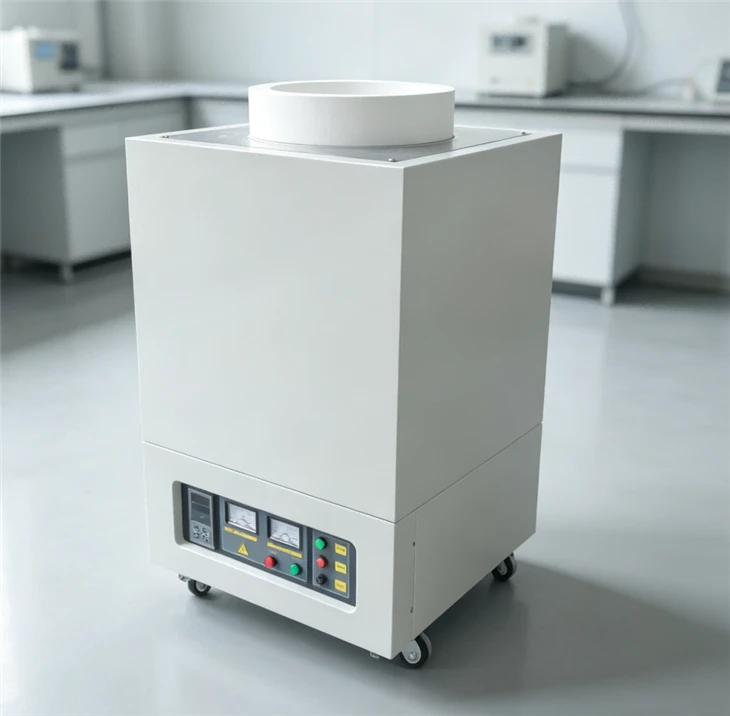

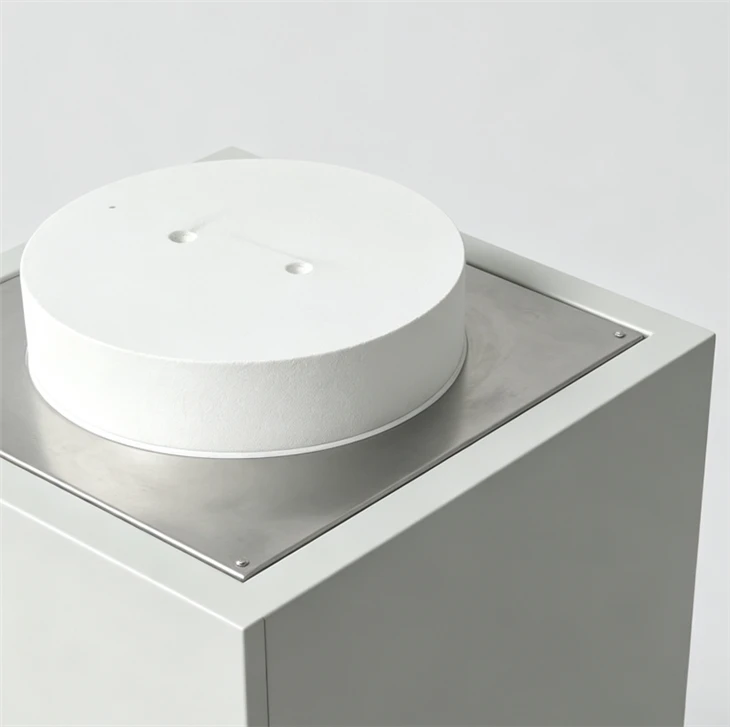

Detail picture
Application
High vacuum Pit furnace are widely used in scientific research and small batch production in industrial and mining enterprises, as well as in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, sintering, etc. involved in scientific research and teaching in universities and colleges. , such as sintering , annealing, tempering, quenching and other processes.
Warm reminder
The internal insulation material of the equipment is alumina ceramic fiber. The sample can be directly placed in the furnace, or quartz or stainless steel crucibles can be used. For specific dimensions and requirements, please contact the sales personnel.
Welcome OEM/ODM.
