Products Description
Atmosphere box furnace can pass hydrogen, argon, nitrogen, oxygen, carbon monoxide, ammonia decomposition gas and other gases, and can use vacuum pump to pre-evacuate and remove the gas in the furnace. The furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, energy saving, etc. It is an ideal product for colleges and universities, scientific research institutes, industrial and mining enterprises to do atmosphere protection sintering and atmosphere reduction. At present, there are three main temperature ranges of box atmosphere furnaces, 1100 degrees Celsius, 1300 degrees Celsius and 1600 degrees Celsius.
Atmosphere furnaces can be used for heat treatment of electronic components, new materials and powder materials under vacuum or atmosphere conditions. They are also used for pre-sintering, sintering, brazing and other processes of electronic ceramic products in metallurgy, machinery, light industry, commodity inspection, colleges and universities, scientific research departments, industrial and mining enterprises.
Technical parameters

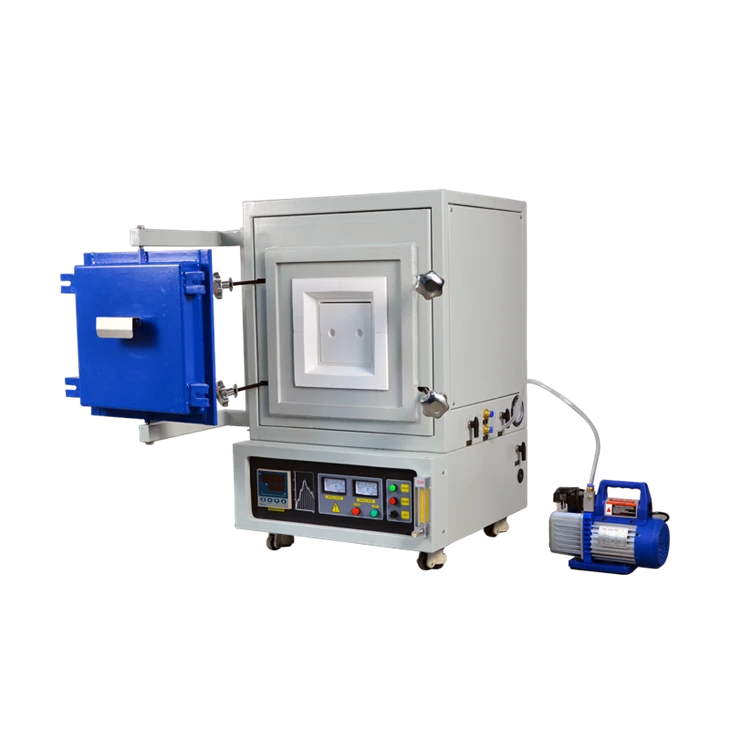

Atmosphere box furnace
| Model | SA2-2-14TP | SA2-4-14TP | SA2-9-14TP | SA2-16-14TP |
|
Max.design(℃) |
1400 | 1400 | 1400 | 1400 |
|
Internal dimensions: D x W x H (mm) |
100*100*100 | 200*150*150 | 300*200*200 | 400*300*300 |
| Power(KW) | 2KW | 4KW | 9KW | 16KW |
| Voltage(V) | 220V 1P | 220V 1P | 220V 1P | 380V 2P |
| Volume (litres) | 1 | 4.5 | 12 | 16 |
|
External dimensions: Dx W x H (mm) |
490*547*769 | 630*605*900 | 740*645*980 | 875*805*1110 |
| Thermocouple type | S | |||
| Max.vacuum | -0.1Mpa | |||
| Heating rate | 0-15C/min | |||
| Heating element | High quality Sic heater | |||
| Temp.Precision | ±1℃ | |||
| Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
| Temperature controller | Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling | |||
| Atmosphere | Various inert gases such as oxygen, carbon monoxide, nitrogen, argon, etc. | |||
| Gas Control | The air inlet can be equipped with one or more air inlets, each of which is equipped with a ball valve and connected to a vacuum gauge. The air outlet is connected to an outlet hole, and all holes are equipped with ball valves. The maximum positive pressure in the furnace does not exceed 0.02Mpa | |||
| Vacuum system | Single-stage rotary vane pump Maximum limit 5Pa Optional double-stage rotary vane pump |
|||
| Sealing method | The furnace door adopts the overall surface grinding and milling, and the silicone strip is embedded in the seal, which has strong sealing performance and is easy to open and close. | |||
|
Standard Accessories vacuum pump|Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | |
||||
| Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
| Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
| Optional:
Different chamber size for your choose; 50 segment program for choose LCD touch screen control for choose RS485/USB port to connect computer for choose. 1200C/1700C/1800C Working temeprature,Max.vacuum for choose |
||||
Product details
Atmosphere box furnace
The hand wheel nut rotates, the furnace door seals more firmly
High quality heating element with polycrystalline insulation chamber furnace
Equipped with vacuum port, air inlet, pressure regulating valve, pressure gauge and other configurations to achieve multi-function
LCD highly intelligent instrument,30-segment program with PID control
Float flow meter (30-300ml/min)
Control gas flow rate
Vacuum system
Can meet the normal vacuum state in the furnace
Product Application
Be used in a wide range of Atmosphere box furnace
Laboratory
Metal
Ceramic
Electronics
Chemical
Glass
