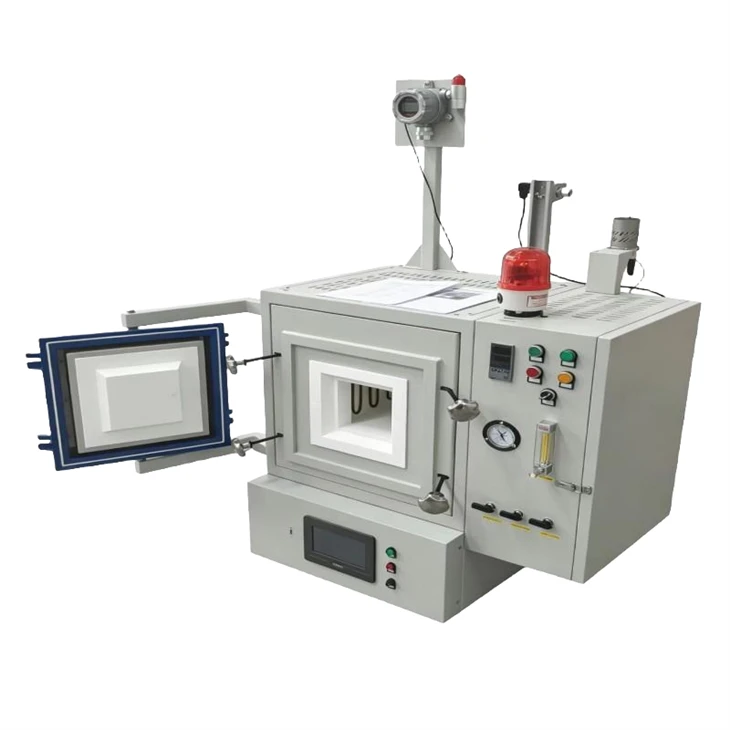

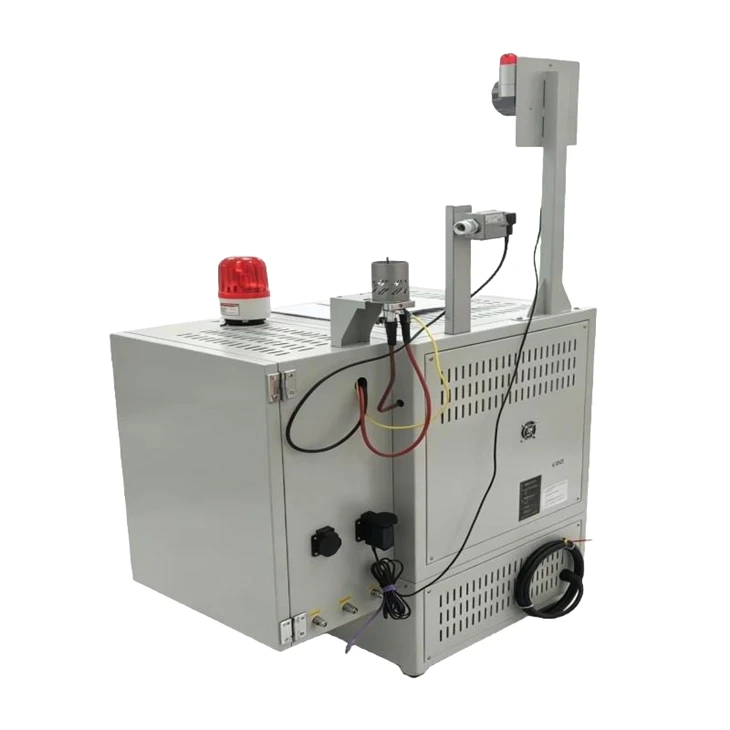

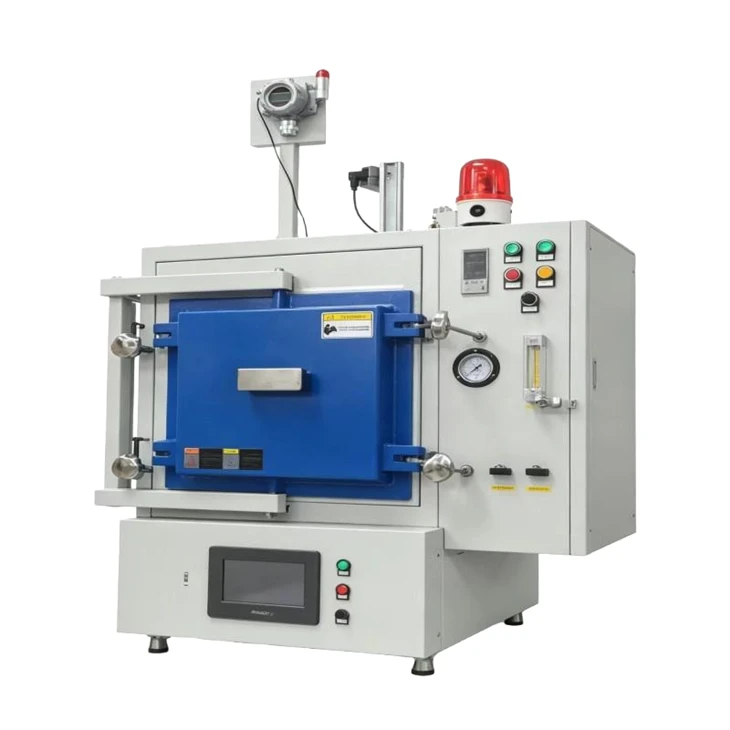

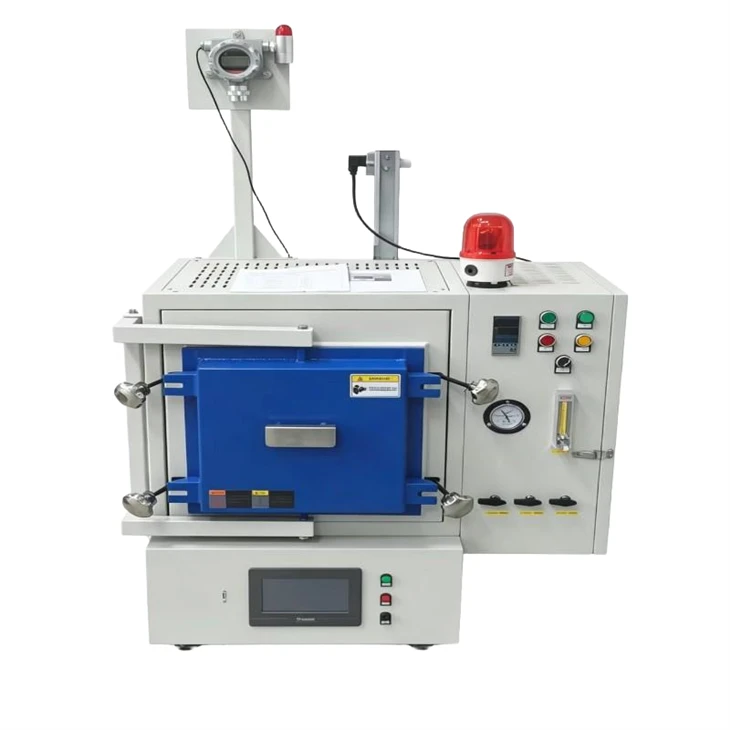

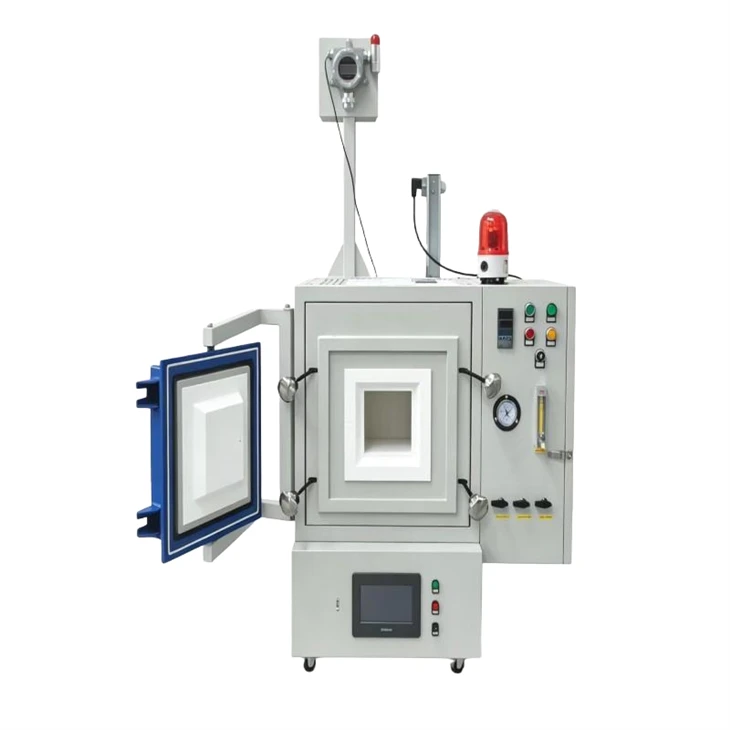

Products Description

Hydrogen annealing furnace is specially designed for sintering or annealing materials in hydrogen or inert gas environment. Its maximum temperature can reach 1600°C at inert atmosphere or air,reach 1450℃ at hydrogen environment. It uses advanced new thermal resistance alumina fiber as the furnacechamber material and reliable MoSi2 rod as heating elements. For materials that need to be sintered in an inert gas or reducing gas environment (such as fluorescent materials, titanium alloys, etc.), this electric furnace is a very good choice.

Feature of Hydrogen Atmosphere annealing Furnace

1. Multi-purpose atmosphere furnace filling (including hydrogen)

2. The maximum temperature can reach 1600℃

3. Hydrogen ignition + hydrogen detection + explosion-proof device,Ensure safe use

4. Available from 1L to 36L,or customized

Specification data-sheet(Customization support)

Max/Continuous temperature	*Volume(Inner Size/DWH)*	Power	Inert gas in	Vacuum pump	Heating element	Thermocouple
1200/1100℃	1L(100100100)	220V 1P 1KW	Available	Included	HRE resistance wire	K
	4.5L(200150150)	220V 1P 2KW
	12L(300200200)	220V 1P 6KW
	36L(400300300)	380V 3P 9KW
1400/1300℃	1L(100100100)	220V 1P 2KW	Available	Included	SiC heating element	S
	4.5L(200150150)	220V 1P 4KW
	12L(300200200)	220V 1P 9KW
	36L(400300300)	380V 3P 16KW
1700/1600℃	1L(100100100)	220V 1P 2KW	Available	Included	MoSi2 heating element	B
	4.5L(200150150)	220V 1P 4KW
	12L(300200200)	220V 1P 9KW
	36L(400300300)	380V 3P 16KW
Hydrogen Atmosphere annealing Furnace for common features
Temperature controller	Yudian 518P temperature controller, PID controller, 30segments temperature-time programs, Over heated protection, Broken thermocouple alarm, over upper temperature limit protection, data protection when power off accidentally
Hydrogen safety system	Ignition device + explosion-proof device + detection device + alarm system,Auto‑cut‑off gas inlet on overpressure (H₂ atmosphere),Auto‑cut‑off pressure relief on overpressure (inert atmosphere),Ignition failure alarm
Sealing	The furnace door is made of integral surface grinding and milling, and the silicone strip is embedded and sealed, and the hand wheel is locked, which has good sealing
Chamber	International advanced latest Al2O3 ceramic fiber material , high temperature-resistance, thermal shock resistance, energy saving, save 60% to 80% energy than traditional firebrick material, lighter weight, no crack, no contamination
Heating rate	≤30℃/minutes
Furnace structure	Double layer housing structure design to make sure a good effect of temperature uniformity and safety of user's machine using, also with the forced air cooling on bottom to confirm the electric safety
Applied atmosphere	Ar, N2, He, H2., etc(non-hydrogen environment, hydrogen environment ≤1450℃)
Vacuum pressure gauge	-0.1Mpa to 0.1Mpa( Inner positive pressure should be ≤0.02Mpa to make sure the safety)
Max vacuum degree	-0.1Mpa
Vacuum pump	Rotary vane vacuum pump
Float flow-meters	High quality float flow meter, 60~600ml/minutes or as client's request
Wheels	Convenient, movable, flexible universal wheels with brake function, included
Certification	CE,ISO9001:2015 certified

Product demonstration (Basic version+Extra 1set of H2 safety system)


HRE resistance wire	SiC heating element	MoSi2 heating element

Quantities based on chamber size choose

Ignition control and alarm	Burning state	H2 inspector

Precision controller & circuit indicator	Gas control channel & float flowmeter	Rotary vane vacuum pump

The influence of different atmospheres on component operating temperature

Atmosphere	1700 type	1800 type	1850 type
Air	1700	1800	1830
N2,Nitrogen	1600	1700	1700
Ar Ne Argon, Helium	1600	1700	1700
80℃ Dry Hydrogen (dew point)	1150	1150	1150
20℃ Wet Hydrogen (dew point)	1450	1450	1450
Mix(e.g. 10% CO2, 50% CO, 15%H2)	1600	1700	1700
Mix(e.g. 40% CO2, 20% CO)	1400	1450	1450
Mix(e.g. 40% CO2, 20% CO(8%H2)	1400	1450	1450
