H2 tube Furnace Description
The 1100℃ hydrogen tubular furnace developed and manufactured by XINKYO features hydrogen reduction, a high temperature of 1100℃, multi-stage temperature-time programmable control, precise control, automatic gas inlet cut-off, automatic ignition, overpressure alarm, leakage alarm, and other safety measures. It supports the following applications:
1.Bright annealing of metallic materials, such as stainless steel/alloy steel (304/316L, high-nickel alloys, etc.)
2.Reduction and purification of metal oxides, such as reduction of refractory metals: tungsten oxide (WO₃), molybdenum oxide (MoO₃), iron oxide (Fe₂O₃), etc.
3.Reduction of catalyst precursors: such as PtO₂, NiO, Co₃O₄, etc.
4.Sintering of magnetic material powders: such as iron-silicon-aluminum, iron-nickel alloy powders
5.Modification of special materials, such as the reduction of TiO₂ to prepare black titanium (TiOx), followed by high-temperature treatment in a hydrogen atmosphere
6.Preparation of intermetallic compounds: such as TiAl, NiAl, etc.
7.Synthesis and processing of nanomaterials, such as carbon material preparation: carbon nanotubes and graphene grown on catalyst surfaces as the core heating equipment in CVD (chemical vapor deposition) systems
8.Preparation of nanometals/oxides: decomposition of metal precursors in a hydrogen atmosphere
9.Semiconductor and electronic material processing, such as the processing of GaAs, GaN
10.Hydrogen annealing of compound semiconductor substrates;
11.Pre-packaging treatment of electronic components: High-temperature hydrogen treatment of metal leads and ceramic substrates.

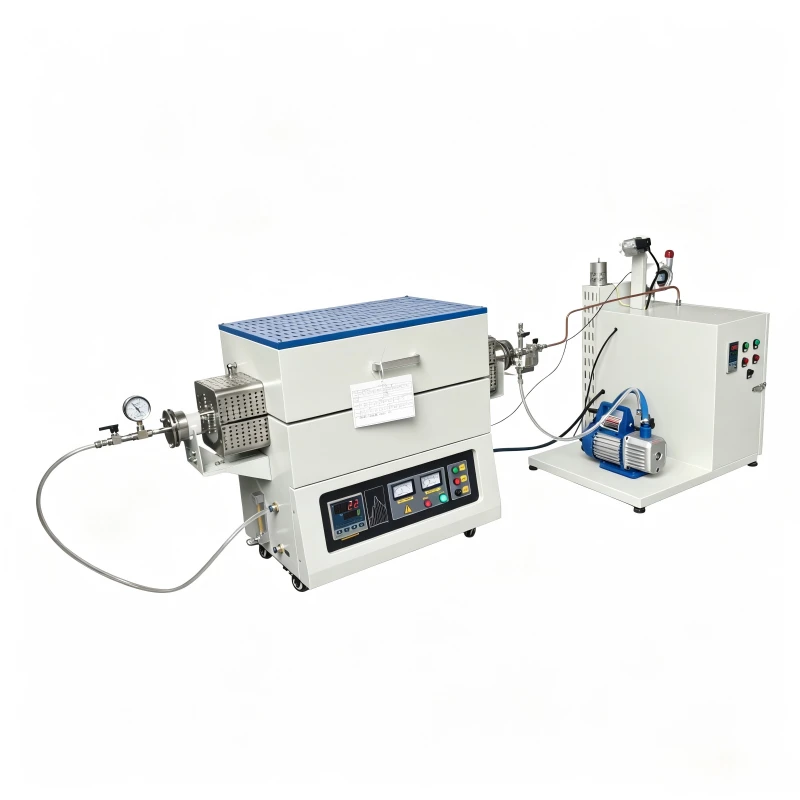

Overlook of Hydrogen tube furnace
Technical parameter of H2 tube furnace
| Temperature | 1200/1100℃ |
| Heating zone | Customzied(Diameter of tube and Heating Lenth clarification is a must for loading samples) |
| Tube material | High purity quartz tube |
| Applied atmosphere | H2,N2,Ar.,etc support |
| Door open | Spit door |
| H2 safety system | 1.Automatic cut off when over pressure 2.Automatic ignition when reach default value 3.Alarm when leakage 4.Automatic detection |
| Refractory chamber | 1430℃ Al2O3 ceramic fiber board with embeded HRE resistance wire heater |
| Temperature controller | Yudian 518P,PID and auto-tuning support,30segments temperature-time programmable |
| Control accuracy | ±1℃ |
| Thermocouple | K type |
| Furnace body | Double layers housing with forced air cooling |
| Convenience | Voltmeter and Ammeter included for easy troubleshooting,pressure digital display visualization,universal wheels with brake function included |
| Vacuum pump | Rotary vane vacuum pump included |
| Max vacuum | -0.1Mpa(positive pressure≤0.02Mpa) |
| Voltage | 110V~600V customized support(the buyer need to clarify) |
| Warranty | 1year warranty with lifetime support(excluding consumable parts like heater,tube,O ring) |
| Certification | CE,ISO9001:2015,SGS,National High Tech Enterprise |
