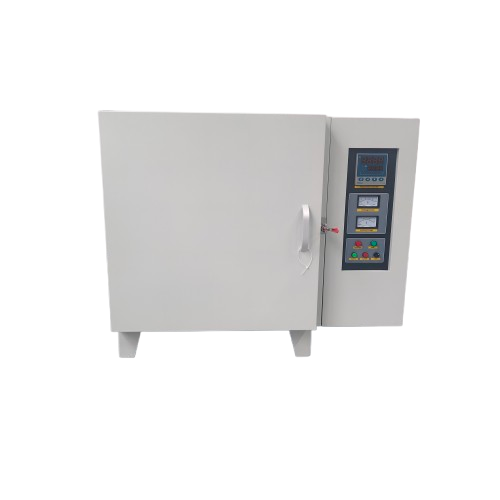

Products Description of 1400C muffle Furnace

1400°C The new desktop muffle furnace is a 45 litre (internal dimensions D500*W300*H300mm) with high precision control. It uses silicon carbon rod heating element and 1600 type new alumina ceramic fibre refractory chamber to achieve excellent heat preservation. Domestic top Yudian brand temperature controller realizes PID and 30 segments of temperature time programmable, precision ±1℃, applied in the field of material science and research, chemistry and chemical analysis, metallurgy and manufacturing, ceramics and electronics industry, environment and energy, quality control and so on, it is a good assistant for scientific research colleges and factories.

Features of 1400C muffle furnace

● Max temperature RT～1400℃

● 1400 Type SiC heating element, heating on both sides

● 30 segments programmable with PID control

● Over-temperature protection

● Voltmeter and Ammeter included for easy troubleshooting

● Desktop placement,user friendly

● Any size customization support, customer-oriented

Model	SX2-2-14TP	SX2-4-14TP	SX2-9-14TP	SX2-16-14TP
Dimensions: Internal D x W x H (mm)	100100100	200150150	300200200	400300300
Max.temperature(℃)	1400	1400	1400	1400
Working temperature(℃)	0-1300
Volume (litres)	1	4.5	12	36
Power(KW)	2	4	9	16
Voltage(V)	220 1P	220 1P	380 2P	380 2P
Thermocouple type	S type
Heating element	SiC heating element
Temp.Precision	±1℃
Heating rate	0-20℃/min programmable
Chamber material	1600C type Al2O3 ceramic fiber refractory chamber
Furnace structure	Double layers structure with forced air cooling fans, surface temperature is less than RT+20℃
Certification: CE, ISO900:2015, SGS ect, more than 30 patent certifications
Warranty: One year warranty with lifetime technical support(excluding consumable accessory)
Support OEM/ODM
