Products Description
Benchtop muffle furnace 1200c are an ideal tool for materials heat treatment in laboratory daily use,the max.temperature can arrive 1200℃,standard 12L to choose,30 segment program with PID control. It is widely used in materials research and industrial manufacturing.
Benchtop muffle furnace 1200c is a special equipment developed specifically for sintering and melting analysis of metals, non-metals and other compound materials.
Feature
● Max temperature RT～1200℃
● Volume 1～1000L,support customized.
● High quality Fe-Cr-Al-Mo resistance wire,Heating on three sides, good furnace temperature uniformity
● Yudian temperature controller,30 segments PID control
●Double-layer air cooling, surface temperature is less than 60 degrees
|
Model |
SX2-1-12TP |
SX2-2-12TP |
SX2-3-12TP |
SX2-6-12TP |
SX2-9-12TP |
|
Dimensions: Internal D x W x H (mm) |
100*100*100 |
200*150*150 |
300*200*2*120 |
300*200*200 |
400*300*300 |
|
Dimensions: External D x W x H (mm) |
425*320*568 |
570*470*715 |
670*530*731 |
670*530*811 |
770*620*940 |
|
Max.temperature(℃) |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Volume (litres) |
1 |
4.5 |
7.2 |
12 |
36 |
|
Power(KW) |
1 |
2 |
3 |
6 |
9 |
|
Voltage(V) |
220 1P |
220 1P |
220 1P |
220 1P |
380 3P |
|
Thermocouple type |
K |
||||
|
Heating element |
HRE Alloy resistance wire |
||||
|
Temp.Precision |
±1℃ |
||||
|
Heating rate |
0-30℃/min free adjustment |
||||
|
Chamber material |
Using advanced high-quality alumina microcrystalline fiber material |
||||
|
Temperature controller |
Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling |
||||
|
Certification: CE,ISO,SGS ect, more than 30 patent certifications |
|||||
|
Warranty: One-year warranty (excluding wearing parts) and long-term technical support |
|||||
|
Support OEM/ODM |
|||||
Standard Accessories
Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools |
Optional
Different chamber size for your choose;
50 segment program for choose
LCD touch screen control for choose
RS485/USB port to connect computer for choose.
Chimney, door opening method, air intake hole,observation window, etc. are optional.

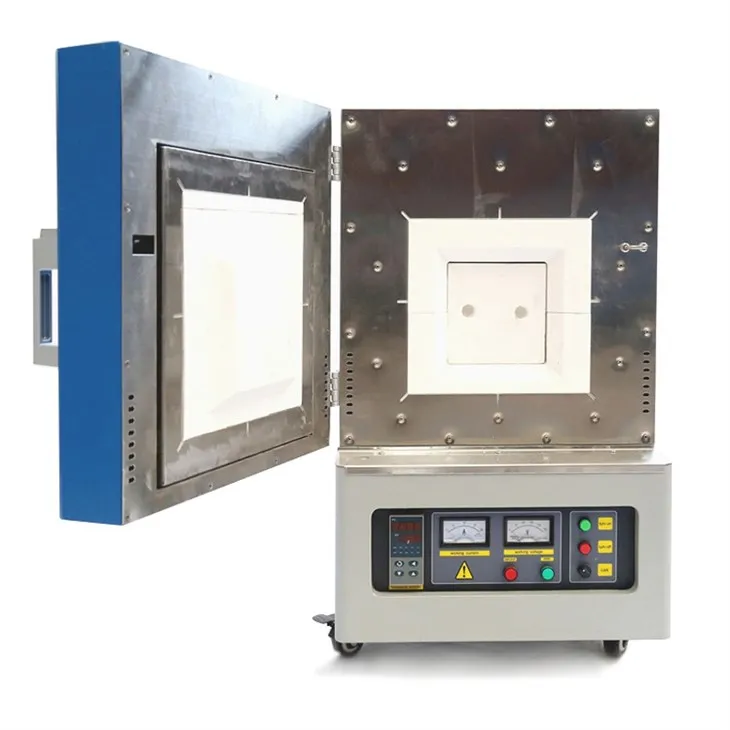

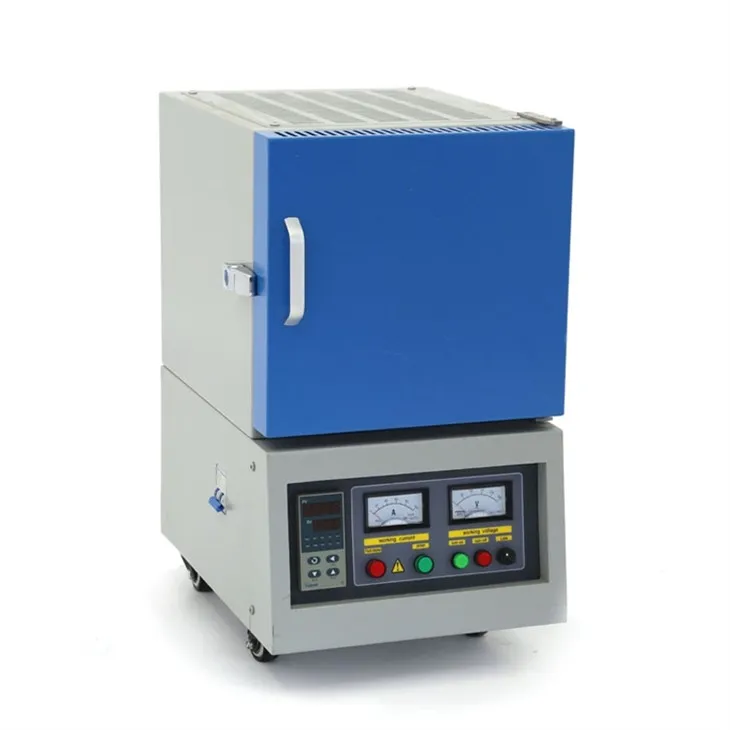

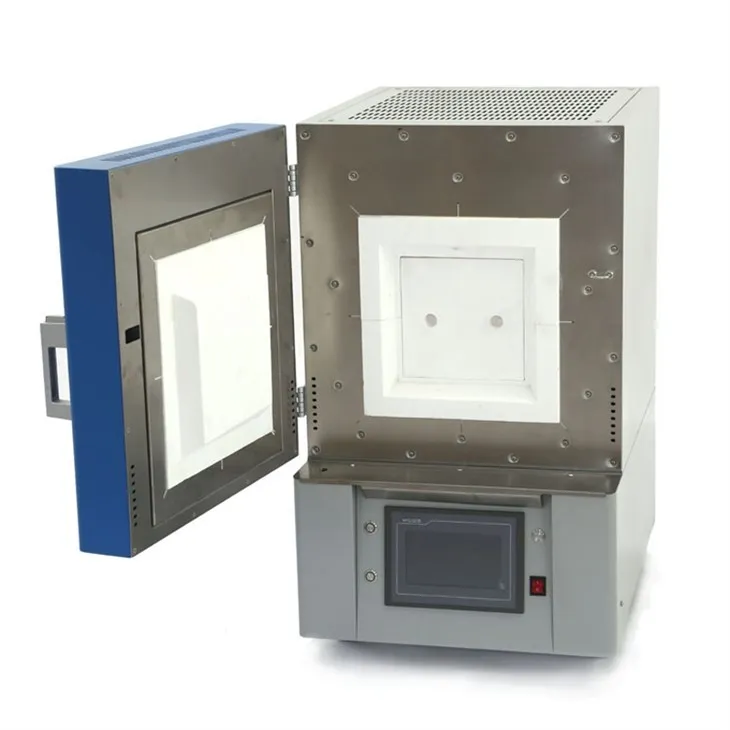

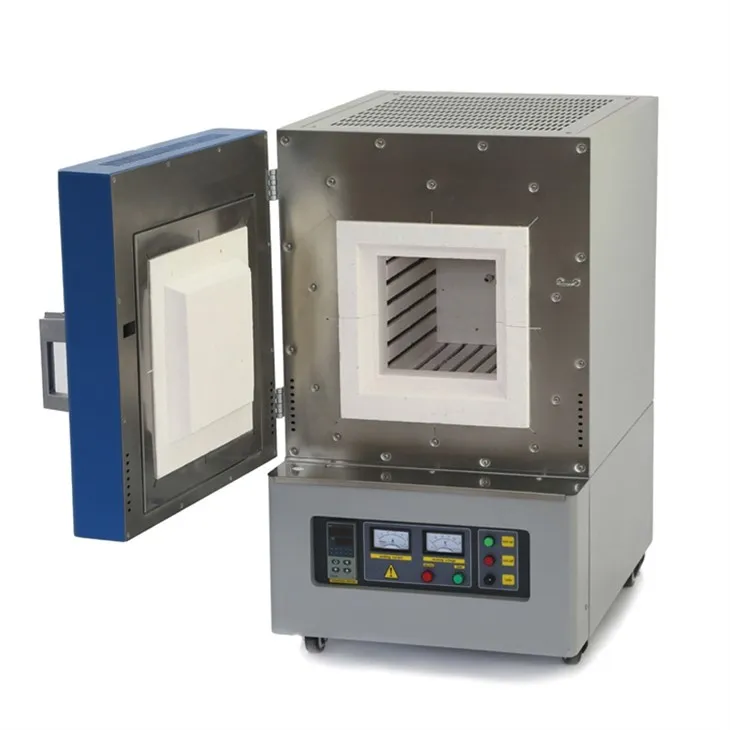

Detail picture for Benchtop muffle furnace 1200c
|
|
|
|
|
Spring-type door handle lock, easy to open and close |
High quality heating element with polycrystalline insulation chamber furnace |
High quality heat resistant fire blocking bricks |
|
|
|
|
|
LCD highly intelligent instrument,30-segment program with PID control |
Multifunctional and complete control panel, easy to use and operate |
High-quality wear-resistant Fuma wheels, good load-bearing |
CErtificate
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.
